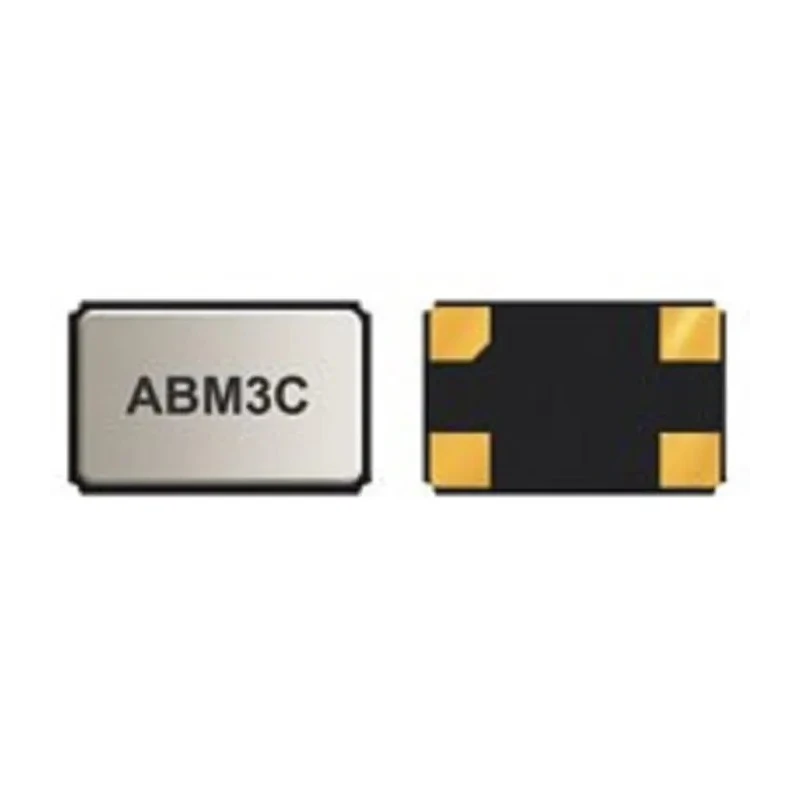

Abracon 14.7456 MHz Crystal Unit Surface Mount 4-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ±50 ppm ABM3C-14.7456MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3C-14.7456MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3C |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 14.7456MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- This crystal unit operates at a standard frequency of 14.7456 MHz.
- It features a surface mount package type with 4 pins for easy PCB integration.
- The device dimensions are 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
- Operating temperature ranges from -10°C to 70°C, ensuring reliable performance.
- It has an equivalent series resistance (ESR) of 60 ohms for stable oscillation.
- The load capacitance is specified at 18 pF for optimal circuit matching.
- This product is RoHS compliant and offered in tape and reel packaging for automated assembly.
- It belongs to the ABM3C series with no automotive standards certification.
Product Description
Abracon ABM3C-14.7456MHZ-D4Y-T is a precision 14.7456 MHz crystal unit designed for surface mount applications with a 4-pin configuration. It provides ±50 ppm frequency tolerance, suitable for high-density electronic environments including modems, communication equipment, test devices, PMCIA modules, and wireless applications.
The crystal unit has a compact form factor with dimensions measuring 5 mm in length, 3.2 mm in width, and a low profile height of 1.3 mm, making it ideal for thin equipment designs. It operates reliably within a temperature range of -10°C to 70°C, ensuring durability across standard industrial environments.
The equivalent series resistance (ESR) of 60 ohms and a load capacitance of 18 pF enable precise frequency control and stability. RoHS compliance guarantees the product meets modern environmental standards. This crystal unit is supplied in tape and reel format, facilitating efficient automated PCB assembly processes.
Applications for this crystal unit include industrial electronics, communication systems, embedded devices, wireless modules, and laboratory instrumentation where stable oscillator frequencies are essential.
Engineering and manufacturing teams will appreciate its rugged surface mount design and tight frequency tolerance for dependable performance across a broad range of commercial and industrial tasks.
This crystal unit operates at a standard frequency of 14.7456 MHz. It features a surface mount package type with 4 pins for easy PCB integration. Device dimensions are 5 mm length, 3.2 mm width, and 1.3 mm height. Operating temperature range is -10°C to 70°C.
The equivalent series resistance is 60 ohms for stable oscillation. Load capacitance is 18 pF for optimal circuit match. RoHS compliant and supplied in tape and reel packaging. Suitable for high-density electronic and wireless communication applications.
Explore a wide selection of Abracon Crystal Units and electronic components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crystal unit operates at a standard frequency of 14.7456 MHz.
The dimensions of this model are 5 mm in length, 3.2 mm in width, and 1.3 mm in height.
It operates within a temperature range of -10°C to 70°C.
The equivalent series resistance (ESR) is 60 ohms, which contributes to stable oscillation.
The load capacitance is specified at 18 pF for optimal circuit matching.
This model features a 4-pin configuration for easy PCB integration.
It uses a surface mount package type, suitable for high-density electronic environments.
It is supplied in tape and reel packaging, facilitating automated assembly.
Yes, this product is RoHS compliant, meeting modern environmental standards.
This crystal unit is suitable for applications in industrial electronics, communication systems, and wireless modules.
It belongs to the ABM3C series, which is designed for precision frequency control.
The country of origin for this crystal unit is India.
