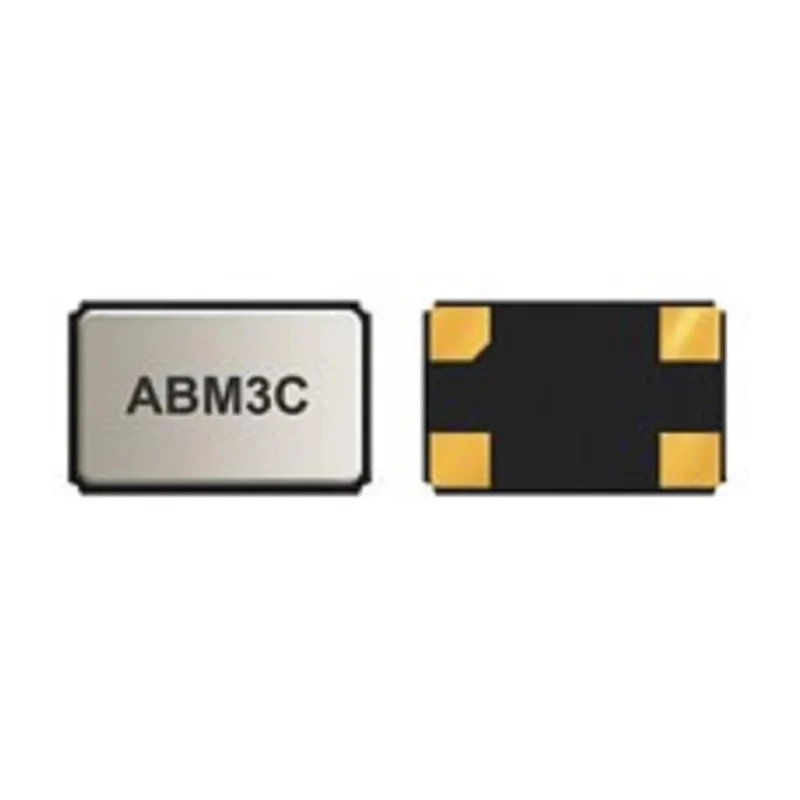

Abracon 14.7456 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3C-14.7456MHZ-D4Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3C-14.7456MHZ-D4Y-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3C |
| Maximum Operating Temperature | 70°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 14.7456MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- This crystal unit operates at 14.7456 MHz with ±50 ppm frequency tolerance.
- It features a surface mount package with 4 pins, ideal for compact PCB assembly.
- Designed for operating temperatures from -10°C to 70°C suitable for standard industrial environments.
- Has a load capacitance of 18 pF and a series resistance of 60 Ω for stable oscillation.
- Complies with RoHS standards ensuring safe environmental usage.
- Supplied in tape and reel packaging, facilitating automated manufacturing insertion.
- Suitable for telecommunications, modems, wireless, and test equipment applications.
Product Description
Abracon ABM3C-14.7456MHZ-D4Y-T is a high precision 14.7456 MHz Crystal Unit designed for surface mount applications requiring tight frequency stability. With ±50 ppm frequency tolerance, this 4-pin crystal unit is suitable for high density PCBs and compact electronic assemblies.
The crystal unit measures 5 mm in length, 3.2 mm in width, and stands 1.3 mm tall, making it optimal for space-constrained designs. It offers a load capacitance of 18 pF and a maximum series resistance (ESR) of 60 Ω, ensuring reliable signal integrity in communications and test equipment.
This product is rated for a minimum operating temperature of -10°C and a maximum of 70°C, suitable for general industrial applications. Compliant with RoHS regulations, it supports environmentally friendly manufacturing processes.
Supplied in tape and reel packaging, the crystal unit is compatible with automated pick-and-place assembly lines, streamlining production workflows. It is widely used in modem designs, wireless devices, PMCIA cards, and other precision timing applications.
The ABM3C series by Abracon is known for its tight tolerance and frequency stability, enabling consistent and accurate oscillation frequencies required in demanding electronic circuits.
This crystal unit operates at 14.7456 MHz with ±50 ppm frequency tolerance. It features a surface mount package with 4 pins for easy PCB integration. Compact dimensions: 5 mm length, 3.2 mm width, 1.3 mm height. Load capacitance of 18 pF and series resistance of 60 Ω ensure stable oscillation.
Designed for operating temperatures ranging from -10°C to 70°C. RoHS compliant for safe and environmentally compliant use. Packaged in tape and reel format for automated manufacturing. Ideal for telecommunications, wireless applications, and test equipment.
This crystal unit is part of the Abracon ABM3C series, trusted in industrial, commercial, and communication electronics manufacturing. Browse more Crystal Units on EnvMart to find complementary components that fit your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency of 14.7456 MHz with a frequency tolerance of ±50 ppm.
It measures 5 mm in length, 3.2 mm in width, and has a height of 1.3 mm.
The load capacitance is 18 pF, which is essential for stable oscillation performance.
The maximum series resistance (ESR) is 60 Ω, ensuring reliable signal integrity.
It is designed for an operating temperature range from -10°C to 70°C, suitable for standard industrial environments.
It is supplied in tape and reel packaging, which facilitates automated manufacturing insertion.
This model features a surface mount design, making it suitable for compact PCB assemblies.
Yes, it complies with RoHS standards, ensuring safe environmental usage.
It is widely used in telecommunications, modems, wireless devices, and test equipment applications.
This model has 4 pins, allowing for easy integration into electronic circuits.
It is part of the Abracon ABM3C series, known for its tight tolerance and frequency stability.
The country of origin for this model is India.
