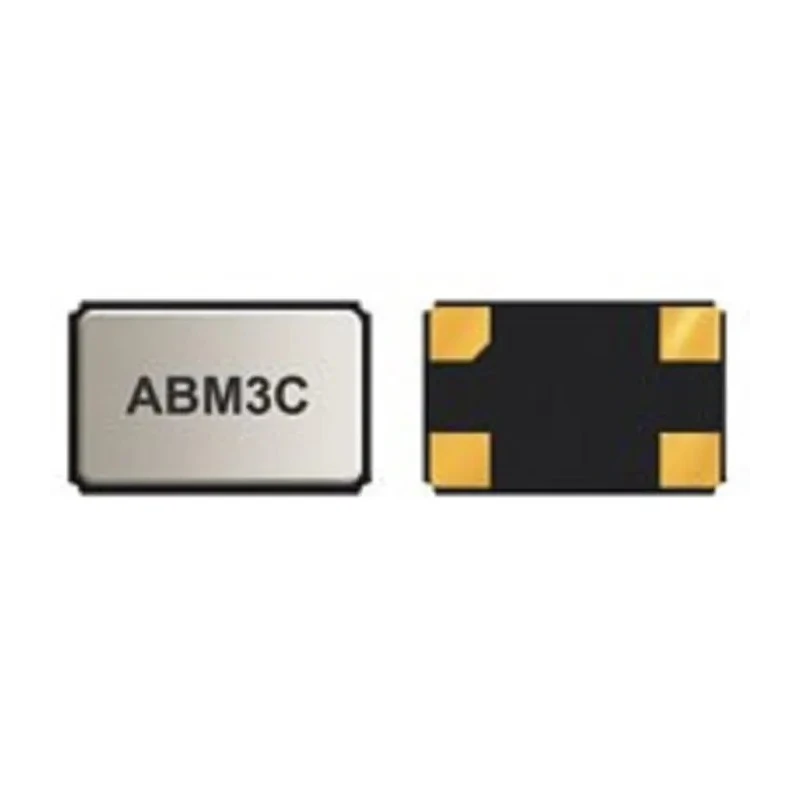

Abracon 12.288 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3C-12.288MHZ-D4Y-T

Abracon ABM3C-12.288MHZ-D4Y-T 12.288 MHz Crystal Unit is a surface mount crystal designed for high density applications including modems, wireless communications, and test equipment. Featuring a 4-pin tape and reel package, it provides precise frequency control with a tolerance of ±50 ppm and stability under varying environmental conditions.

This compact crystal unit measures 5 mm in length, 3.2 mm in width, and stands 1.3 mm tall, making it suitable for thin and space-constrained designs. The load capacitance is 18 pF, and the series resistance is rated at 60 Ω, ensuring compatibility with demanding electronic circuits.

The device operates over a range of temperatures from -10°C to 70°C, supporting robust performance in typical industrial and consumer electronic environments. It is compliant with RoHS standards, affirming its adherence to environmental regulations and manufacturing quality. Its tape and reel packaging enables seamless integration into automated manufacturing processes, improving production efficiency.

Typical industrial applications for this crystal unit include wireless communication modules, modems, PMCIA cards, and test instruments. The crystal's high precision and reliability contribute to stable oscillation frequencies essential for accurate signal processing and timing in these systems.

This crystal unit is tailored for surface mount assembly with a 4-pin configuration. Compact size: 5 mm length × 3.2 mm width × 1.3 mm height supports space-constrained circuit boards. Frequency tolerance and stability at ±50 ppm ensures precise electronic timing.

Load capacitance of 18 pF matches design specifications for resonator circuits. Series resistance of 60 Ω supports efficient oscillation in high density applications. Operating temperature range from -10°C to 70°C ensures device reliability.

RoHS compliance guarantees environmentally safe manufacture and usage. Packaged in tape and reel format to facilitate automated PCB mounting. Explore the comprehensive range of electronic components including Crystal Units on EnvMart for reliable sourcing and industrial-grade quality assurance.
