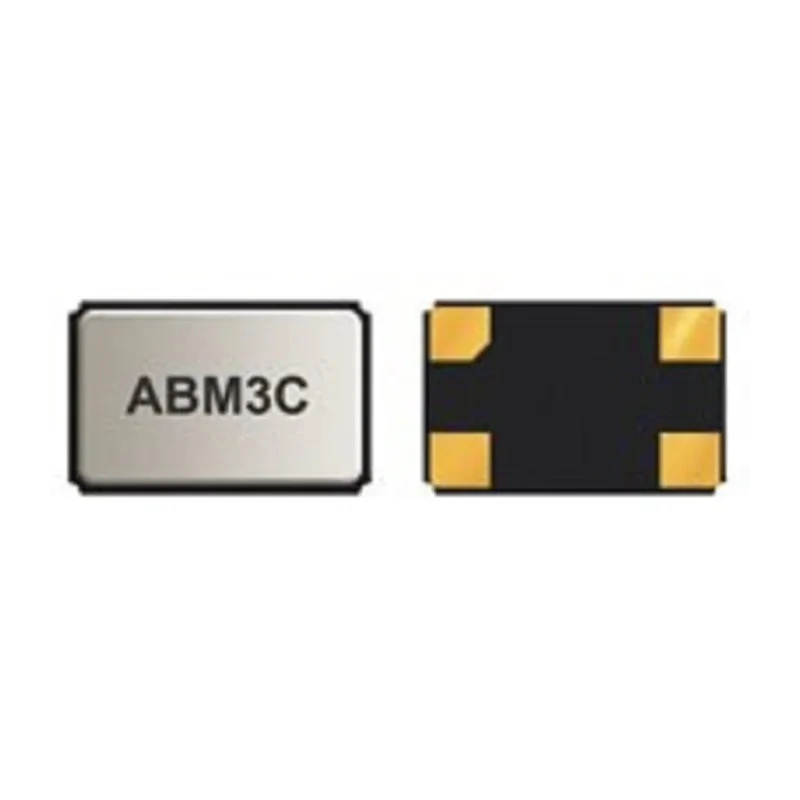

Abracon 11.0592 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3C-11.0592MHZ-D4Y-T

Abracon ABM3C-11.0592MHZ-D4Y-T is a high-quality 11.0592 MHz Crystal Unit designed for surface mount technology with a 4-pin configuration. This component is engineered for reliable frequency accuracy with a tolerance of ±50 ppm, making it suitable for precise oscillator applications in industrial, electronic, and communication devices.

Its compact physical dimensions of 5 mm length, 3.2 mm width, and 1.3 mm height enable integration into space-restricted circuit boards. The crystal unit supports a load capacitance of 18 pF and has a series resistance of 60 ohms, optimizing its electrical performance and stability under normal operating conditions.

This unit operates efficiently within a temperature range of -10°C to 70°C, which covers the requirements of most commercial electronic devices. Being RoHS compliant, it meets environmental standards, ensuring it can be used in green manufacturing processes.

Applications include use in high-density electronic equipment, modems, communication systems, wireless devices, and test equipment. Its surface mount package facilitates automated assembly processes and enhances production efficiency.

Standard frequency of 11.0592 MHz ensures accurate timing in circuits. Surface mount package type with 4-pin configuration for easy PCB integration. Frequency tolerance is ±50 ppm for stable performance. Compact dimensions: 5 mm length, 3.2 mm width, and 1.3 mm height suit space-constrained applications.

Load capacitance of 18 pF compatible with various oscillator circuits. Operating temperature range from -10°C to 70°C supports typical electronic environments. Series resistance of 60 ohms enhances signal quality and reduces energy loss.

RoHS compliant ensuring environmental safety and regulatory adherence. Ideal for high-density electronics, modems, communications, and wireless equipment.

Choose Abracon Crystal Units for reliable and precise frequency control in your electronic design projects. Browse more in our Electronics Components category at EnvMart for complementary parts and advanced components.
