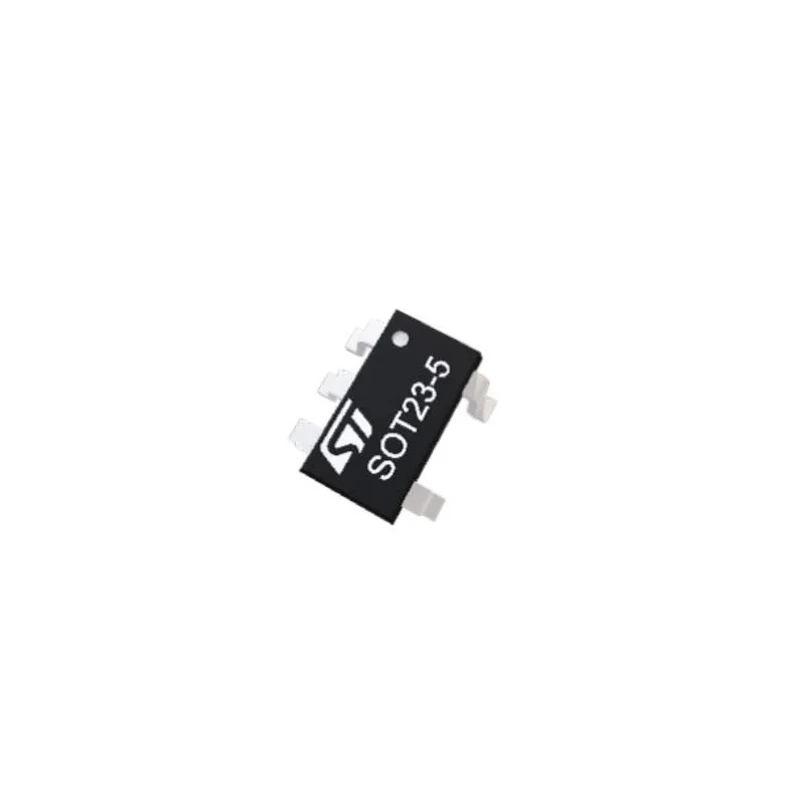

STMicroelectronics Operational Amplifier 50 MHz 5-Pin SOT-23 Surface Mount 2.2V-5.5V TSV791
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSV791 |
| Width | 1.75mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100, AEC-Q2 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.2V |
| GBP - Gain Bandwidth Product | 50MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 30V/μs |
| Input Offset Current | 20 pA |
Key Features
- High slew rate of 30 V/μs enables fast signal response.
- Rail-to-rail input and output stages support full dynamic range.
- Low input bias current of 75 pA ensures minimal signal distortion.
- Designed for single supply voltages ranging from 2.2 V to 5.5 V.
- Operates over an extended temperature range from -40°C to 125°C.
- Compact 3 mm by 1.75 mm by 1.45 mm SOT-23 package suitable for space-constrained designs.
- Input offset voltage ±700 μV for accurate amplification of small signals.
- Fully specified for load capacitance of 22 pF, ideal for A/D converter input buffering.
Product Description
The STMicroelectronics TSV791 is a high-performance operational amplifier designed for precise, low-side current measurement and signal conditioning. Featuring a gain bandwidth product of 50 MHz and a fast slew rate of 30 V/μs, this single-channel, 5-pin SOT-23 packaged IC supports rail-to-rail input and output stages, allowing full utilization of the supply voltage range from 2.2 V to 5.5 V.
Its low input bias current of 75 pA and minimal input offset voltage of ±700 μV enable accurate amplification of small amplitude signals, making it well-suited for sensitive measurement applications. The TSV791 operates reliably over a wide temperature range of -40°C to 125°C, meeting stringent automotive standards AEC-Q100 and AEC-Q2, and adheres to RoHS environmental compliance.
Compact in size with dimensions of approximately 3 mm length, 1.75 mm width, and 1.45 mm height, the SOT-23 surface mount package is ideal for dense PCB layouts in industrial, automotive, medical, and consumer electronic applications.
Additionally, this operational amplifier can drive capacitive loads up to 1 nF and is fully specified for loads of 22 pF, allowing effective use as an input buffer for analog-to-digital converters. Its wide supply range and low noise characteristics make it versatile for diverse electronics systems requiring precise signal conditioning.
High slew rate for responsive signal processing. Rail-to-rail input/output for maximum signal swing. Low input bias current and offset voltage for precision. Automotive qualified with extended temperature range. Compact surface mount footprint for efficient PCB design.
Supports capacitive loads enhancing ADC buffer performance. RoHS compliant ensuring environmental safety.
This STMicroelectronics TSV791 operational amplifier is suitable for industrial automation, automotive electronics, instrumentation, medical devices, and other precision electronic circuit applications. Explore further Operational Amplifiers and semiconductor products within EnvMart for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TSV791 is 50 MHz, allowing for high-speed signal processing.
The operational amplifier operates over an extended temperature range from -40°C to 125°C.
The dimensions of the SOT-23 package are approximately 3 mm in length, 1.75 mm in width, and 1.45 mm in height.
The maximum supply voltage for this operational amplifier is 5.5 V.
This model features a single channel design.
The slew rate of the TSV791 is 30 V/μs, enabling fast signal response.
The input bias current for the TSV791 is 75 pA, which helps minimize signal distortion.
Yes, the TSV791 adheres to RoHS environmental compliance standards.
This operational amplifier is qualified under automotive standards AEC-Q100 and AEC-Q2.
The input offset voltage for this model is ±700 μV, allowing for accurate amplification of small signals.
The TSV791 is suitable for applications in industrial automation, automotive electronics, instrumentation, and medical devices.
The operational amplifier is fully specified for load capacitance of 22 pF, making it ideal for A/D converter input buffering.
