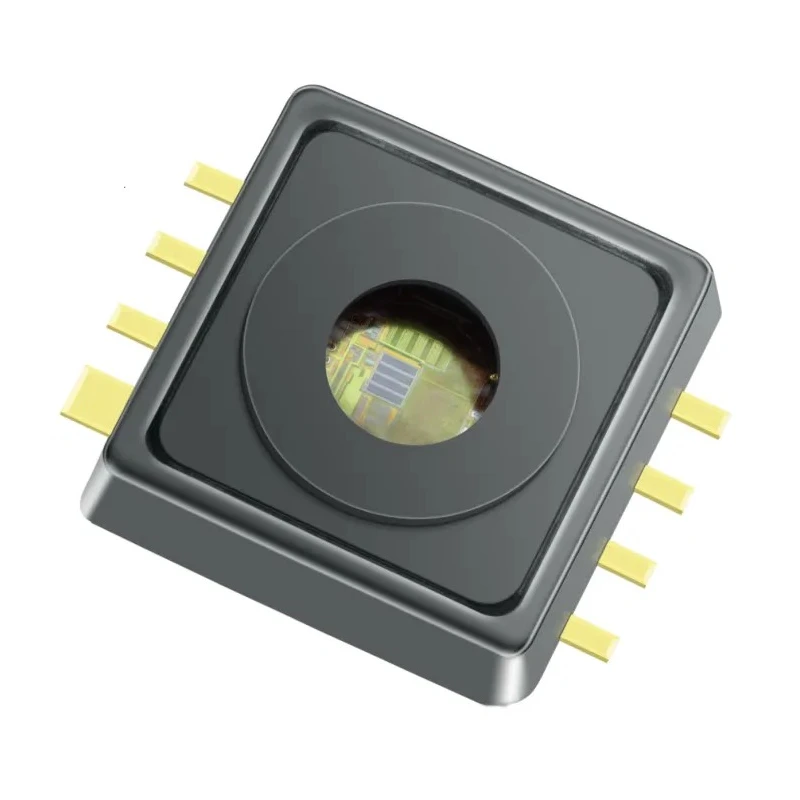

Infineon Analogue Absolute Pressure Sensor , 8-pin Surface Mount PG-DSOF-8, 4.5-5.5V, ±3.8 kPa Accuracy KP226E3408XTMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Analogue Absolute Pressure Sensor , 8-pin Surface Mount PG-DSOF-8, 4.5-5.5V, ±3.8 kPa Accuracy KP226E3408XTMA1

Name: Infineon Analogue Absolute Pressure Sensor , 8-pin Surface Mount PG-DSOF-8, 4.5-5.5V, ±3.8 kPa Accuracy KP226E3408XTMA1
Brand: Infineon
SKU: 177436
Price: 5.42 USD
Availability: InStock



Category Pressure Sensor ICs Brand Infineon Condition New

Specifications

Country of Origin	India
Accuracy	±3.8 kPa
Brand	Infineon
Height	2.8mm
Length	7mm
Model	KP226E3408XTMA1
Sensor Type	Absolute Pressure Sensor
Mount Type	Surface
Series	KP226E3408
Maximum Operating Temperature	140°C
Package Type	PG-DSOF-8
Minimum Operating Temperature	-40°C
Typical Sensitivity	11.2mV/kPa
Standards/Approvals	RoHS
Maximum Output Voltage	4.65V
Pin Count	8
Automotive Standard	AEC
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	4.5V
Minimum Output Voltage	350mV
Minimum Operating Pressure	15kPa
Maximum Overload Pressure	400kPa

Key Features

Operates with supply voltage from 4.5V to 5.5V.
Maximum operating temperature up to 140°C and minimum -40°C.
Maximum operating pressure of 400 kPa with 15 kPa minimum pressure.
Typical sensitivity of 11.2mV/kPa for precise pressure output.
8-pin PG-DSOF surface mount package for PCB integration.
Accuracy of ±3.8 kPa for reliable measurement.
Maximum output voltage at 4.65V and minimum at 350mV.
Compliant with automotive AEC standards.

Product Description

Infineon KP226E3408XTMA1 is an analogue absolute pressure sensor designed for high precision pressure measurement in automotive and industrial applications. Its 8-pin PG-DSOF-8 surface mount package allows easy integration onto PCB assemblies. The sensor operates over a voltage range of 4.5V to 5.5V and offers a maximum overload pressure of 400 kPa, providing robust performance in demanding environments.

With a typical sensitivity of 11.2mV/kPa and an accuracy of ±3.8 kPa, the KP226E3408XTMA1 offers reliable and accurate pressure sensing. It can operate in a wide temperature range from -40°C to 140°C, making it suitable for harsh automotive under-the-hood environments, as well as industrial and consumer devices requiring precise pressure monitoring.

This sensor ensures compatibility with automotive industry standards including AEC qualification, enhancing its reliability for engine control units (ECUs) and turbocharger pressure measurement. Its compact dimensions of 7mm in length and 2.8mm height, combined with the surface mount package, facilitate a small footprint on printed circuit boards.

The sensor operates between 4.5V and 5.5V supply voltages. Absolute pressure sensing with a range from 15 kPa minimum operating pressure up to 400 kPa maximum overload. Typical sensitivity of 11.2mV/kPa for precise analog output signal.

Package type PG-DSOF-8 with 8 pins suitable for surface mounting. Accuracy of ±3.8 kPa ensuring precise measurements. Wide temperature range from -40°C to 140°C for robust operation. Complies with RoHS environmental standards.

Designed to meet automotive AEC standards.

The Infineon KP226E3408XTMA1 sensor is ideal for automotive turbocharger pressure sensing, industrial pressure monitoring, and consumer device integration. Its high accuracy and reliability ensure enhanced system performance and safety. For engineers designing PCBs and mechanical housings, 3D models and footprints are available via DesignSpark software.

Choose this sensor for applications requiring a robust, high-accuracy analogue absolute pressure sensor with automotive quality standards. Explore our catalog for more Infineon sensor solutions and related electronic components.
