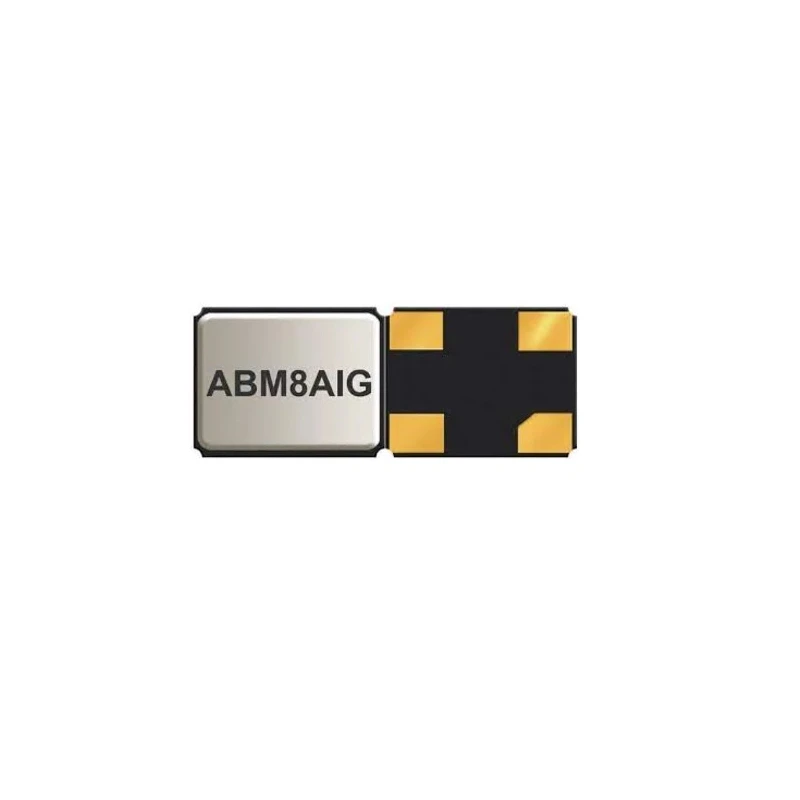

Abracon 14.7456 MHz Surface Mount Ceramic Package Crystal 4-Pin 3.2 mm x 2.5 mm x 0.8 mm ABM8AIG-14.7456MHZ-12-2Z-T3

The Abracon ABM8AIG-14.7456MHZ-12-2Z-T3 is a high-quality surface mount crystal unit operating at a standard frequency of 14.7456 MHz. It is housed in a hermetically seam sealed ceramic package specifically designed for industrial and automotive applications requiring precision and durability.

This crystal features a 4-pin layout with compact physical dimensions of 3.2 mm length, 2.5 mm width, and 0.8 mm height, making it ideal for space-constrained electronic designs. It offers a load capacitance of 12 pF and frequency stability within ±50 ppm, meeting the demanding specifications of infotainment systems, GPS navigation, ADAS, LiDAR, and other advanced automotive technologies.

Certified to the automotive standard AEC-Q200 and Automotive Grade 1, it supports operating temperatures between -40°C and +125°C, ensuring reliability under harsh environmental conditions. The series resistance is rated at 100 Ω, optimizing its performance for demanding circuit implementations.

The product is RoHS compliant and Pb-free, promoting environmental responsibility in manufacturing and final product assembly. It is supplied in tape and reel packaging, enabling seamless automated placement on PCB assembly lines.

Hermetically seam sealed ceramic package for enhanced reliability. 4 pins designed for surface mount applications. Compact dimensions: 3.2 mm length, 2.5 mm width, and 0.8 mm height. Load capacitance of 12 pF optimized for various electronic circuits.

Automotive grade AEC-Q200 compliant with extended operating temperature range. Frequency stability maintained within ±50 ppm ensuring precise performance. Series resistance rated at 100 Ω suitable for infotainment, GPS, ADAS, and LiDAR applications.

RoHS compliant and Pb-free construction supporting environmental safety. Packaging type: Tape & Reel for efficient assembly and manufacturing processes. Operating temperature from -40°C minimum up to 85°C maximum, with automotive grade 1 rated to +125°C.

This crystal unit is widely used across industrial, automotive, and communications applications, benefiting from stringent quality standards and robust design considerations. For professional electronic component procurement, environment-conscious manufacturing, and high-reliability circuit requirements, Abracon's ABM8AIG series stands as a dependable choice.
