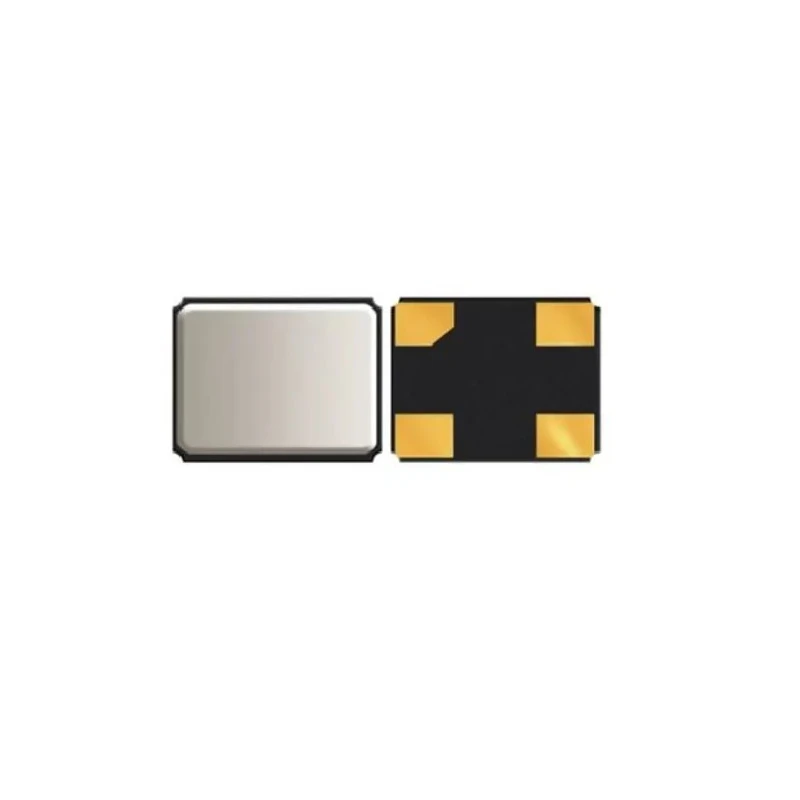

Abracon 16 MHz Surface Mount Crystal with ±10 ppm Frequency Tolerance 4-Pin 0.5 mm Height ABM11W ABM11W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.5mm |
| Length | 2mm |
| Model | ABM11W |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ABM11W |
| Maximum Operating Temperature | 125°C |
| Package Type | ABM11W |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 8pF |
| Series Resistance | 200Ω |
Key Features
- Standard frequency is 16 MHz for stable oscillation.
- Surface mount package type ABM11W with 4 pins.
- Load capacitance of 8 pF optimized for low power applications.
- Wide operating temperature range from -40°C to 125°C.
- Maximum series resistance of 200 Ω for efficient signal transmission.
- Manufactured with RoHS compliant standards for environmental safety.
- Ideal for Bluetooth, low energy wireless modules, and IoT device applications.
- Seam sealed design for long term reliability and low profile suitable for height constrained designs.
Product Description
Abracon ABM11W 16 MHz surface mount crystal oscillator offers precise frequency control with ±10 ppm tolerance, packaged in a low profile 4-pin ABM11W package measuring 2 mm by 1.6 mm by 0.5 mm. This crystal is engineered for height constrained designs common in modern electronic applications.
Its low load capacitance of 8 pF and maximum series resistance of 200 Ω make it suitable for energy saving applications such as Bluetooth and Bluetooth Low Energy modules, ultra low power microcontrollers, and various IoT devices. The component performs reliably over a broad temperature range from -40°C to 125°C, ensuring stability in diverse industrial and commercial environments.
The crystal is RoHS compliant, ensuring environmentally friendly manufacturing. The seam sealed construction enhances long-term reliability by preventing environmental degradation.
Applications include wireless communication modules, wearable electronics, ultra-low power circuit designs, and small form factor devices requiring precise clock oscillation. Standard frequency of 16 MHz for diverse oscillator circuit compatibility.
Surface mount 4-pin ABM11W package optimized for PCB space efficiency. Load capacitance of 8 pF tailored for energy-efficient signal processing. Operating temperature range from -40°C to 125°C suits industrial use cases.
Designed for Bluetooth, IoT, and ultra low power applications requiring stable frequency. Compact form factor with 0.5 mm maximum height for height constrained designs. RoHS compliant construction supports environmental standards compliance.
Seam sealed for enhanced durability and long operational life. Series resistance limited to 200 Ω enabling high-quality oscillation signals.
This Abracon crystal is a professionally engineered component essential for electronics manufacturers developing modern communication, wearable, and IoT devices. Explore more precision components and connectivity solutions at EnvMart for your industrial and laboratory needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal oscillator is 16 MHz, providing stable oscillation for various applications.
The maximum operating temperature for this model is 125°C, allowing it to function reliably in high-temperature environments.
The load capacitance of the Abracon ABM11W is 8 pF, which is optimized for low power applications.
The maximum series resistance for this crystal is 200 Ω, which enables efficient signal transmission.
The dimensions of the ABM11W crystal are 2 mm in length, 1.6 mm in width, and 0.5 mm in height, making it suitable for height-constrained designs.
This crystal comes in Tape & Reel packaging, which is convenient for automated assembly processes.
The minimum operating temperature for this crystal is -40°C, allowing it to be used in low-temperature environments.
Yes, this crystal is RoHS compliant, ensuring it meets environmental safety standards.
The ABM11W crystal is suitable for Bluetooth, low energy wireless modules, and various IoT device applications.
The pin count of the ABM11W crystal is 4, which is standard for its package type.
This crystal uses a surface mount type, making it suitable for modern PCB designs.
The seam sealed design enhances long-term reliability by preventing environmental degradation, ensuring stable performance over time.
