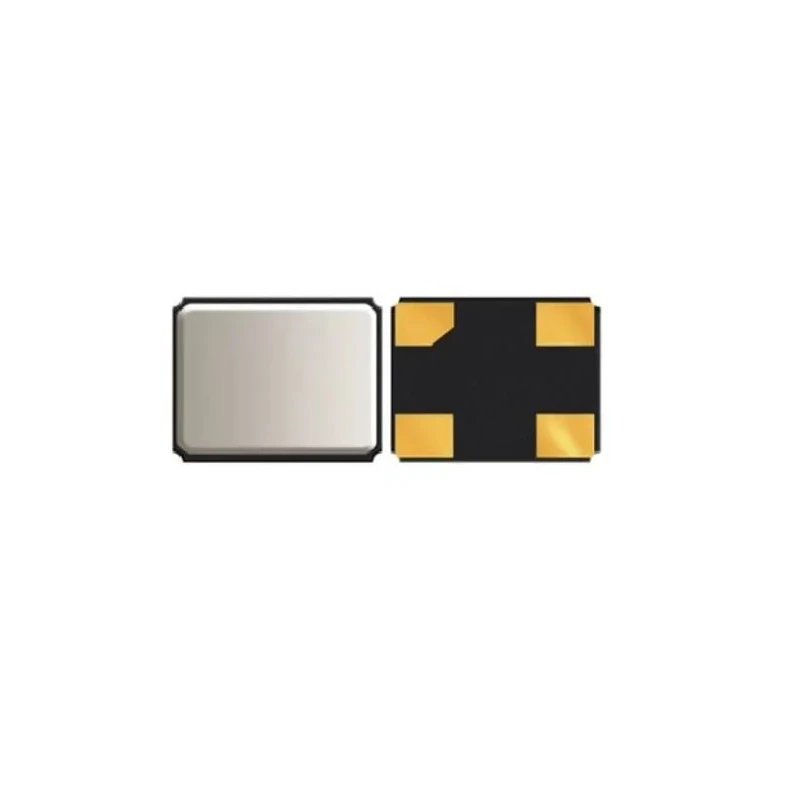

Abracon 16 MHz Crystal ±10 ppm Surface Mount ABM11W 4-Pin 0.5 mm Height 2 mm Length 1.6 mm Width ABM11W
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.5mm |
| Length | 2mm |
| Model | ABM11W |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ABM11W |
| Maximum Operating Temperature | 125°C |
| Package Type | ABM11W |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 8pF |
| Series Resistance | 200Ω |
Key Features
- Features a standard frequency of 16 MHz for accurate oscillation.
- Surface mount type for easy PCB integration.
- Low height profile at 0.5 mm suitable for compact devices.
- Load capacitance of 8 pF optimized for performance.
- Operating temperature range from -40°C to 125°C for reliability.
- Manufactured in ABM11W package with 4 pins configuration.
- Seam sealed construction ensures long term reliability.
- Ideal for Bluetooth, Bluetooth low energy, wireless modules, and IoT applications.
Product Description
Abracon ABM11W 16 MHz Crystal is a surface mount crystal oscillator designed for precise frequency control with a tolerance of ±10 ppm. It features a low profile height of 0.5 mm, making it ideal for height constrained modern electronic designs such as Bluetooth modules, ultra low power MCUs, and wearable IoT devices.
This 4-pin crystal device comes in the ABM11W package with dimensions 2 mm length and 1.6 mm width, enabling compact PCB layouts without compromising reliability. The load capacitance is 8 pF with an ESR optimized for energy saving applications.
Engineered for operation across a temperature range of -40°C to 125°C, the Abracon ABM11W crystal maintains stable frequency performance under varied environmental conditions. Its seamless sealed construction extends the lifespan and performance consistency required in industrial and commercial electronics.
With compliance to RoHS standards, this crystal oscillator supports environmentally friendly manufacturing. It is commonly used in wireless module designs including Bluetooth and Bluetooth LE, as well as ultra low power microcontroller applications, making it suitable for modern communication and sensing equipment.
Features a standard frequency of 16 MHz for accurate oscillation. Surface mount type for easy PCB integration. Low height profile at 0.5 mm suitable for compact devices. Load capacitance of 8 pF optimized for performance.
Operating temperature range from -40°C to 125°C for reliability. Manufactured in ABM11W package with 4 pins configuration. Seam sealed construction ensures long term reliability. Ideal for Bluetooth, Bluetooth low energy, wireless modules, and IoT applications.
Compliant with RoHS standards for environmental safety.
This Abracon crystal unit is essential for precision frequency control in industrial, commercial, and consumer electronics, supporting advanced IoT and wireless communication developments. EnvMart offers this ABM11W model as part of its electronics components selection.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Abracon ABM11W crystal oscillator has a standard frequency of 16 MHz, providing accurate oscillation for various applications.
This model features a load capacitance of 8 pF, which is optimized for performance in electronic applications.
The dimensions of this crystal are 2 mm in length, 1.6 mm in width, and it has a height of 0.5 mm, making it suitable for compact designs.
The operating temperature range for the Abracon ABM11W is from -40°C to 125°C, ensuring reliability in various environmental conditions.
This crystal has a 4-pin configuration, which facilitates easy integration into PCB layouts.
The ABM11W is designed for surface mounting, which simplifies the assembly process on printed circuit boards.
The series resistance of the Abracon ABM11W crystal is 200Ω, which is relevant for its performance in circuits.
This model is packaged in tape and reel format, which is commonly used for automated assembly processes.
Yes, the ABM11W is compliant with RoHS standards, supporting environmentally friendly manufacturing practices.
This crystal is ideal for applications in Bluetooth, Bluetooth low energy, wireless modules, and IoT devices.
The country of origin for the Abracon ABM11W crystal is India.
The ABM11W is part of the ABM11W series, which is designed for precise frequency control in various electronic applications.
