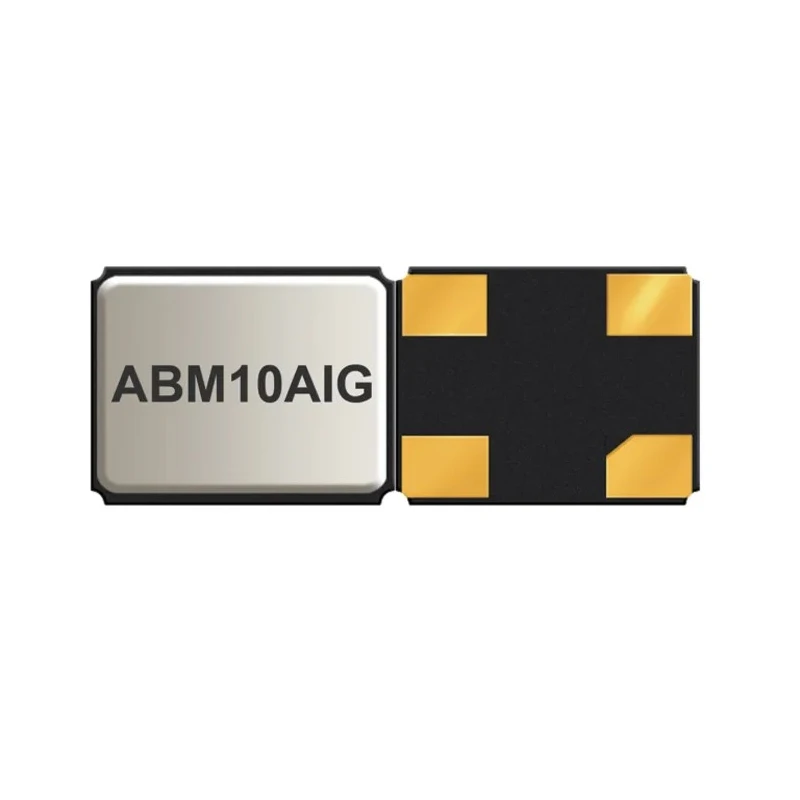

Abracon 24 MHz Surface Mount Ceramic Package 4-Pin Crystal ±50 ppm ABM10AIG-24.000MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | ABM10AIG-24.000MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 24MHz |
| Load Capacitance | 10pF |
| Series Resistance | 60Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Standard frequency of 24 MHz ensures precise oscillation performance.
- Surface mount type for efficient PCB assembly.
- Hermetically seam sealed ceramic package providing environmental protection.
- Pin count of 4 suitable for compact electronic circuits.
- Operating temperature range from -40°C to 125°C for automotive-grade applications.
- Load capacitance of 10pF for stable frequency behavior.
- Series resistance of 60Ω optimizing signal integrity.
- AEC-Q200 qualified ensuring automotive grade 1 standards compliance.
Product Description
Abracon ABM10AIG-24.000MHZ-4Z-T3 is a high-quality 24 MHz crystal designed for surface mounting on PCBs. Featuring a hermetically seam sealed ceramic package and 4 pins, this crystal ensures robust performance and long-term reliability in demanding environments.
This crystal offers a frequency tolerance of ±50 ppm with a frequency stability of ±100 ppm, making it suitable for precision timing applications. It operates efficiently within a temperature range of -40°C to 125°C, meeting automotive grade 1 requirements and qualifying under the AEC-Q200 standard.
The ABM10AIG series is ideal for automotive and industrial applications including infotainment systems, GPS/navigation, Advanced Driver Assistance Systems (ADAS), and LiDAR technologies. Its compact size with dimensions of 2.5 mm length, 2 mm width, and 0.55 mm height allows integration into space-constrained circuits.
Key technical features include a load capacitance of 10pF, series resistance of 60Ω, and packaging supplied as tape & reel for efficient automated assembly. The product is RoHS and Pb-free compliant, and produced under TS16949 certified production lines. PPAP documentation is available upon request to support quality assurance processes.
Standard frequency of 24 MHz ensures precise oscillation performance. Surface mount type for efficient PCB assembly. Hermetically seam sealed ceramic package providing environmental protection. Pin count of 4 suitable for compact electronic circuits.
Operating temperature range from -40°C to 125°C for automotive-grade applications. Load capacitance of 10pF for stable frequency behavior. Series resistance of 60Ω optimizing signal integrity. AEC-Q200 qualified ensuring automotive grade 1 standards compliance.
Packaging in tape and reel format for automated manufacturing processes. Compact dimensions: length 2.5 mm, width 2 mm, height 0.55 mm.
This crystal is ideal for electronic, automotive, manufacturing, and industrial use cases requiring reliable frequency control and robust environmental resilience. Available in bulk tape and reel packaging to support high-volume production environments.
Explore more from Abracon and similar Crystal Units in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 24 MHz, ensuring precise oscillation performance.
This model operates within a temperature range of -40°C to 125°C, making it suitable for automotive-grade applications.
The load capacitance of this crystal is 10 pF, which contributes to stable frequency behavior.
The series resistance is 60Ω, optimizing signal integrity for various applications.
This crystal unit has a pin count of 4, making it suitable for compact electronic circuits.
It comes in a hermetically seam sealed ceramic package, providing environmental protection.
The crystal is supplied in tape and reel format, which supports efficient automated assembly processes.
This model is AEC-Q200 qualified, ensuring compliance with automotive grade 1 standards.
The dimensions are 2.5 mm in length, 2 mm in width, and 0.55 mm in height.
The country of origin for this crystal unit is India.
This crystal is RoHS compliant, indicating it meets environmental standards for hazardous substances.
It is suitable for automotive and industrial applications, including infotainment systems, GPS/navigation, and ADAS.
