Abracon 24 MHz Crystal ±20 ppm Surface Mount 4-Pin 0.5 mm x 2.5 mm x 2 mm ABM10-24.000MHZ-E20-T

Free Delivery in India | Lowest Global Shipping Charges

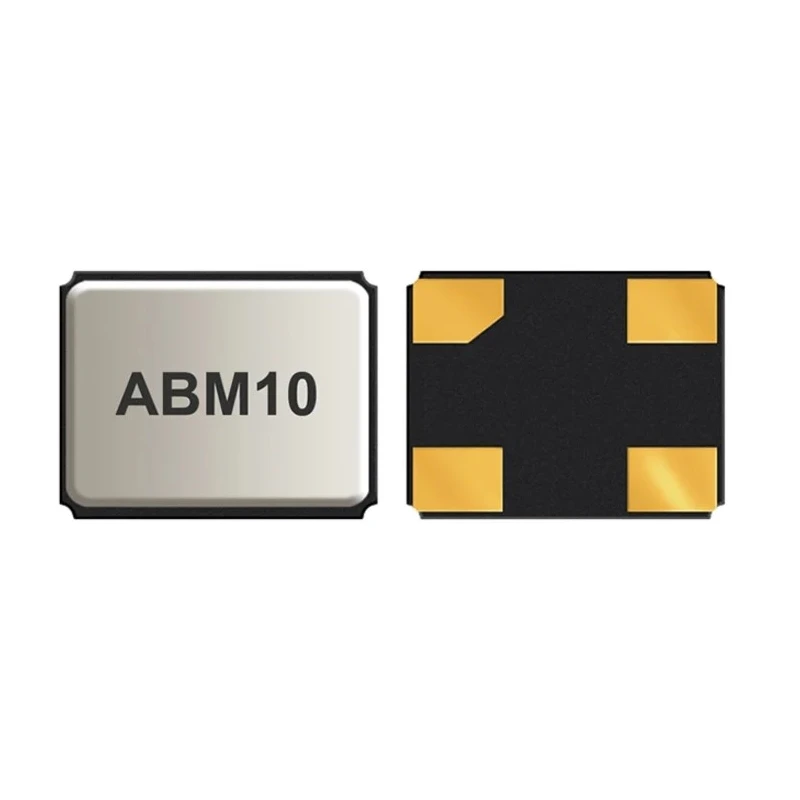

Abracon 24 MHz Crystal ±20 ppm Surface Mount 4-Pin 0.5 mm x 2.5 mm x 2 mm ABM10-24.000MHZ-E20-T

Name: Abracon 24 MHz Crystal ±20 ppm Surface Mount 4-Pin 0.5 mm x 2.5 mm x 2 mm ABM10-24.000MHZ-E20-T
Brand: Abracon
SKU: 177253
Price: 1.83 USD
Availability: InStock



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.5mm
Length	2.5mm
Model	ABM10-24.000MHZ-E20-T
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ABM10
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	24MHz
Load Capacitance	10pF
Series Resistance	100Ω

Key Features

Operates at a standard frequency of 24 MHz for precise timing applications.
Features a surface mount package with a compact 2.5 mm length, 2 mm width, and 0.5 mm height.
Offers load capacitance of 10 pF suitable for a range of circuits.
Designed for operating temperatures from -10°C to 60°C, making it reliable in various environments.
Compliant with RoHS standards to meet environmental regulations.
Comes in a 4-pin configuration for easy integration on PCBs.
Package type is tape & reel, optimized for automated assembly.
Series resistance is specified at 100 Ω, suitable for precise oscillator designs.

Product Description

Abracon ABM10-24.000MHZ-E20-T is a surface mount 24 MHz quartz crystal oscillator in an ultra-miniature 2.5 mm x 2.0 mm x 0.5 mm ceramic package. The crystal provides frequency stability with tolerance ±20 ppm and frequency stability ±30 ppm, operating reliably between -10°C and 60°C. It features a four-pin configuration optimized for surface mount technology, ideal for compact circuit board designs.

This component is widely used in wireless communication equipment such as Bluetooth devices, computers, microprocessors, modems, and other applications requiring precise clock signals. The ABM10 series crystals are RoHS compliant and suitable for automated assembly processes with tape and reel packaging.

The crystal's tight stability and low series resistance of 100 Ω ensure high precision performance. The seam sealed ceramic package enhances reliability and durability across industrial, communication, and consumer electronics applications.

Package dimensions of 2.5 mm length, 2.0 mm width, and 0.5 mm height make it suitable for space-constrained designs. The product adheres to environmental standards including RoHS compliance, ensuring safe use in modern electronics manufacturing.

Operates at a standard frequency of 24 MHz with ±20 ppm frequency tolerance. Compact surface mount, 4-pin ceramic package measuring 2.5 x 2.0 x 0.5 mm. Load capacitance of 10 pF supports a variety of oscillator circuits.

Reliable operation over a temperature range of -10°C to 60°C. Seam sealed ceramic package for enhanced durability and precision. Low series resistance of 100 Ω for optimized oscillator performance. RoHS compliant, suitable for environmentally conscious manufacturing.

Tape and reel packaging ideal for automated PCB assembly. Applications include wireless devices, computing, microprocessors, and modems.
