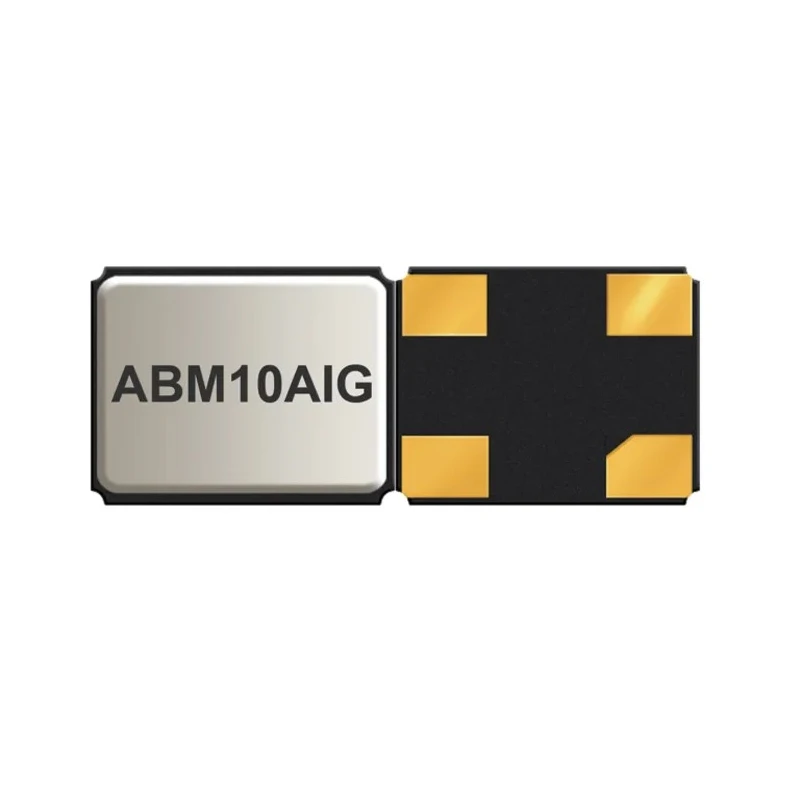

Abracon 12 MHz Crystal ±50 ppm Surface Mount 4-Pin Ceramic Package ABM10AIG-12.000MHZ-4Z-T3

Abracon ABM10AIG-12.000MHZ-4Z-T3 is a 12 MHz surface mount crystal resonator designed for high precision and reliable performance in electronic applications. The device features a hermetically seam sealed ceramic package ensuring robustness and durability in harsh environments.

This crystal operates at a standard frequency of 12 MHz with a frequency tolerance of ±50 ppm and frequency stability of ±100 ppm, providing excellent accuracy for timing and oscillator applications in automotive and industrial systems.

With a load capacitance of 10 pF and series resistance of 150Ω, it is optimized for circuits requiring fine frequency control. The compact 4-pin surface mount package has dimensions of 2.5 mm length, 2 mm width, and 0.55 mm height, making it suitable for compact PCB layouts.

The product complies with automotive grade 1 requirements, supports operation over a wide temperature range from -40°C to +125°C, and meets RoHS and AEC-Q200 standards. It is ideal for use in GPS, navigation systems, infotainment, ADAS, LiDAR, and other automotive electronics demanding high reliability and precision.

Packaging is supplied as tape and reel to facilitate automated assembly in manufacturing lines, improving production efficiency. Key Features:. Standard frequency 12 MHz for precise oscillation. Surface mount 4-pin ceramic package with hermetic sealing.

Frequency tolerance ±50 ppm and stability ±100 ppm. Load capacitance 10 pF and series resistance 150Ω. Operating temperature range -40°C to +125°C. Automotive Grade 1, AEC-Q200 certified for automotive applications. RoHS compliant and lead-free construction.

Tape and reel packaging for efficient PCB assembly.

This Abracon crystal unit is a dependable component for industrial and automotive electronic systems where timing precision and durability are critical. Browse EnvMart's extensive range of Crystal Units and electronic components for more options.
