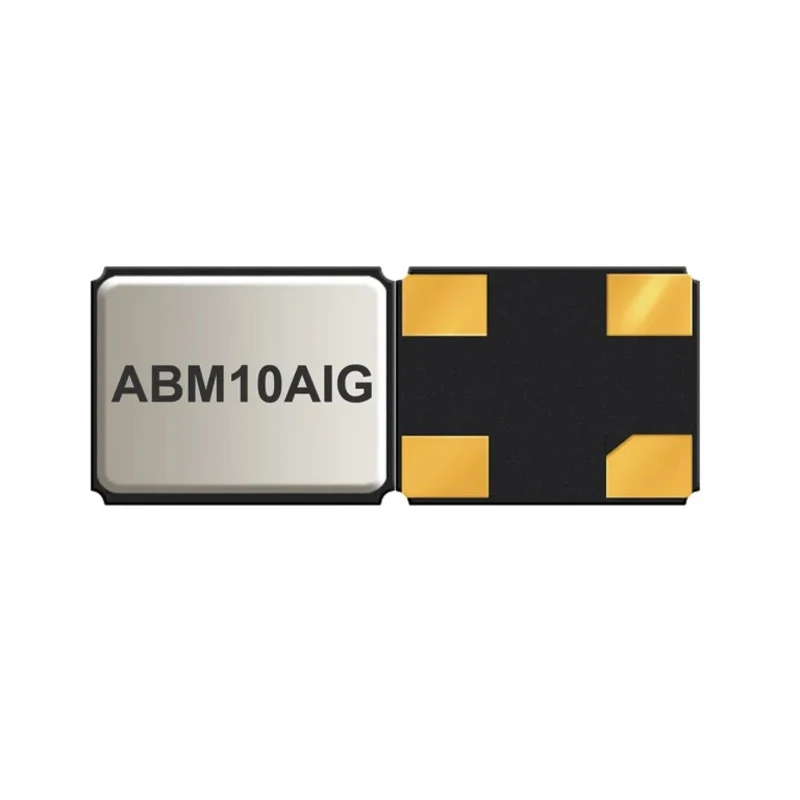

Abracon 12 MHz Crystal ±50 ppm Surface Mount 4-Pin 0.55 mm x 2.5 mm x 2 mm ABM10AIG-12.000MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | ABM10AIG-12.000MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 12MHz |
| Load Capacitance | 10pF |
| Series Resistance | 150Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Standard frequency of 12MHz ensures reliable signal timing.
- Surface mount package with 4 pins for compact PCB integration.
- Hermetically sealed ceramic package provides high environmental resistance.
- Load capacitance of 10 pF optimized for precise circuit performance.
- Wide operating temperature range from -40°C to +125°C for automotive grade 1 compliance.
- Series resistance of 150 Ω minimizes power loss.
- Manufactured under TS16949 certified production line for automotive quality standards.
- Compliant with RoHS and AEC-Q200 automotive standard.
Product Description
Abracon ABM10AIG-12.000MHZ-4Z-T3 is a high-precision 12 MHz crystal oscillator designed with a hermetically sealed ceramic package suitable for surface mount applications. This crystal unit features a 4-pin surface mount package with compact dimensions of 2.5 mm length, 2 mm width, and 0.55 mm height, making it ideal for high-density circuit board layouts.
It offers excellent frequency stability of ±100 ppm and a tight frequency tolerance of ±50 ppm, ensuring reliable signal timing in demanding environments. The load capacitance is specified at 10 pF with a series resistance of 150 Ω, contributing to efficient circuit operation and low power consumption.
Certified to the AEC-Q200 automotive standard and manufactured on a TS16949 production line, this crystal oscillator is automotive grade 1 rated to operate safely across a wide temperature range from -40°C to +125°C. Such specifications make it well-suited for automotive infotainment, GPS navigation, advanced driver-assistance systems (ADAS), LiDAR, and other industrial electronic applications requiring stringent reliability.
The unit is fully compliant with RoHS standards and comes in tape and reel packaging to facilitate automated assembly processes. Its hermetically seam-sealed ceramic body ensures long-term environmental resistance against moisture and contaminants.
Standard frequency of 12 MHz with ±50 ppm tolerance ensures precise timing. Compact surface mount 4-pin package dimensioned 2.5 mm x 2 mm x 0.55 mm. Load capacitance of 10 pF and series resistance of 150 Ω optimize circuit performance.
Wide temperature operation from -40°C to +125°C for automotive grade compliance. RoHS compliant with AEC-Q200 automotive quality certification. Hermetically sealed ceramic package providing environmental protection. Suitable for automotive infotainment, GPS, ADAS, and LiDAR systems.
Manufactured under TS16949 certified production ensuring high quality. Packaged on tape and reel for efficient surface mount assembly.
Explore the Electronics Components category on EnvMart for automotive grade Crystal Units and other precision electronic components designed to meet industrial and automotive standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 12 MHz, ensuring reliable signal timing.
This unit has compact dimensions of 2.5 mm in length, 2 mm in width, and 0.55 mm in height.
The load capacitance is specified at 10 pF, which optimizes circuit performance.
The series resistance is 150 Ω, which helps minimize power loss in the circuit.
It can operate within a wide temperature range from -40°C to +125°C, making it suitable for automotive applications.
Yes, it is certified to the AEC-Q200 automotive standard, ensuring it meets strict automotive quality requirements.
The unit is packaged on tape and reel, facilitating efficient automated assembly processes.
This model features a surface mount design, suitable for compact PCB integration.
It features a hermetically sealed ceramic package that provides high environmental resistance against moisture and contaminants.
The country of origin for this crystal oscillator is India.
It is rated as automotive grade 1, suitable for use in demanding automotive environments.
This crystal unit has a pin count of 4, allowing for easy integration into electronic circuits.
