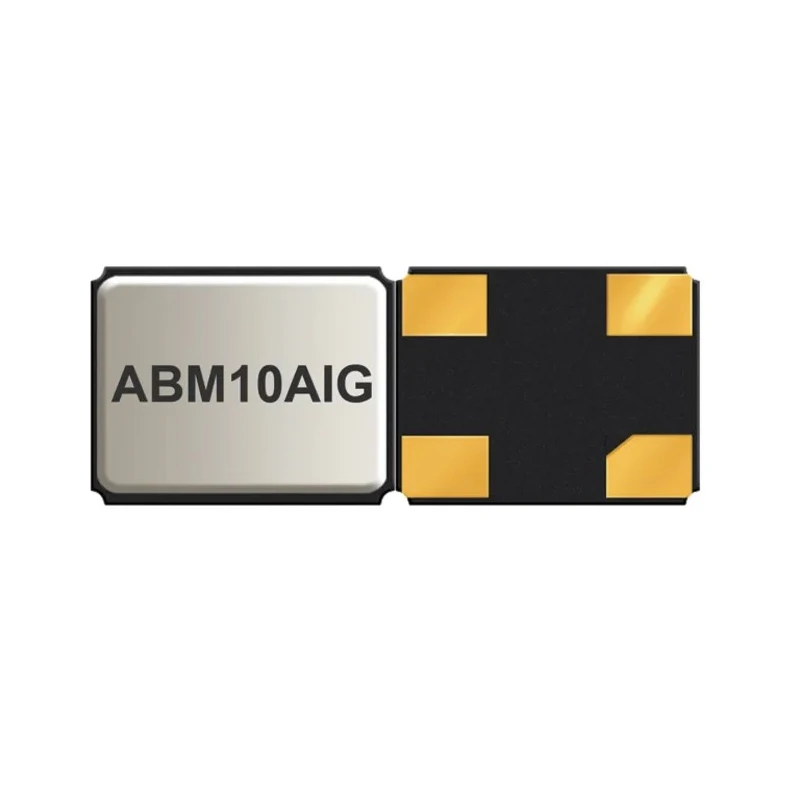

Abracon 12 MHz Crystal ±50 ppm Surface Mount 4-Pin Hermetically Sealed Ceramic Package ABM10AIG-12.000MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | ABM10AIG-12.000MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 12MHz |
| Load Capacitance | 10pF |
| Series Resistance | 150Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- Automotive Grade 1, operating temperature range from -40°C to +125°C.
- Hermetically seam sealed ceramic package ensures robust performance.
- 4-pin surface mount package with dimensions 2.5 mm length, 2 mm width, and 0.55 mm height.
- Load capacitance of 10 pF suitable for standard oscillator circuits.
- Series resistance of 150 Ω optimizing oscillator start-up and stability.
- Compliant with RoHS directive and AEC-Q200 automotive standards.
- Packaging by tape and reel facilitating automated assembly.
Product Description
The Abracon ABM10AIG-12.000MHZ-4Z-T3 is a high-reliability 12 MHz crystal unit tailored for demanding automotive and industrial environments. It features an automotive grade ceramic base surface mount design with a hermetically sealed ceramic package that safeguards performance under harsh conditions.
Designed to operate across a temperature range of -40°C to +125°C, this crystal meets the rigorous requirements of automotive Grade 1 standards and is AEC-Q200 qualified. Its precise frequency tolerance of ±50 ppm and frequency stability of ±100 ppm ensure stable and accurate oscillation in GPS, infotainment, ADAS, LiDAR, and navigation systems.
The crystal package is a 4-pin surface mount configuration with compact dimensions of 2.5 mm length, 2 mm width, and 0.55 mm height, enabling space-saving PCB layouts. The load capacitance of 10 pF supports standard oscillator circuits, while the series resistance of 150 Ω improves startup and stable oscillation.
Abracon’s adherence to RoHS and automotive manufacturing quality systems, including TS16949 certification and availability of PPAP documentation, underscores its suitability for large-scale automotive and industrial production.
Automotive Grade 1 operation from -40°C to +125°C. Hermetically sealed ceramic package for environmental robustness. Compact 4-pin surface mount package of size 2.5 x 2 x 0.55 mm. ±50 ppm frequency tolerance and ±100 ppm stability for precision timing.
10 pF load capacitance for standard oscillators. 150 Ω series resistance optimized for oscillator performance. Complies with RoHS and AEC-Q200 automotive standards.
This crystal is ideal for industrial, automotive infotainment, GPS, navigation, and advanced driver-assistance systems (ADAS). EnvMart customers will find the ABM10AIG-12.000MHZ-4Z-T3 a reliable component for precision oscillator applications requiring robust environmental and automotive standards compliance.
Discover more high-quality Abracon components and other Crystal Units in our Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a temperature range of -40°C to +125°C, qualifying it as Automotive Grade 1.
It has compact dimensions of 2.5 mm in length, 2 mm in width, and 0.55 mm in height.
The load capacitance is 10 pF, which is suitable for standard oscillator circuits.
The series resistance is 150 Ω, optimizing the oscillator's startup and stability.
It is packaged by tape and reel, facilitating automated assembly processes.
Yes, it complies with RoHS and meets the AEC-Q200 automotive standards.
The frequency tolerance is ±50 ppm, ensuring stable and accurate oscillation.
This crystal is suitable for applications in GPS, infotainment, ADAS, and navigation systems.
It features a surface mount design, making it suitable for space-saving PCB layouts.
This model has a 4-pin configuration.
The maximum operating temperature is 125°C.
The country of origin for this product is India.
