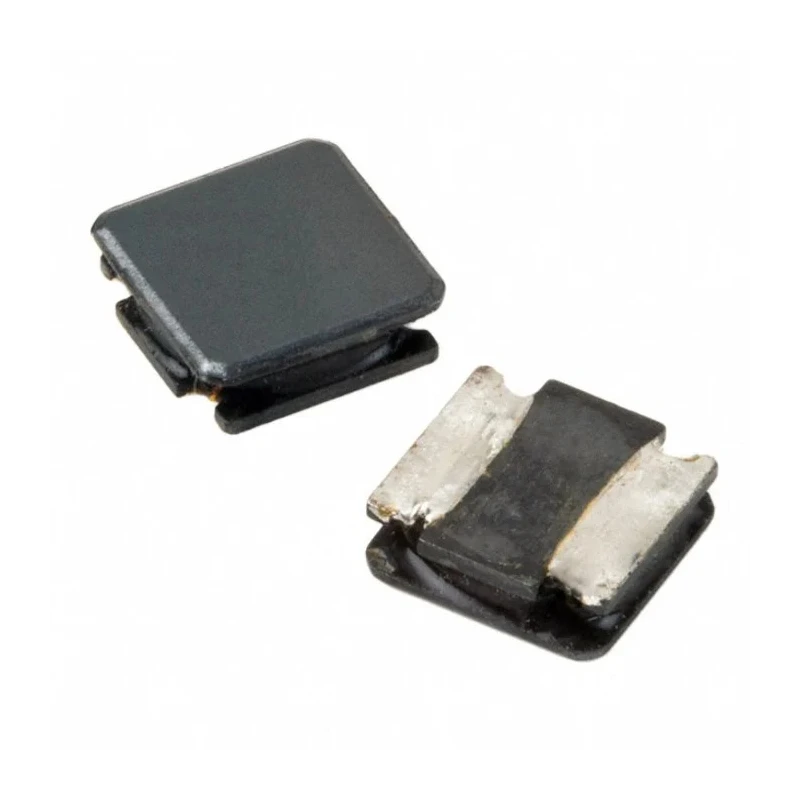

Abracon Shielded Surface Mount Inductor Ferrite Core 3.9 μH ±20 % 2.7 A Idc ASPI-0628-3R9M-T1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 2.8mm |
| Length | 6mm |
| Model | ASPI-0628-3R9M-T1 |
| Depth | 2.8mm |
| Packaging | Tape & Reel |
| Series | ASPI-0628 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -25°C |
| Core Material | Ferrite |
| Inductance | 3.9μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 2.7A |
| Pin Count | 4 |
| Maximum DC Resistance | 31mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Ferrite Core |
| Small size and low profile | 2.8mm |
Key Features
- Compact size of 6mm length with 2.8mm height and depth.
- Ferrite core construction provides effective magnetic shielding.
- Surface mount design suitable for tape and reel packaging.
- Maximum DC resistance of 31 mΩ ensures low power loss.
- Operational temperature range from -25°C to 125°C.
- High reliability to mechanical stress and suitable for RoHS reflow profiles.
- Pin count of 4 supports secure mounting.
- Inductor series ASPI-0628 designed for portable communication equipment and digital devices.
Product Description
Abracon ASPI-0628-3R9M-T1 shielded surface mount inductor features a ferrite core and operates with an inductance of 3.9 μH with ±20 % tolerance. It supports a maximum DC current of 2.7 A and is designed with a compact 6mm length and a low profile height and depth of 2.8mm.
This inductor is magnetically shielded by magnetic powder molding, enhancing its noise immunity and reducing electromagnetic interference. It is equipped with 4 pins for surface mount soldering and is supplied in tape and reel packaging suitable for automated PCB assembly.
The device maintains electrical performance within a temperature range of -25°C to 125°C, making it reliable for various industrial and electronic applications, including mobile phones, MP3 players, digital cameras, and other portable communication equipment.
It features a maximum DC resistance of 31 milliohms, ensuring minimal power losses during operation. The part complies with RoHS standards for environmental safety and is molded with a ferrite core construction.
Its small size and high current rating make it ideal for space-constrained and high-performance electronic designs requiring stable inductance and low electromagnetic interference.
Compact 6mm length with 2.8mm height and depth profile. Magnetically shielded ferrite core ensures noise reduction. Low resistance of 31 mΩ provides efficiency. Maximum DC current of 2.7 A for high-load applications. Operational temperature range from -25°C to 125°C.
Supplied in tape and reel packaging for automated assembly. Compatible with RoHS reflow soldering profiles. Four-pin surface mount termination style. Series ASPI-0628 suitable for portable digital devices.
This Abracon surface mount inductor is well-suited for electronic manufacturing, telecommunications, and consumer electronic devices. Explore more Surface Mount Inductors and components on EnvMart for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ASPI-0628-3R9M-T1 inductor has an inductance value of 3.9 μH with a tolerance of ±20%.
This model supports a maximum DC current of 2.7 A.
The inductor has a compact size with a length of 6 mm and a height and depth of 2.8 mm.
The operational temperature range for this inductor is from -25°C to 125°C.
It is supplied in tape and reel packaging, suitable for automated PCB assembly.
The maximum DC resistance is 31 mΩ, ensuring low power loss during operation.
This model features a pin count of 4, supporting secure surface mount soldering.
The core of this inductor is made of ferrite, which provides effective magnetic shielding.
Yes, it complies with RoHS standards for environmental safety.
This inductor is suitable for various applications including portable communication equipment and digital devices like mobile phones and MP3 players.
The termination style of this model is surface mount, designed for easy integration into PCB layouts.
The ASPI-0628-3R9M-T1 belongs to the ASPI-0628 series, designed specifically for high-performance electronic applications.
