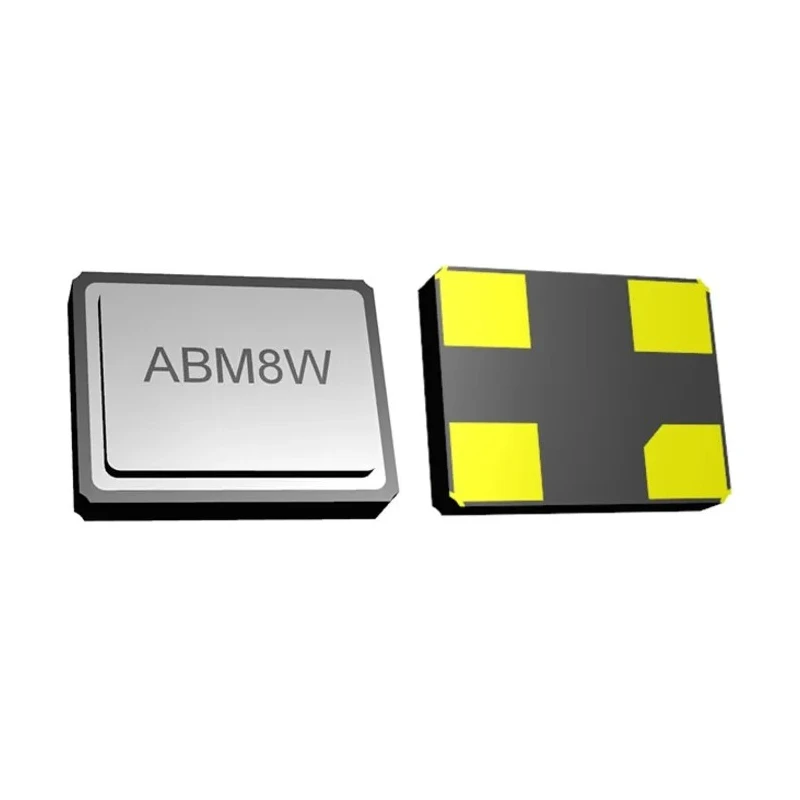

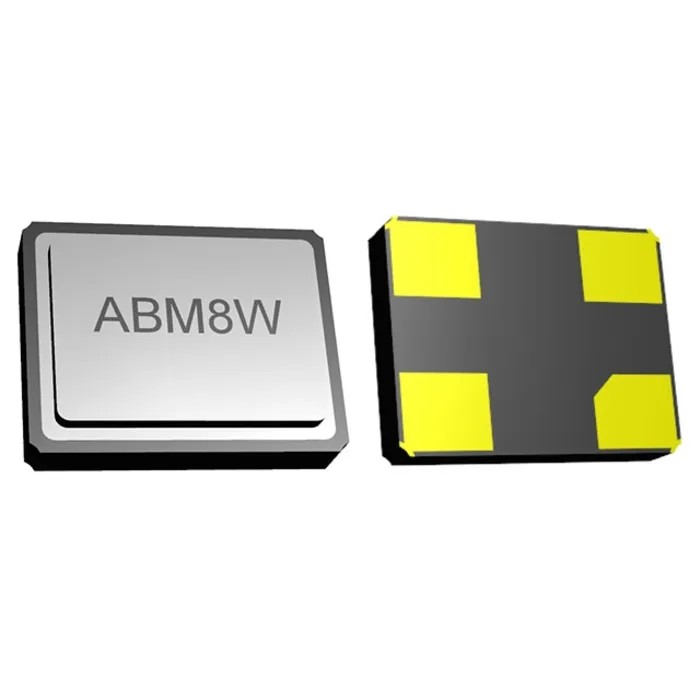

Abracon 16 MHz Crystal Unit Surface Mount 4-Pin 3.2 x 2.5 x 0.75 mm ±10 ppm Frequency Tolerance ABM8W-16.0000MHZ-8-K1Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.75mm |
| Length | 3.2mm |
| Model | ABM8W-16.0000MHZ-8-K1Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8W |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 16MHz |
| Load Capacitance | 4pF |
| Series Resistance | 70Ω |
Key Features
- Standard frequency is 16 MHz with ±10 ppm frequency tolerance.
- Surface mount type with 4 pins for stable PCB integration.
- Load capacitance of 4 pF optimized for low power consumption.
- Operating temperature range from -40°C to 125°C providing robust performance.
- Series resistance of 70 ohms ensuring signal stability.
- RoHS compliant and lead-free construction for environmental safety.
- Seam sealed design enhances long-term reliability.
- Designed for applications such as Bluetooth, BLE, wireless modules, and ultra-low power MCUs.
Product Description
Abracon ABM8W-16.0000MHZ-8-K1Z-T3 16 MHz Crystal Unit is a surface mount device designed for compact, low profile applications such as wearables and Internet of Things (IoT) devices. The crystal unit features a standard frequency of 16 MHz with a tight frequency tolerance of ±10 ppm ensuring accurate timing performance.
The device has a small footprint with package dimensions of 3.2 mm in length, 2.5 mm in width, and a low profile height of 0.75 mm. This makes it ideal for applications requiring minimal space consumption on printed circuit boards.
It is constructed with a 4-pin surface mount configuration and a load capacitance of 4 pF, optimized to support ultra-low power consumption in Bluetooth/Bluetooth Low Energy (BLE) modules, wireless communication systems, and machine-to-machine (M2M) connectivity solutions.
The crystal operates reliably over a broad temperature range from -40°C to 125°C, suitable for industrial and commercial environments. The series resistance is specified at 70 ohms to maintain signal integrity and timing accuracy.
Its seam-sealed, lead-free design complies with RoHS and RoHS II standards, supporting environmentally friendly manufacturing processes and enhancing long-term device reliability. Standard frequency: 16 MHz with ±10 ppm tolerance provides stable frequency output.
Compact surface mount 4-pin package dimensions: 3.2 mm x 2.5 mm x 0.75 mm. Load capacitance of 4 pF suited for energy-saving and IoT devices. Wide temperature operating range from -40°C to 125°C for versatile deployment.
Series resistance of 70 ohms assures signal stability. RoHS compliant and lead-free for environmentally safe usage. Seam-sealed crystal unit enhances performance longevity. Ideal for Bluetooth, BLE, wireless modules, ultra-low power MCU, and machine-to-machine connectivity.
This crystal unit is broadly applicable in electronics and communications industries including industrial instruments, IoT devices, wearable technologies, and consumer electronics. Its compact size and reliable performance deliver precise clock generation for embedded system timing requirements.
Explore more products in the Crystal Units category at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 16 MHz.
This model has dimensions of 3.2 mm in length, 2.5 mm in width, and a height of 0.75 mm.
The load capacitance of this crystal unit is 4 pF, optimized for low power consumption.
The series resistance is specified at 70 ohms, which helps maintain signal stability.
It operates reliably over a temperature range from -40°C to 125°C.
This model uses a surface mount configuration with 4 pins.
Yes, it is RoHS compliant and features a lead-free construction for environmental safety.
The crystal unit is packaged in tape and reel format, suitable for automated assembly processes.
It is designed for applications such as Bluetooth, BLE, wireless modules, and ultra-low power MCUs.
The seam-sealed design enhances long-term reliability and performance longevity of the crystal unit.
It complies with RoHS and RoHS II standards, supporting environmentally friendly manufacturing processes.
The country of origin for this crystal unit is India.
