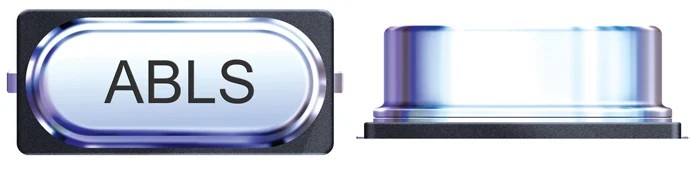

Abracon 20 MHz Crystal Unit ±30 ppm Frequency Tolerance HC-49-US 2-Pin Through Hole ABLS-6.7458MHZ-B4-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 4.2mm |
| Length | 11.5mm |
| Model | ABLS-6.7458MHZ-B4-T |
| Packaging | Tape & Reel |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | ABLS |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49-US |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 20MHz |
| Load Capacitance | 6.7458pF |
| Series Resistance | 100Ω |
Key Features
- Standard frequency of 20 MHz ensures precise timing.
- Maintains frequency stability within ±50 ppm over operating temperature.
- Package type HC-49-US with compact dimensions of 11.5 mm length, 4.7 mm width, and 4.2 mm height.
- Load capacitance of 6.7458 pF for optimal circuit performance.
- Rated for operating temperatures between 0°C and 70°C.
- Series resistance limited to 100Ω for signal integrity.
- Packaged in tape and reel for efficient automated assembly.
- RoHS compliant and lead-free construction.
Product Description
Abracon ABLS-6.7458MHZ-B4-T 20 MHz Crystal Unit offers high precision and reliability in a standard HC-49-US through-hole package. With a frequency tolerance of ±30 ppm and stability of ±50 ppm, this crystal unit is ideal for applications requiring stable and accurate oscillation frequencies.
The crystal unit features dimensions of 11.5 mm length, 4.7 mm width, and 4.2 mm height, making it suitable for space-constrained electronic designs. The load capacitance is precisely specified at 6.7458 pF, optimizing electrical performance in circuits such as computers, modems, microprocessors, and wireless devices.
Designed for operation within 0°C to 70°C temperature range and a series resistance of 100Ω, this crystal unit ensures robust performance and durability under typical environmental conditions. It is supplied in a tape and reel format suitable for automated insertion into manufacturing lines, enhancing production efficiency.
The ABLS series from Abracon complies with RoHS directives, containing no hazardous substances and supporting eco-friendly manufacturing processes. Its lead-free design aligns with modern environmental standards.
Standard frequency at 20 MHz with ±30 ppm tolerance. Through-hole mount type for versatile PCB integration. Compact HC-49-US package design. Precise load capacitance of 6.7458 pF. Operating temperatures from 0 to 70°C. Low series resistance of 100Ω ensures stable signal output.
Tape and reel packaging for manufacturing automation. RoHS compliant and lead free.
This crystal unit is suitable for a wide variety of industrial and laboratory electronic applications, including computing devices, communication equipment, and other timing-critical systems. Its robustness and precision make it a reliable component for demanding environments.
Explore more electronic components and Crystal Units in our extensive EnvMart catalog for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 20 MHz.
This model has dimensions of 11.5 mm in length, 4.7 mm in width, and 4.2 mm in height.
The load capacitance is specified at 6.7458 pF, optimizing electrical performance in circuits.
It is rated for operating temperatures between 0°C and 70°C.
The series resistance is limited to 100Ω, ensuring stable signal output.
It is packaged in tape and reel format, suitable for automated assembly processes.
This crystal unit uses a through-hole mount type for versatile PCB integration.
This model is RoHS compliant, containing no hazardous substances and supporting eco-friendly manufacturing processes.
The frequency tolerance is ±30 ppm, ensuring precise timing.
It is suitable for a variety of industrial and laboratory electronic applications, including computing devices and communication equipment.
The country of origin for this crystal unit is India.
The package type is HC-49-US, which is a compact design ideal for space-constrained electronic applications.
