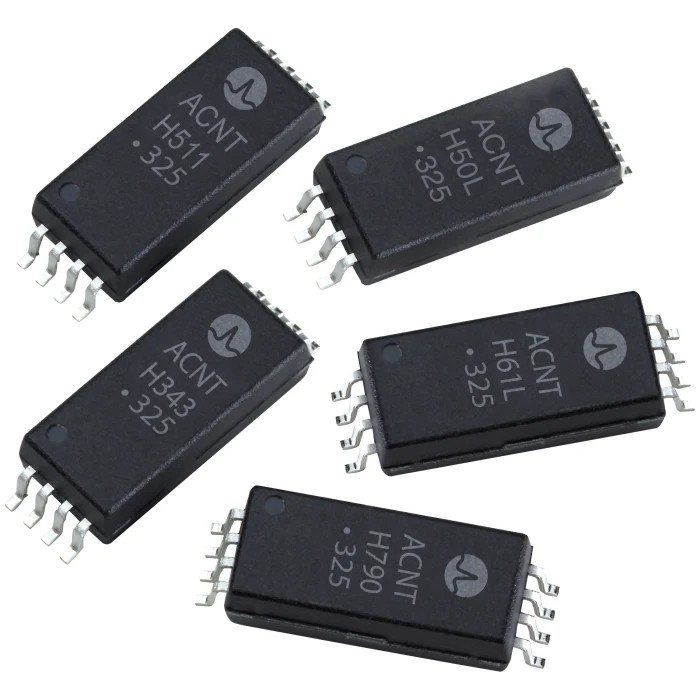

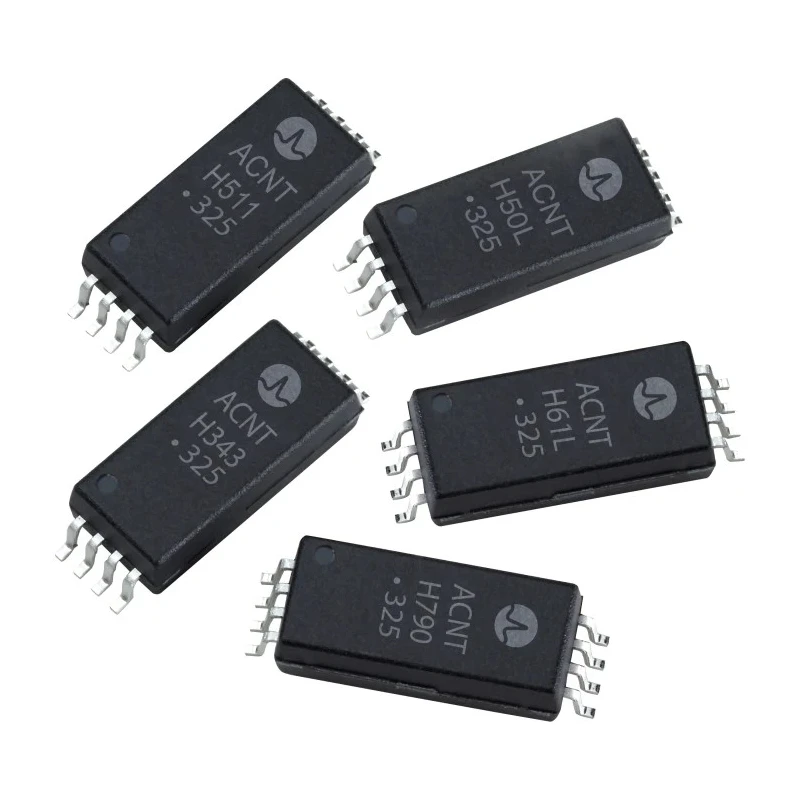

Broadcom Optocoupler Surface Mount, 8-Pin, 1 Channel, 230mA Input Current, Operating Temperature -40°C to ACNT-H87B-500E
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Broadcom |
| Model | ACNT-H87B-500E |
| Mount Type | Surface |
| Series | ACNT-H87B |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 230mA |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 8 |
Key Features
- Optical isolation amplifier with 1 channel and 8 pins for efficient signal transfer.
- Maximum input current rating of 230mA suitable for electronic power converters.
- Wide operating temperature range from -40°C to 110°C for challenging environments.
- Compact 15-mm Stretched SO-8 package compatible with surface mounting technology.
- RoHS compliant ensuring environmental safety and regulatory compliance.
- High input impedance of 1 GΩ for precise voltage sensing applications.
- Wide supply range from 3V to 55V on the output side enhancing operational flexibility.
Product Description
Broadcom ACNT-H87B-500E is a high-precision optocoupler designed for surface mounting with 8 pins and a single channel. It excels in isolated voltage sensing applications with a nominal input range of 0 to 2 volts and a maximum input current of 230mA. Its outstanding input impedance of 1 GΩ and low gain drift of -35 ppm/°C make it ideal for industrial, power electronics, renewable energy systems, and motor drive implementations.
This device utilizes advanced sigma-delta modulation technology to deliver high gain accuracy of ±0.5% and features an active-high shutdown pin for operational control. The compact 15-mm Stretched SO-8 package supports auto-insertion in manufacturing processes. Operating reliably over a wide temperature range of -40°C to +110°C, it also withstands common-mode transient immunity up to 15 kV/μs.
The optocoupler supports a broad supply voltage range from 3V to 55V on the output side, enhancing compatibility with various electronic circuits. It meets RoHS standards, ensuring environmental compliance.
Typical applications include voltage sensing in electronic power converters, motor drives, and renewable energy systems where isolation and signal fidelity are paramount. Optical isolation amplifier with 1 channel and 8 pins for efficient signal transfer.
Maximum input current rating of 230mA suitable for electronic power converters. Wide operating temperature range from -40°C to 110°C for challenging environments. Compact 15-mm Stretched SO-8 package compatible with surface mounting technology.
RoHS compliant ensuring environmental safety and regulatory compliance. High input impedance of 1 GΩ for precise voltage sensing applications. Wide supply range from 3V to 55V on the output side enhancing operational flexibility.
Explore more Optocouplers and related components at EnvMart to meet your industrial and electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current rating for this model is 230mA, making it suitable for electronic power converters.
It operates reliably over a wide temperature range from -40°C to +110°C, suitable for challenging environments.
This model features a single channel for efficient signal transfer.
The input impedance is 1 GΩ, which is beneficial for precise voltage sensing applications.
It is designed for surface mounting, compatible with auto-insertion in manufacturing processes.
The output side supports a wide supply voltage range from 3V to 55V, enhancing compatibility with various electronic circuits.
It comes in a compact 15-mm Stretched SO-8 package.
Yes, this optocoupler meets RoHS standards, ensuring environmental compliance.
It can withstand common-mode transient immunity up to 15 kV/μs.
Typical applications include voltage sensing in electronic power converters, motor drives, and renewable energy systems.
It features a high gain accuracy of ±0.5%, which is critical for isolated voltage sensing applications.
The country of origin for this optocoupler is the Philippines.
