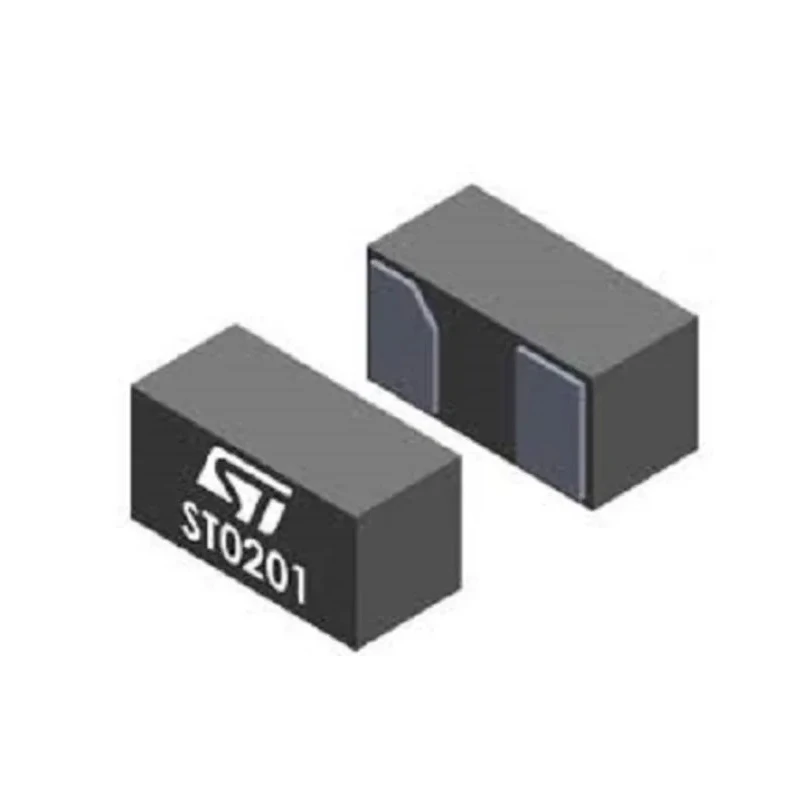

STMicroelectronics Uni-Directional TVS Diode 3-Pin Surface Mount 0201 Package ESDA5-1F4
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.33mm |
| Length | 0.63mm |
| Model | ESDA5-1F4 |
| Width | 0.32mm |
| Mount Type | Surface |
| Series | ESDA5-1F4 |
| Maximum Operating Temperature | 150°C |
| Package Type | 0201 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, IEC |
| Pin Count | 3 |
| Clamping Voltage VC | 9V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 5.8V |
| Maximum Reverse Leakage Current | 100nA |
Key Features
- Uni-directional TVS diode designed to protect data lines or I/O ports against electrostatic discharge transients.
- Features a minimum breakdown voltage of 5.8 V and clamping voltage of 9 V providing robust overvoltage protection.
- Compact 0201 surface mount package with dimensions 0.63 mm length, 0.32 mm width, and 0.33 mm height for board space saving.
- Operates under wide temperature range from -55°C to 150°C suitable for automotive and industrial applications.
- Extremely low leakage current of 100 nA ensuring minimal power loss.
- Certified to automotive standard AEC-Q101 and compliant with RoHS and IEC standards.
- Ideal for applications requiring reduced line capacitance and high efficiency ESD protection.
- Designed for high reliability in harsh environments with stringent quality standards.
Product Description
STMicroelectronics ESDA5-1F4 Uni-Directional TVS Diode is a surface mount 3-pin discrete semiconductor device featuring a small 0201 package size, measuring 0.63 mm in length, 0.32 mm in width, and 0.33 mm in height. This diode offers a minimum breakdown voltage (Vbr) of 5.8 V and a clamping voltage (Vc) of 9 V, designed to protect sensitive electronic circuits from electrostatic discharge (ESD) transients effectively.
It is engineered for use in advanced electronic systems, including automotive, industrial, and high-reliability environments that require compliance with industry standards like AEC-Q101 and IEC. The device operates reliably in temperatures ranging from -55°C to +150°C, making it suitable for demanding ambient conditions.
ESDA5-1F4’s ultra-low leakage current of 100 nA enhances energy efficiency and reduces power dissipation, essential for compact electronics with tight energy budgets. The diode’s uni-directional design is ideal for protecting data lines and I/O ports against voltage spikes caused by ESD, surges, and other transient voltage events.
This device conforms to RoHS directives, ensuring it meets environmental and safety regulations. Its extremely compact form factor allows PCB designers to maximize board real estate without compromising on protection, making it an excellent solution for miniaturized designs.
The STMicroelectronics ESDA5-1F4 TVS diode is supplied on reels to facilitate automated assembly, enhancing manufacturing efficiency and throughput. Its robust design and compliance with automotive grade standards guarantee long-term reliability and stability in electronic circuits.
Uni-directional device for effective transient voltage suppression. Compact 0201 surface mount package for minimal PCB footprint. Low breakdown voltage and clamping voltage for sensitive components protection. Wide operating temperature range from -55°C to +150°C.
Meets automotive standard AEC-Q101 and RoHS compliance. Extremely low reverse leakage current to minimize energy loss. Suitable for industrial, automotive, and consumer electronics applications. Facilitates automated PCB assembly with reel packaging.
