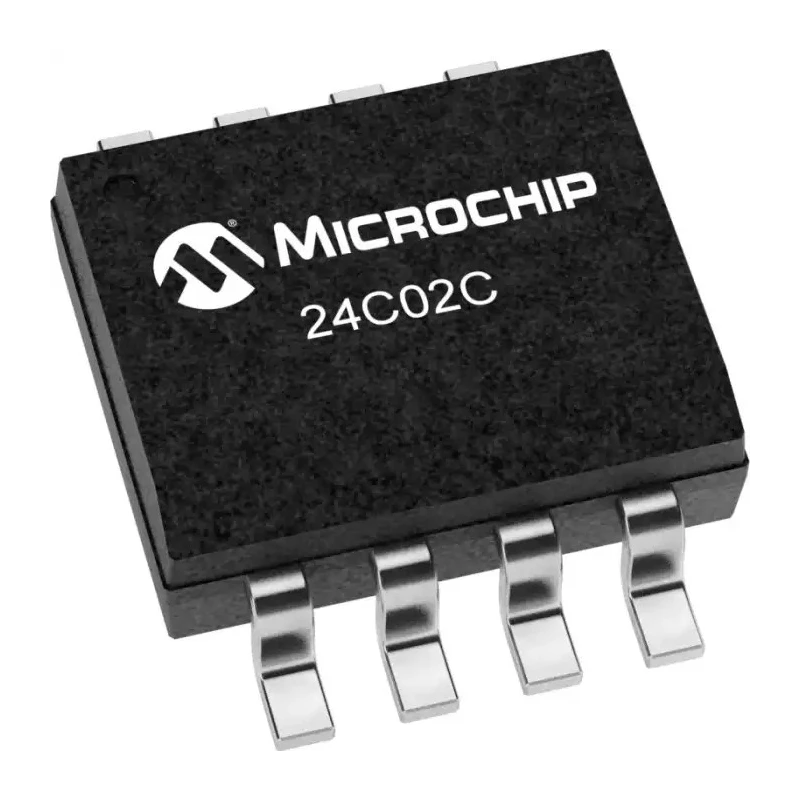

Microchip 2 kB Serial EEPROM 900 ns 8-Pin SOIC Serial-I2C (2 Wire) 24C02CT-I/SN

Microchip 24C02CT-I/SN 2 kB Serial EEPROM is a high-performance memory chip designed for industrial and commercial electronic applications. This device integrates a 256 x 8-bit memory organisation in an 8-pin SOIC surface mount package. It supports a Serial I2C (2-wire) interface with a maximum clock frequency of 1000 kHz, delivering fast and efficient data communication.

The EEPROM operates over a wide voltage range from a minimum supply voltage of 1.7 V to a maximum of 5.5 V, enabling flexibility in power-sensitive environments. It boasts an exceptional data retention capability of over 200 years, ensuring long-term storage reliability. The operating temperature range of -40°C to 85°C makes it suitable for demanding industrial conditions.

Built with low-power CMOS technology, the chip supports over 1 million read/write cycles and offers a maximum random access time of 900 ns. Schmitt trigger inputs help reduce noise, while self-timed erase and write cycles ensure efficient operation. It also provides ESD protection exceeding 4000 V, enhancing device robustness.

This Microchip EEPROM is cascadable up to 8 devices for expanding memory capacity and includes page write capability for up to 16 bytes to speed up data operations. Its compact dimensions of 4.9 mm length, 3.9 mm width, and 1.5 mm height allow easy integration into circuit boards.

Offers a memory organisation of 256 x 8 bit for efficient data storage. Operates within a voltage range of 1.7V to 5.5V supporting low power consumption. Features a maximum clock frequency of 1000 kHz ensuring fast communication.

Supports data retention exceeding 200 years for high reliability. Designed to operate in temperatures from -40°C to 85°C for industrial applications. Includes Schmitt trigger inputs to suppress noise and features self-timed erase/write cycles.

ESD protection greater than 4000 V safeguards device integrity. Mount type is surface mount compatible with SOIC package form factor. Maximum random access time is 900 ns for quick data retrieval.

This serial EEPROM supports industrial, commercial, and embedded electronics applications where durability, low power consumption, and reliable non-volatile memory storage are critical. It is suitable for use in automation, control systems, and sensor data logging among other electronic memory requirements.
