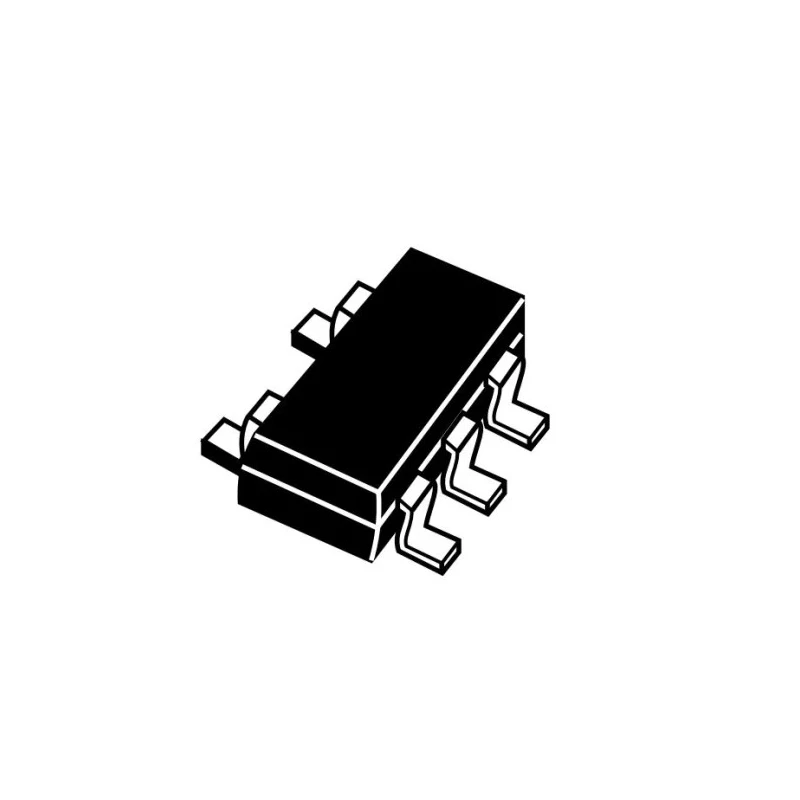

STMicroelectronics Operational Amplifier 22 MHz Gain Bandwidth Product 36V 5-Pin SOT-23 TSB7191AIYLT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSB7191AIYLT |
| Width | 1.75mm |
| Mount Type | Surface |
| Low Noise | 12 nV/√Hz |
| Series | TSB7191A |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | JEDEC, ANSI/ESD STM5.3.1 |
| Pin Count | 5 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 0 nA |
| Slew Rate | 12V/μs |
| Input Offset Current | 10 nA |
| Extended temperature range | -40 °C to +125 °C |
Key Features
- Operates with supply voltages from 2.7 V up to 36 V for versatile applications.
- Rail-to-rail input and output enhances signal handling capability.
- Low input offset voltage of 300 μV maximum ensures precise operation.
- Wide operating temperature range from -40 °C to 125 °C suitable for automotive and industrial use.
- Automotive-grade compliant with AEC-Q3 and AEC-Q100 standards.
- Low noise performance with 12 nV/√Hz for sensitive analog circuits.
- Single channel operational amplifier in a compact 3 mm × 1.75 mm × 1.45 mm SOT-23 package.
- Integrated EMI filter for enhanced signal integrity.
Product Description
STMicroelectronics TSB7191AIYLT is a high-performance operational amplifier designed for a wide range of industrial, automotive, and commercial applications.
This single-channel op amp operates across a wide supply voltage range from 2.7 V to 36 V, supporting single supply or dual supply configurations, making it highly versatile for embedded power supply, motor control, and sensor interfacing.
The device features rail-to-rail input and output stages allowing full signal swing, which is critical for precision analog signal processing. Its low input offset voltage of 300 μV (maximum) and low input offset current of 10 nA ensures minimal signal distortion.
Robustness is enhanced through automotive qualification per AEC-Q3 and AEC-Q100 standards and an extended operating temperature range from -40 °C to 125 °C, ensuring reliable performance in harsh environments.
The compact SOT-23 5-pin surface mount package with dimensions of 3 mm length, 1.75 mm width, and 1.45 mm height suits space-constrained PCB layouts. The device’s low noise (12 nV/√Hz) and integrated EMI filter improve analog signal quality in sensitive measurement and control circuits.
Typical applications include analog filters, power supplies, motor drivers, actuator controls, Hall-effect sensor signal conditioning, and resistive transducers. Operates from 2.7 V to 36 V supply voltage range. 22 MHz gain bandwidth product supports high-frequency amplification.
Rail-to-rail input and output for maximum signal range. Low input offset voltage and current for precision. Automotive qualified with AEC-Q3 and AEC-Q100 certifications. Extended temperature range of -40 °C to 125 °C suitable for industrial and automotive environments.
Compact 5-pin SOT-23 surface mount package. Integrated EMI filter for noise reduction. 12 V/μs slew rate enables fast response.
Explore STMicroelectronics Operational Amplifiers and related semiconductor components in the Electronics & Electricals category on EnvMart for reliable high-quality industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 22 MHz, which supports high-frequency amplification applications.
It operates with supply voltages ranging from 2.7 V to 36 V, allowing for versatile configurations.
This model has an extended operating temperature range from -40 °C to 125 °C, making it suitable for both industrial and automotive environments.
The TSB7191AIYLT is a single-channel operational amplifier.
The SOT-23 package has dimensions of 3 mm in length, 1.75 mm in width, and 1.45 mm in height.
It features a low input offset voltage of 300 μV maximum, ensuring precise operation.
The slew rate of this operational amplifier is 12 V/μs, enabling fast response in applications.
It is compliant with AEC-Q3 and AEC-Q100 automotive standards, ensuring reliability in automotive applications.
This operational amplifier has a low noise performance of 12 nV/√Hz, making it suitable for sensitive analog circuits.
It is designed for surface mounting, specifically in a 5-pin SOT-23 package.
The input bias current for the TSB7191AIYLT is 0 nA, contributing to its precision.
Typical applications include analog filters, power supplies, motor drivers, actuator controls, and Hall-effect sensor signal conditioning.
