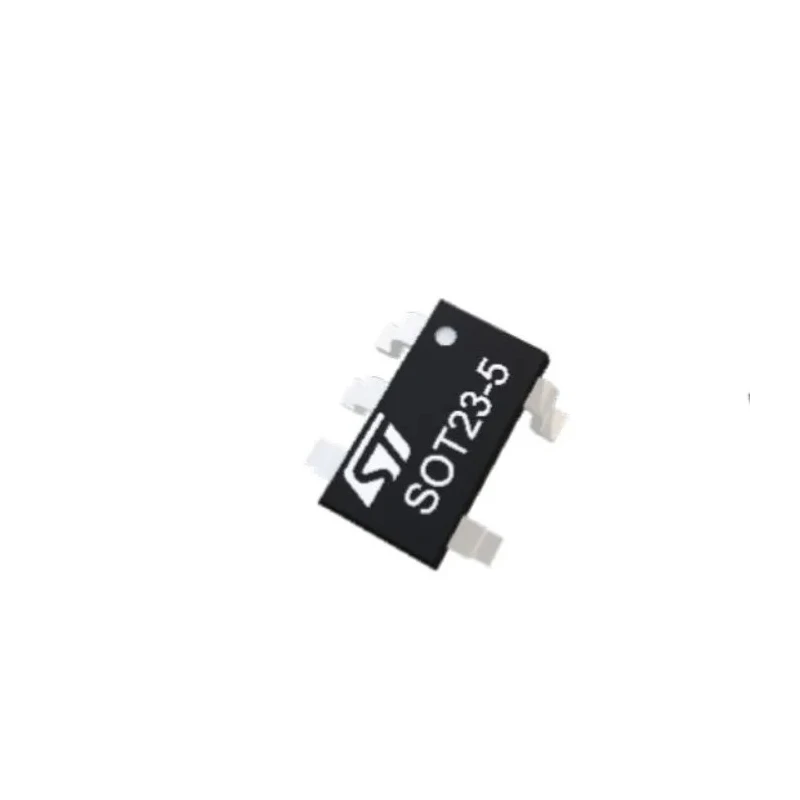

STMicroelectronics Operational Amplifier 22 MHz Gain Bandwidth, 5-Pin SOT-23 TSV7721ILT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 3mm |
| Model | TSV7721ILT |
| Width | 1.75mm |
| Mount Type | Surface |
| Series | TSV7721 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 11V/μs |
| Input Offset Current | 20 pA |
Key Features
- This single-channel amplifier has a gain bandwidth product of 22 MHz.
- Designed with low input bias current of 75 pA for high-accuracy sensing applications.
- Operates with a supply voltage range from 1.8V to 5.5V.
- Includes ultra-low input offset voltage of 200 μV (max) for precise signal amplification.
- Features a fast slew rate of 11 V/μs ensuring rapid response times.
- Suitable for industrial and automotive use with AEC-Q3 and AEC-Q100 certification standards.
- Compact SOT-23 surface-mount package with dimensions 3 mm x 1.75 mm x 1.45 mm.
- Wide operating temperature range from -40°C to 125°C supports harsh environments.
Product Description
STMicroelectronics TSV7721ILT is a high-performance operational amplifier designed for high-accuracy and high-bandwidth sensor interface applications. This device delivers a gain bandwidth product of 22 MHz and operates on supply voltages ranging between 1.8V and 5.5V, making it versatile for a wide array of electronic circuits.
The amplifier's ultra-low input offset voltage of max 200 μV and extremely low input bias current of 75 pA allow precise current measurements, ideal for photodiode and sensor signal conditioning. Its fast slew rate of 11 V/μs supports quick signal changes and high-speed operation.
Encased in a compact 5-pin SOT-23 surface mount package measuring 3 mm length, 1.75 mm width, and 1.45 mm height, the TSV7721ILT suits compact circuit designs. It meets stringent automotive standards including AEC-Q3 and AEC-Q100, ensuring reliability in automotive and industrial environments with operating temperatures from -40°C to 125°C.
This amplifier's rail-to-rail output and wide bandwidth simplify design for current sensing, signal conditioning, and low-level sensor signal amplification in industrial, automotive, and laboratory electronics.
Single-channel operational amplifier with 22 MHz gain bandwidth product. Low input bias current of 75 pA for high-accuracy sensor connection. Wide 1.8V to 5.5V supply voltage range for flexible applications. Extremely low input offset voltage maximum 200 μV for precise amplification.
Fast slew rate at 11 V/μs ensures high-speed signal response. Compact and lightweight SOT-23 package suitable for surface mount technology. Wide industrial operating temperature range from -40°C to 125°C. Compliant with automotive standards AEC-Q3 & AEC-Q100 for automotive-grade quality.
This product is suitable for industrial automation, sensor signal conditioning, automotive electronics, laboratory instruments, and communication systems requiring precise and fast analog signal processing.
Explore more Operational Amplifiers and electronic components in the semiconductor category at EnvMart to find compatible devices and accessories for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSV7721ILT has a gain bandwidth product of 22 MHz, making it suitable for high-performance applications.
It operates on a supply voltage range from 1.8V to 5.5V, providing flexibility for various electronic circuits.
The SOT-23 package measures 3 mm in length, 1.75 mm in width, and 1.45 mm in height.
The TSV7721ILT features a low input bias current of 75 pA, which is beneficial for high-accuracy sensing applications.
The maximum input offset voltage for this operational amplifier is 200 μV, allowing for precise signal amplification.
It has a fast slew rate of 11 V/μs, ensuring rapid response times for signal changes.
The operational amplifier operates within a wide temperature range from -40°C to 125°C, suitable for harsh environments.
This model complies with AEC-Q3 and AEC-Q100 automotive standards, ensuring reliability in automotive applications.
It is a single-channel operational amplifier, designed for specific applications requiring one input channel.
The input offset current is specified at 20 pA, contributing to its high accuracy in signal processing.
This operational amplifier is suitable for industrial automation, sensor signal conditioning, automotive electronics, and laboratory instruments.
It features a surface mount type, specifically designed for compact circuit designs.
