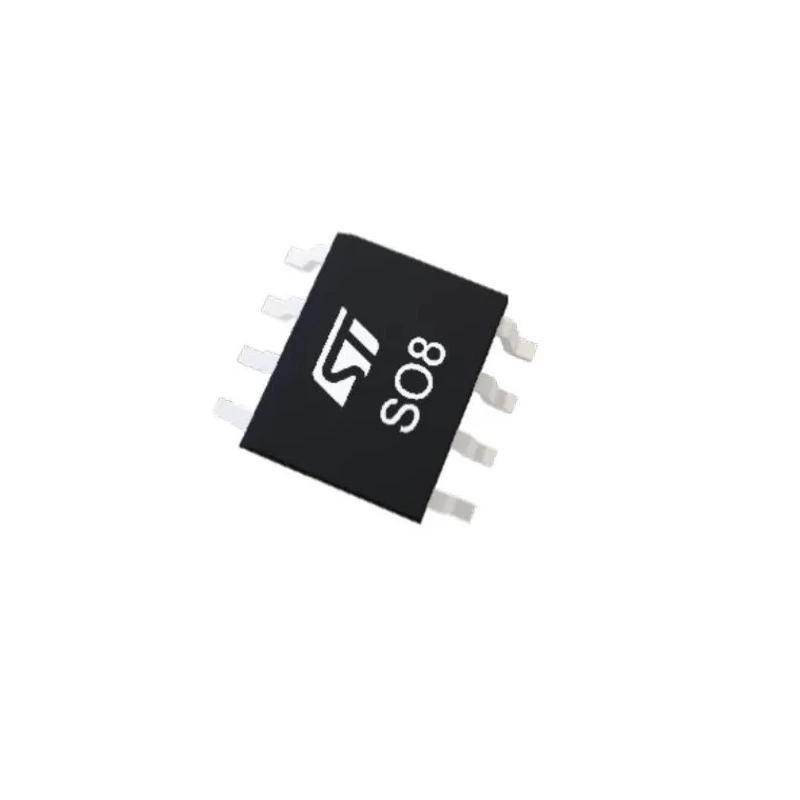

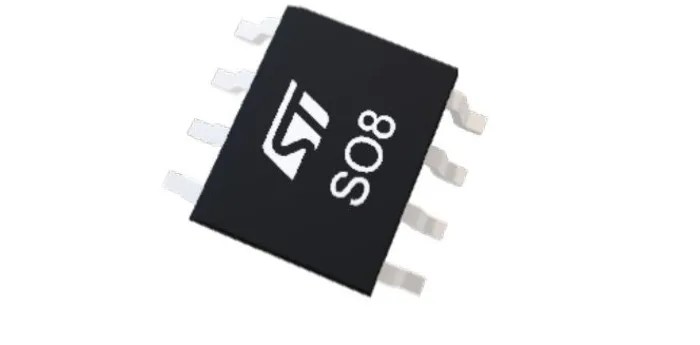

STMicroelectronics Operational Amplifier Dual Channel 22 MHz Gain Bandwidth SO-8 5.5V TSV7722IYDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.1mm |
| Length | 3mm |
| Model | TSV7722IYDT |
| Width | 3mm |
| Mount Type | Surface |
| Series | TSV7722 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO-8 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | ESDA-JS-001-2017 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q3, AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 22MHz |
| Input Bias Current | 75 pA |
| Slew Rate | 11V/μs |
| Input Offset Current | 20 pA |
Key Features
- Gain bandwidth product of 22 MHz for high-speed amplification.
- Operates over a supply voltage range from 1.8 V to 5.5 V.
- Low input bias current of 75 pA ensures high measurement accuracy.
- Input offset voltage typically 50 μV reduces errors in precision circuits.
- Rail-to-rail output stage maximizes dynamic range.
- Compact 8-pin SO-8 surface mount package with 3 mm x 3 mm footprint.
- Automotive standard certifications AEC-Q3 and AEC-Q100 for enhanced reliability.
- Wide operating temperature range from -40°C to 125°C supports harsh environments.
Product Description
STMicroelectronics TSV7722IYDT is a dual channel operational amplifier delivering a gain bandwidth product of 22 MHz within a compact 8-pin SO-8 surface mount package. It operates from a supply voltage range of 1.8 V up to 5.5 V, enabling low power consumption applications while maintaining high-speed signal amplification performance.
The device features a low input bias current of 75 pA and a very low input offset voltage, typically 50 μV, making it ideal for high precision measurements and sensor interface circuits requiring minimal error margins. It is designed to work reliably in harsh automotive and industrial environments, complying with AEC-Q3 and AEC-Q100 standards.
The output stage provides rail-to-rail output swing and the input common-mode voltage range includes the low rail, maximizing dynamic range for sensor and instrumentation systems. The amplifier is unity gain stable and specified on a capacitive load of 47 pF, suitable for buffering analog-to-digital converter inputs and ensuring stable operation.
With a compact footprint of 3 mm x 3 mm and a height of 1.1 mm, the SO-8 package fits well in space-constrained PCB designs. The operating temperature range from -40°C to 125°C enables deployment in automotive electronics, industrial process controls, and precision instrumentation.
This operational amplifier series excels in applications where high bandwidth, accuracy, and power efficiency are required such as precision current sensing, photodiode interfaces, and high-speed analog signal conditioning in automotive and industrial sensor systems.
Gain bandwidth product of 22 MHz for high-speed amplification. Low input bias current enhances sensor accuracy. Rail-to-rail output for maximum signal swing. Wide supply voltage range from 1.8 V to 5.5 V. AEC-Q3 and AEC-Q100 automotive qualification for reliability.
Compact SO-8 package suitable for surface mount applications. Operating temperature range from -40°C to 125°C. Ideal for industrial, automotive, and precision sensor applications. Stable operation with capacitive loads such as ADC inputs.
Discover premium quality Operational Amplifiers and semiconductor components at EnvMart for your industrial, automotive, and electronic design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the TSV7722IYDT is 22 MHz, allowing for high-speed amplification.
It operates over a supply voltage range from 1.8 V to 5.5 V, suitable for low power consumption applications.
The input bias current is 75 pA, which helps ensure high measurement accuracy in applications.
The input offset voltage is typically 50 μV, reducing errors in precision circuits.
The operating temperature range is from -40°C to 125°C, making it suitable for harsh environments.
It comes in a compact SO-8 surface mount package with a footprint of 3 mm x 3 mm.
This operational amplifier features two channels, allowing for dual-channel applications.
It complies with AEC-Q3 and AEC-Q100 automotive standards, ensuring enhanced reliability for automotive applications.
The slew rate is 11 V/μs, allowing for rapid signal changes and response.
Yes, it is specified for stable operation with a capacitive load of 47 pF, making it suitable for buffering applications.
The height of the SO-8 package is 1.1 mm, making it suitable for space-constrained PCB designs.
The input offset current is 20 pA, contributing to the overall precision of the amplifier.
