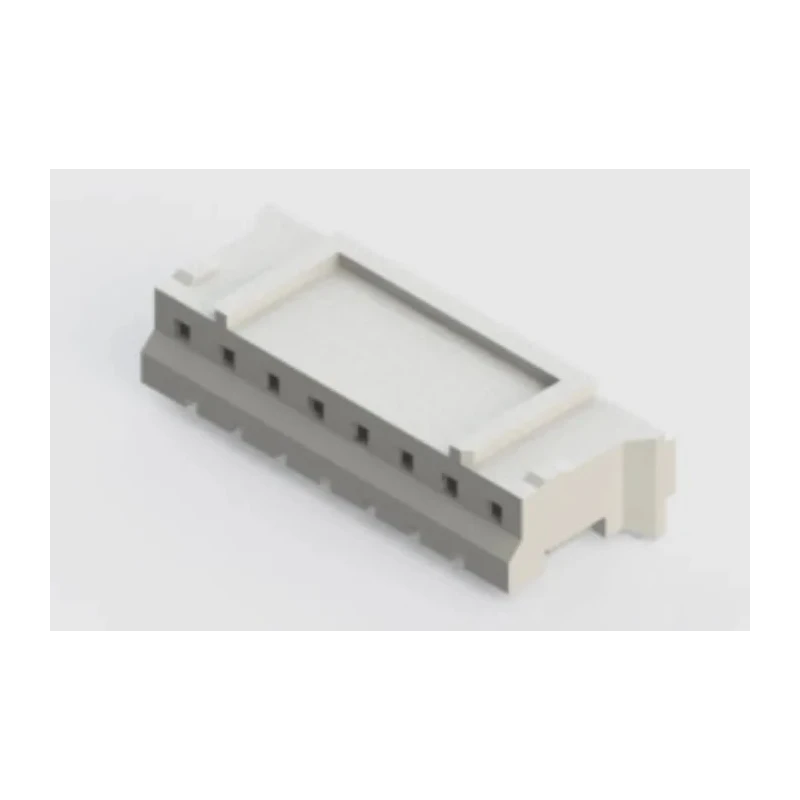

EDAC Female Crimp Connector Housing 2 mm Pitch 8 Way 1 Row Top Entry 140-508-210-011

Free Delivery in India | Lowest Global Shipping Charges

EDAC Female Crimp Connector Housing 2 mm Pitch 8 Way 1 Row Top Entry 140-508-210-011

Name: EDAC Female Crimp Connector Housing 2 mm Pitch 8 Way 1 Row Top Entry 140-508-210-011
Brand: EDAC
SKU: 176344
Price: 0.12 USD
Availability: InStock



Category Connector Housing Brand EDAC Condition New

Specifications

Country of Origin	China
Brand	EDAC
Orientation	Top Entry
Length	17.8mm
Width	4.4mm
Mount Type	Surface
Housing Material	Polyamide 66
Number of Rows	1
Pitch	2mm
For Use With	High-Density Connection Of Internal Wires To Pcb
Standards/Approvals	RoHS
Number of Contacts	8
Connector Gender	Female

Key Features

Compact surface-mount housing made from durable Polyamide 66 material.
Top entry orientation facilitates easy insertion and connection of female contacts.
Complies with RoHS standards ensuring environmental and hazardous substance compliance.
Suitable for industrial and electronic applications requiring precise wire-to-board interfacing.
Operating temperature ranges from -40°C to +105°C for diverse environments.
Features low profile insulator body with board retention contacts for secure placement.
Insulation resistance of minimum 1000 megaohms enhances safety and reliability.
Compact dimensions of 17.8 mm length and 4.4 mm width enable space-saving PCB layouts.

Product Description

EDAC 140-508-210-011 female crimp connector housing is engineered for high-density connection of internal wires to printed circuit boards (PCBs) featuring an 8-way, 1-row configuration and 2 mm pitch. Manufactured using robust Polyamide 66 material, this surface mount connector housing provides durability and chemical resistance suitable for demanding industrial and electronic environments.

The top entry orientation simplifies the assembly process by allowing convenient insertion of female crimp contacts. Its low profile insulator body minimizes space usage on PCBs, making it ideal for compact electronic designs.

Designed to meet RoHS compliance standards, the connector housing restricts hazardous substances, aligning with environmental safety regulations. It operates reliably from -40°C to +105°C, catering to a wide range of temperatures encountered in industrial, manufacturing, and power electronics applications.

Additional features include board retention contacts to ensure secure placement on PCBs and an insulation resistance of at least 1000 megaohms, enhancing electrical safety and insulation integrity.

The connector's precise dimensions of 17.8 mm length and 4.4 mm width facilitate dense PCB layouts without sacrificing performance or reliability, which is critical in communications, instrumentation, and control systems.

Compact surface-mount housing in Polyamide 66 material. Top entry for efficient connection of female crimp contacts. Compliance with RoHS environmental standards. Wide operating temperature range from -40°C to +105°C. Low profile insulator body enabling compact PCB design.

High insulation resistance of 1000 megaohms minimum. Board retention contacts ensure stable mounting. Precise dimensions of 17.8 mm length and 4.4 mm width. Suitable for industrial, electronic, and power electronics applications.

This Connector Housing is an indispensable component for high-density wire-to-board connections in electronics manufacturing, laboratories, industrial automation, and commercial electrical assemblies. For more specialized electronics components and industrial connectors, explore the extensive collection at EnvMart.
