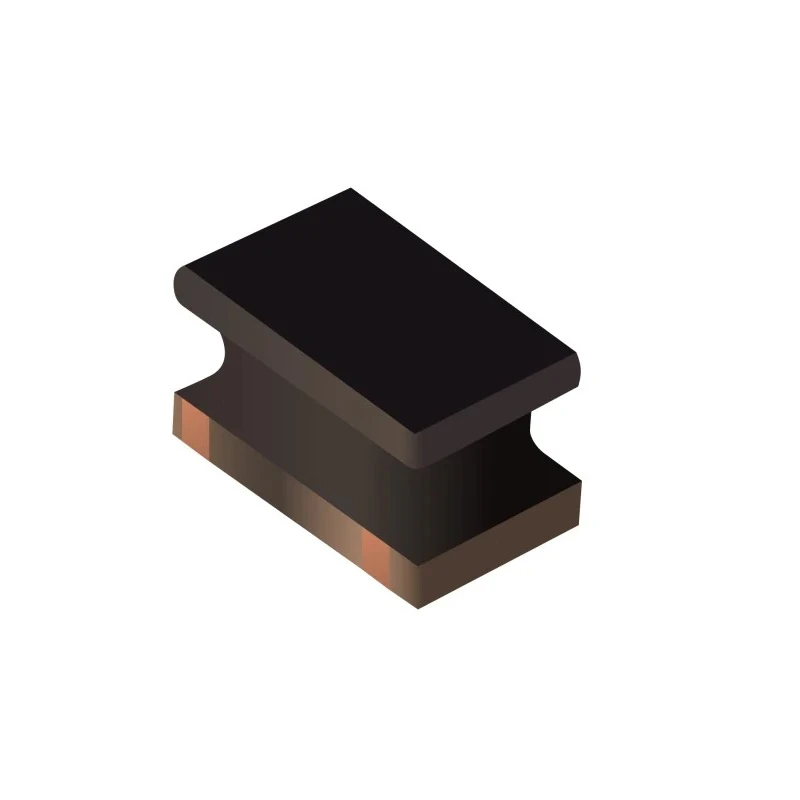

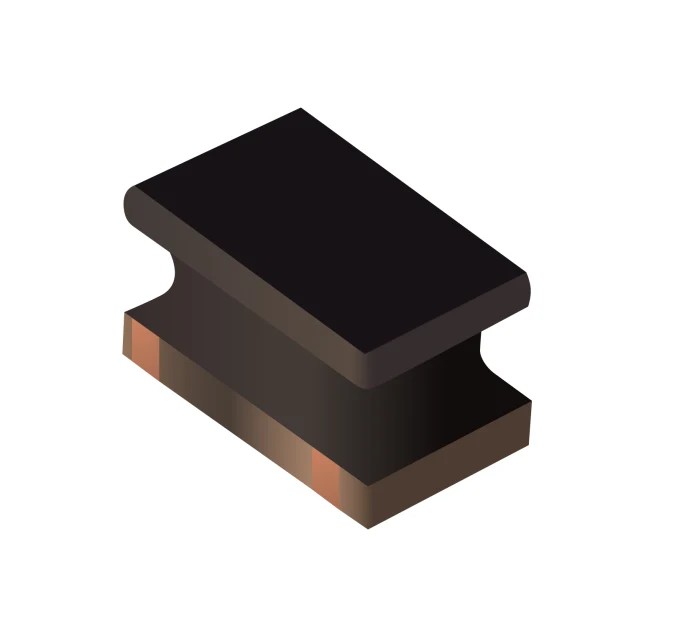

Bourns 2012 Shielded Power Inductor with Ferrite Core 6.8 μH Semi Shielded ±30% 0.7 A Idc Q14 SRN2012T

Bourns SRN2012T 2012 Shielded Power Inductor is a semi shielded power inductor with a ferrite core, delivering an inductance of 6.8 μH and a maximum DC current rating of 0.7 A Idc. The device is optimized for use in surface mount applications, featuring a compact 2012 case size with dimensions of 2 mm length, 1.2 mm height, and 1.2 mm depth.

Its tolerance of ±30% and high quality factor (Q) of 14 make it suitable for various industrial and automotive electronic circuits. The inductor operates efficiently within a wide temperature range from -40°C to 125°C, meeting AEC-Q200 automotive reliability standards, making it an excellent choice for power management in automotive and industrial equipment.

Constructed with a ferrite magnetic core, this semi shielded inductor minimizes electromagnetic interference while providing stable inductance. Its low DC resistance of 1.76 Ω allows for reduced power loss, while the maximum self-resonant frequency of 208 MHz ensures performance in high-frequency switching power supplies and filtering circuits.

This Bourns SRN2012T inductor is RoHS compliant and free of halogen compounds, supporting environmentally responsible manufacturing processes. Packaging is supplied on a reel, facilitating high volume automated PCB assembly processes.

Applications include power converters, automotive electronics, industrial control systems, and power conditioning in commercial electronics. The compact size and reliable electrical properties make it suitable for use in dense PCB layouts requiring robust inductance components.

This power inductor features a 2012 package size and a high quality factor of 14. It operates reliably between -40°C to 125°C temperature range. The inductance tolerance is ±30%, suitable for varied electronic applications.

The device includes shielding for reduced electromagnetic interference. It offers low DC resistance of 1.76 Ω for efficient power handling. The maximum self-resonant frequency is rated at 208 MHz, ensuring high-frequency performance.

The core material is high-quality ferrite, providing magnetically efficient operation. Compliant with RoHS, Halogen Free standards and AEC-Q200 automotive certification. Browse the Electronics Components category at EnvMart for more surface mount inductors and power Inductors to support your electronics design and manufacturing needs.
