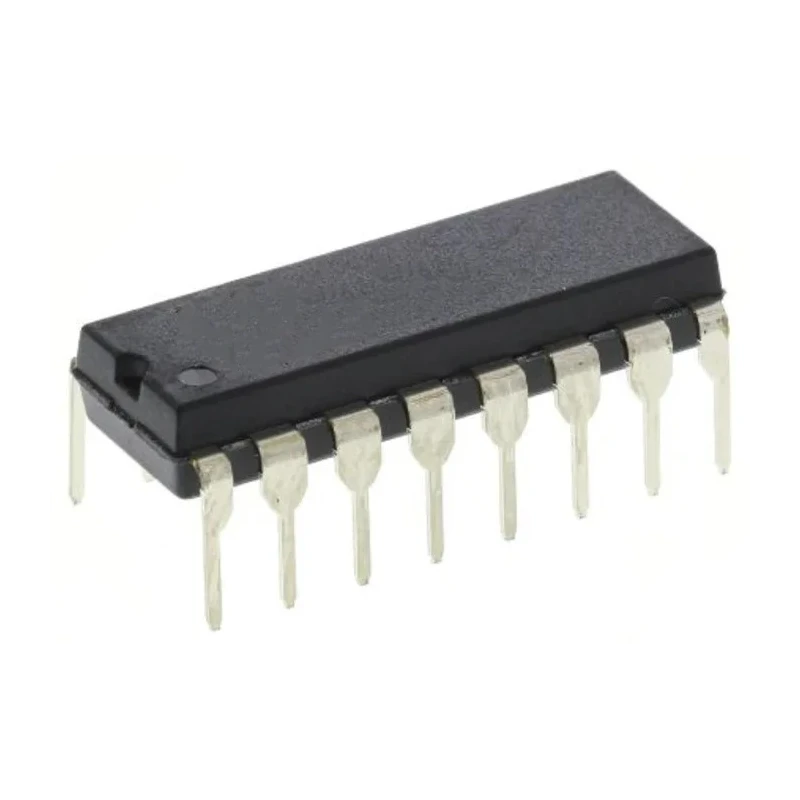

Renesas Electronics Line Transceiver, 3 State, Inverting Logic, 5V, 16-Pin PDIP HIN202ECPZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 5.33mm |
| Length | 19.68mm |
| Model | HIN202ECPZ |
| Width | 8.25mm |
| Mount Type | Through Hole |
| Output type | 3 State |
| Series | HIN202 |
| Input Type | CMOS, TTL |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 15mA |
Key Features
- This transceiver operates with a maximum supply voltage of 5V and supports CMOS and TTL input types.
- The device features an onboard voltage doubler and inverter for efficient operation with low power consumption.
- It complies with EIA high-speed RS-232E and V.28 specifications without requiring +/-12V supply.
- The package is through-hole mounted with a PDIP form factor, measuring 19.68mm length, 8.25mm width, and 5.33mm height.
- Rated for operation between 0°C and 70°C, with a maximum propagation delay time of 10μs at capacitive load.
- The supply current is 15mA, making it suitable for low power interface applications.
Product Description
Renesas Electronics HIN202ECPZ line transceiver is a CMOS logic family device designed for RS-232 line interface applications. It provides 3 state, inverting logic functionality in a compact 16-pin PDIP package, requiring only a single +5V power supply. This IC integrates an onboard voltage doubler and inverter, which eliminates the need for a +/-12V supply voltage commonly required by RS-232 standards.
The transceiver meets all EIA high-speed RS-232E and V.28 specifications, delivering reliable performance in communication equipment. Its low power consumption and 15mA supply current make it ideal for embedded systems and low power devices.
The device supports CMOS and TTL input types while providing 3 state output suitable for bus communication and multiple device interfacing. Operating temperature ranges from 0°C to 70°C ensure reliability in typical industrial environments.
The 16-pin PDIP package facilitates easy through-hole mounting in prototype and production boards. Physical dimensions include a length of 19.68mm, width of 8.25mm, and height of 5.33mm, supporting compact system designs.
Operates with single +5V power supply. Onboard voltage doubler and inverter reduces external component count. Meets EIA high-speed RS-232E and V.28 specifications for line interface ICs. Low supply current of 15mA for efficient power usage.
16-pin, through-hole PDIP package suitable for various PCB layouts. Operates reliably within a 0°C to 70°C temperature range.
This transceiver IC is commonly used in industrial, communications, and embedded system applications where reliable serial communication interface is required without the need for high voltage power supplies.
Explore more semiconductor and Line Interface ICs on EnvMart for your electronics design and manufacturing needs.
