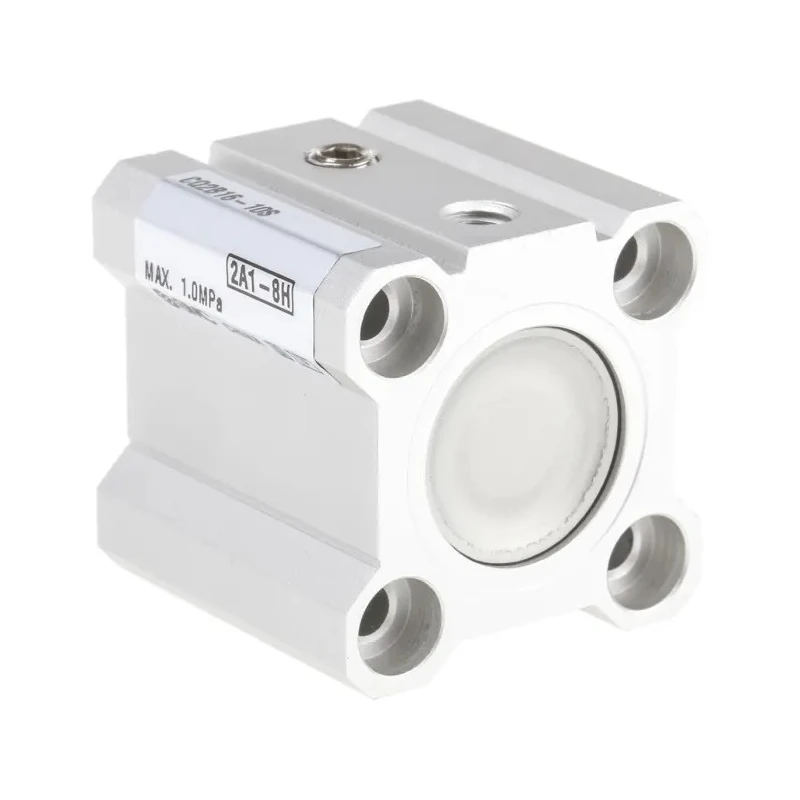

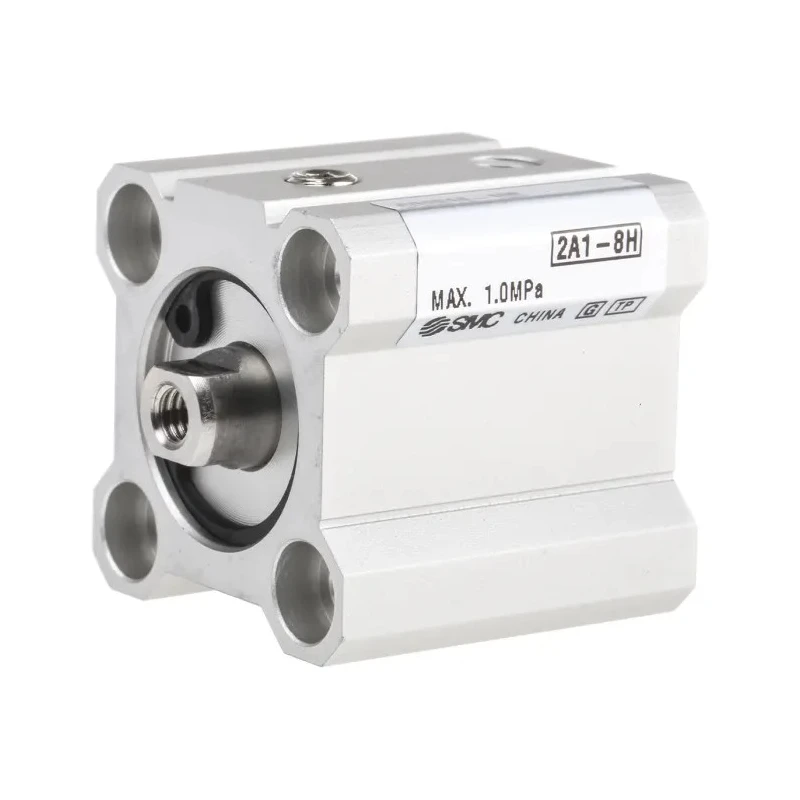

SMC Pneumatic Compact Cylinder 16mm Bore, 10mm Stroke, Aluminium Alloy Body, Single Acting CQ2B16-10S
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 29mm |
| Length | 32mm |
| Model | CQ2B16-10S |
| Gross Weight | 51g |
| Width | 29mm |
| Mount Type | Through Hole |
| Series | CQ2 |
| Maximum Operating Temperature | 70°C |
| Maximum Pressure | 10 bar |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 10mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Single Acting |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
Key Features
- This cylinder belongs to the CQ2 series known for compact dimensions and reliable performance.
- It has a maximum operating pressure of 1.5 Mpa (10 bar) suitable for various pneumatic applications.
- Constructed from anodised aluminium alloy providing durability and corrosion resistance.
- Designed with a through-hole mount type for secure and flexible installation.
- The stroke length is 10mm with a total cylinder length of 32mm, height and width both 29mm for compact integration.
- The piston rod is female threaded with a single rod type, following a metric thread standard.
- Operable in temperatures ranging from -10°C to 70°C for diverse environmental conditions.
- The maximum piston speed is 500mm/s suitable for efficient pneumatic actuation.
Product Description
SMC CQ2B16-10S is a pneumatic compact cylinder from the CQ2 series, engineered for precise and efficient single acting pneumatic actuation. It features a 16mm bore diameter and a 10mm stroke length with an aluminium alloy body, providing a balance of strength and light weight.
The cylinder supports a maximum operating pressure of 1.5 Mpa (equivalent to 10 bar) and a piston speed up to 500mm/s, suitable for automation, manufacturing, and material handling applications. The anodised aluminium alloy construction ensures corrosion resistance and durability in industrial environments.
With through-hole mounting and compact dimensions measuring 32mm in length, and 29mm in both height and width, this cylinder fits easily into constrained spaces. The female threaded single piston rod with metric threading aids in secure connection and compatibility with standard fittings.
Designed to withstand temperature ranges from -10°C to 70°C, it can operate reliably in various factory or mechanical fluid power settings. Its lightweight design of approximately 51 grams assists in applications where reducing mass is critical.
Compact design with a 16mm bore and 10mm stroke length. Aluminium alloy anodised body for enhanced corrosion resistance. Single acting pneumatic operation with through-hole mounting. Maximum operating pressure of 1.5 Mpa (10 bar) for robust performance.
Piston rod female thread with metric standard for easy installation. Operates efficiently between -10°C and 70°C temperature range. Maximum piston speed of 500mm/s for fast actuation. Compact dimensions (32mm length, 29mm height & width) for flexible use.
Lightweight at 51 grams, ideal for space and weight sensitive applications.
This product is suitable for pneumatic control in industrial automation, mechanical manufacturing, HVAC systems, and material handling equipment. SMC, a recognized global brand, ensures high-quality pneumatic components with proven reliability in demanding industrial environments.
Explore more Pneumatic Cylinders and actuators in the EnvMart catalogue for complementary solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 1.5 Mpa, which is equivalent to 10 bar.
This unit has a total length of 32mm, a height of 29mm, and a width of 29mm, making it compact for various applications.
The stroke length of this pneumatic cylinder is 10mm.
It is constructed from anodised aluminium alloy, which provides durability and corrosion resistance.
This cylinder can operate in temperatures ranging from -10°C to 70°C.
The maximum piston speed is 500mm/s, allowing for efficient pneumatic actuation.
The piston rod is female threaded and follows a metric thread standard, designed for secure connections.
It features a through-hole mount type, allowing for flexible installation options.
This model weighs approximately 51 grams, making it lightweight for applications where mass is critical.
It operates as a single acting cylinder, which is suitable for various pneumatic applications.
It is suitable for pneumatic control in industrial automation, mechanical manufacturing, HVAC systems, and material handling equipment.
This model is part of the CQ2 series, known for its compact dimensions and reliable performance.
