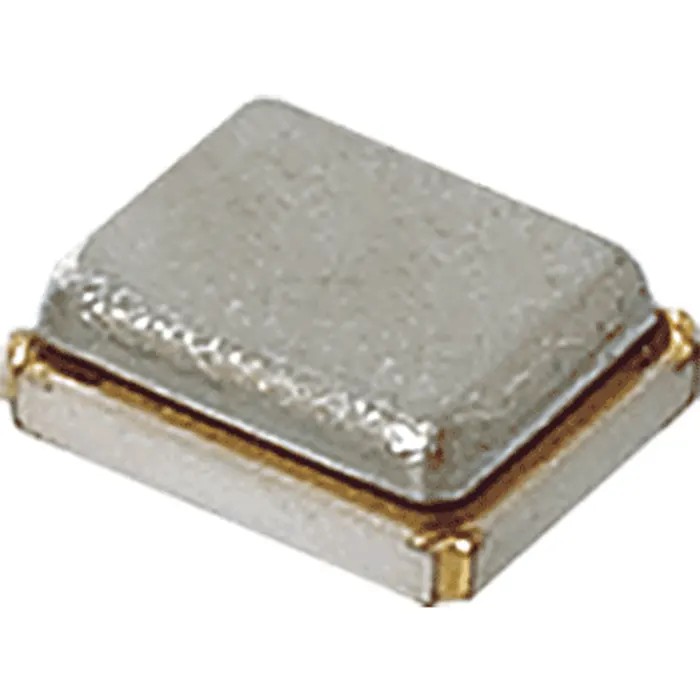

Murata 24 MHz Crystal Unit Surface Mount 4-Pin 1.6 mm x 2 mm x 0.65 mm ±10 ppm Frequency Tolerance XRCGB24M000F1SBBR0

Murata XRCGB24M000F1SBBR0 is a precision 24 MHz crystal unit designed for surface mount applications offering superior frequency stability of ±10 ppm, making it ideal for demanding electronic circuits.

The crystal unit features a small and compact surface mount design with 4 pins, having dimensions of 1.6 mm length, 2 mm width, and 0.65 mm height, reducing PCB space requirements.

It operates with a load capacitance of 8 pF and exhibits a series resistance of 70 Ω, contributing to consistent oscillation and signal accuracy. The operating temperature range spans from -40°C to 105°C, supporting diverse industrial, communication, and consumer electronics environments.

This crystal unit complies with the RoHS directive, eliminating lead content and aligning with environmental regulations. Typical applications include communication clocks for Wi-Fi and Bluetooth devices, PCs, and portable visual equipment, where precise frequency control is critical.

The unit’s small size and high accuracy support modern compact electronic designs with stringent space and performance requirements. Operates at 24 MHz with ±10 ppm frequency tolerance. Surface mount 4-pin package with compact dimensions.

8 pF load capacitance ensuring circuit compatibility. Wide operating temperature range from -40°C to 105°C. 70 Ω series resistance for signal integrity. Lead-free and RoHS compliant for environmental safety. Manufactured in Japan with high quality standards.

Suitable for communication clocks including Wi-Fi and Bluetooth applications. Reduced mounting area ideal for small portable equipment. Explore more products in Crystal Units and Electronics Components at EnvMart for your industrial, communication, and electronics design needs.
