| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1mm |
| Length | 4mm |
| Model | 2EDL8124GXUMA1 |
| Width | 4mm |
| Mount Type | Through Hole |
| Series | 2EDL8124G |
| Output Current | 4A |
| Maximum Operating Temperature | 150°C |
| Package Type | VDSON-8 |
| Minimum Operating Temperature | -40°C |
| Input Voltage | 20V |
| Number of Pins | 8 |

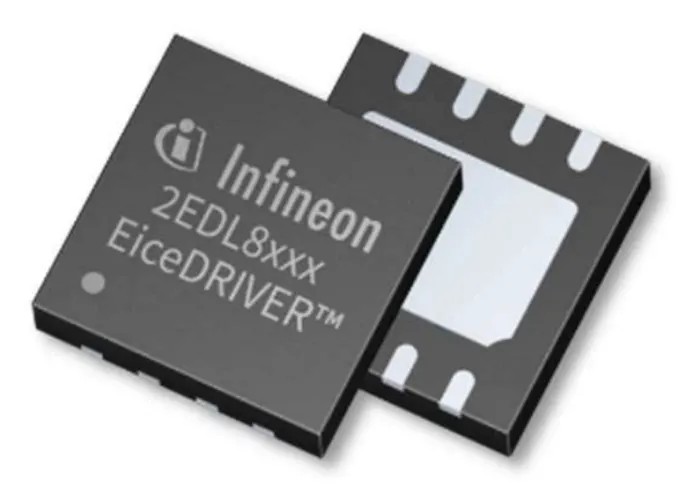

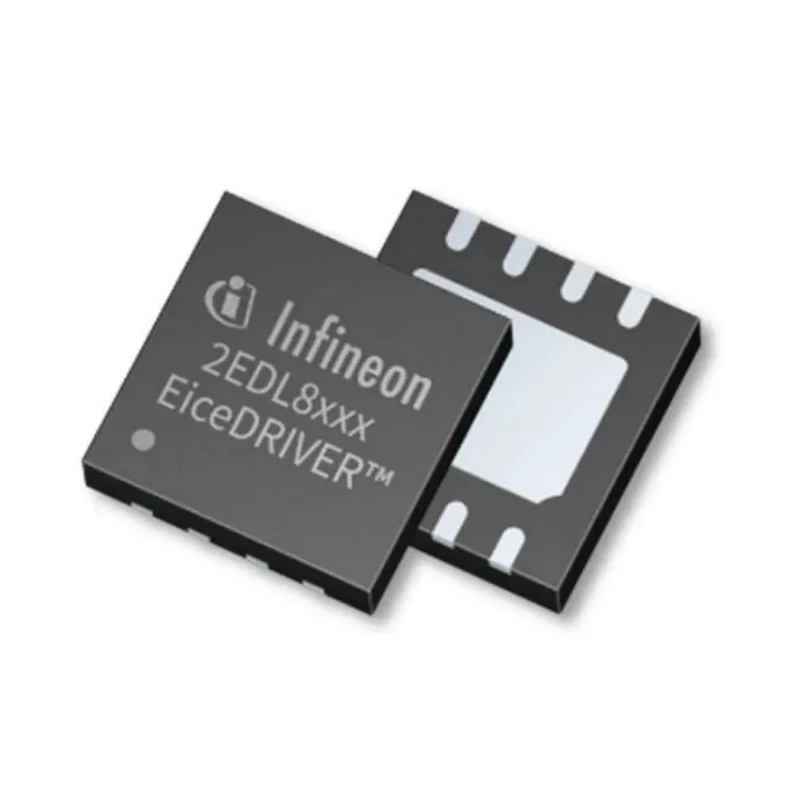

Infineon 2EDL8124GXUMA1 is a high-side low-side LED Driver IC designed for advanced switching converter applications such as telecom and datacom systems. The device supports an input voltage of 20V DC and provides 4A output current capability in a compact 8-Pin VDSON-8 package measuring 4mm length, 4mm width, and 1mm height. Its wide operating temperature range from -40°C to 150°C ensures reliability in industrial environments.
The IC incorporates built-in hysteresis on its differential inputs to improve noise immunity, making it resilient against electrical disturbances commonly encountered in LED lighting and power electronics applications. Additionally, the 2EDL8124GXUMA1 features inherent shoot-through protection that enhances system robustness by preventing simultaneous conduction of high-side and low-side switches.
The through-hole mounting package type facilitates easy integration on printed circuit boards. This product is ideal for use in LED lighting components within industrial, telecommunications, and datacom infrastructure requiring efficient and reliable LED driver solutions.
Operates with 20 volts DC input voltage. Capable of 4 amperes output current suitable for high-power LEDs. Compact VDSON-8 package for space-constrained designs. Wide temperature tolerance from -40°C to 150°C for harsh environment applications.
Enhanced noise immunity with built-in input hysteresis. Shoot-through protection for greater system stability. Through hole mounting for reliable and easy PCB assembly. Supports advanced switching converter topologies in telecom/datacom systems.
This Infineon LED Driver IC is part of the 2EDL8124G series, designed to deliver dependable performance in demanding LED lighting and power management scenarios. Browse EnvMart’s Electronics Components category for a wide range of LED Driver ICs and related solutions.
