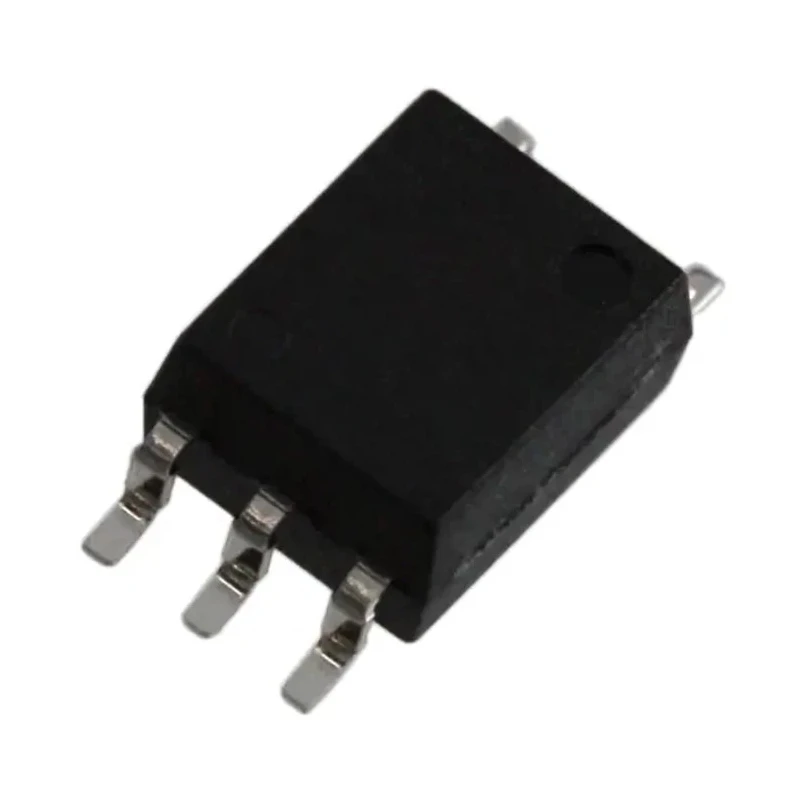

Toshiba AC Input Photocoupler Surface Mount 4-Pin SO Package Transistor Output TLP3906 TLP3906(TPL,E(O

Free Delivery in India | Lowest Global Shipping Charges

Toshiba AC Input Photocoupler Surface Mount 4-Pin SO Package Transistor Output TLP3906 TLP3906(TPL,E(O

Name: Toshiba AC Input Photocoupler Surface Mount 4-Pin SO Package Transistor Output TLP3906 TLP3906(TPL,E(O
Brand: Toshiba
SKU: 174546
Price: 1.52 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Model	TLP3906(TPL,E(O
Mount Type	Surface
Output type	Transistor
Series	TLP
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-40°C
Maximum input current	30mA
Number Of Channels	1
Standards/Approvals	UL, RoHS, cUL, CSA, VDE
Maximum Forward Voltage	1.8V
Number of Pins	4
Input Current Type	AC

Key Features

The device features an infrared LED optically coupled to a photodiode array optimized for MOS gate drive applications.
It supports a maximum forward voltage of 1.8 V and input current up to 30 mA AC.
Isolation voltage rating is 3750 Vrms ensuring high-voltage safety in industrial circuits.
Operating temperature range spans from -40°C to 125°C allowing use in various environmental conditions.
The package type is SO with 4 pins suitable for surface mounting on PCBs.
Certified under UL, RoHS, cUL, CSA, and VDE standards for quality and environmental compliance.
This photocoupler is part of the TLP series, ensuring consistency and reliability in electronic design.

Product Description

Toshiba TLP3906(TPL,E(O) is an AC input photocoupler designed for surface mounting, housed in a compact 4-pin SO package. It combines an infrared LED with an optically coupled photodiode array connected in series to provide transistor output. The device is tailored for industrial and electronic applications where high electrical isolation and signal integrity are paramount.

This photocoupler features a maximum forward voltage of 1.8 V and supports an input current of up to 30 mA AC. It provides robust isolation voltage of 3750 Vrms, which ensures safety and noise immunity in high-voltage environments. Designed to operate reliably over a wide temperature range from -40°C to 125°C, it is suitable for harsh and variable environmental conditions often encountered in industrial and manufacturing settings.

The 4-pin SO package facilitates surface mounting on printed circuit boards, improving manufacturing efficiency and device miniaturization. The device complies with multiple international safety and environmental standards including UL, RoHS, cUL, CSA, and VDE, ensuring both quality and regulatory compliance.

Typical uses include MOS gate driver circuits and other optoelectronic isolation applications in industries such as power electronics, automation, instrumentation, and control systems.

The device uses an infrared LED optically coupled with a photodiode array for signal transmission. Maximum forward voltage is 1.8 V with a maximum input current of 30 mA AC. Offers high isolation voltage rating of 3750 Vrms for safety and noise suppression.

Operates reliably from -40°C up to 125°C ambient temperature. Compact surface mount SO package with 4 pins supports efficient PCB assembly. Meets UL, RoHS, cUL, CSA, and VDE certification standards. Part of the Toshiba TLP series designed for optocoupler applications.

Browse Toshiba Optocouplers and related electronic components at EnvMart for industrial and manufacturing applications requiring high-quality optoelectronic isolation solutions.
