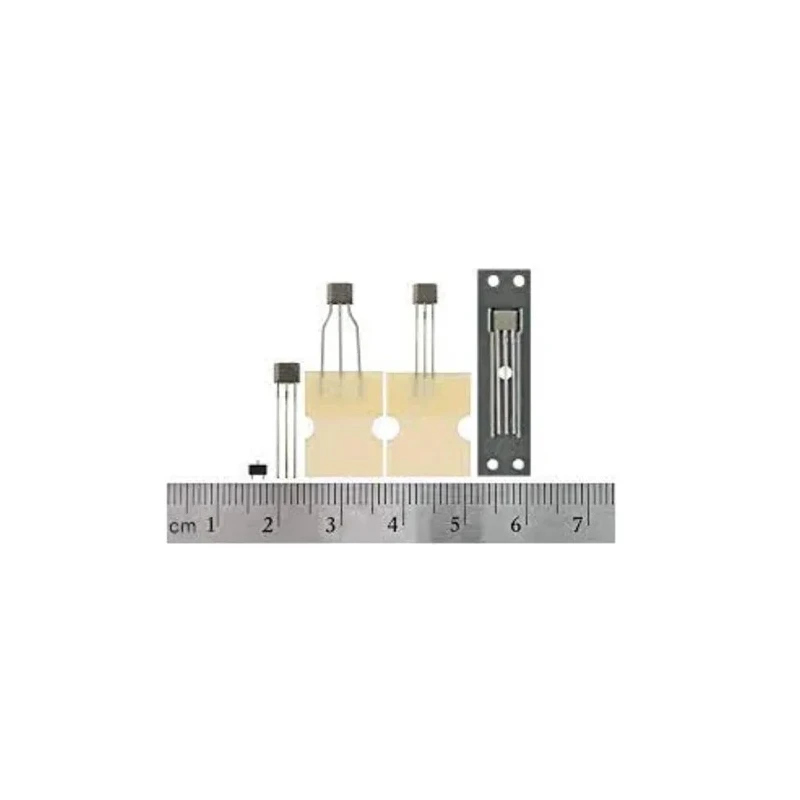

Honeywell Technologies Surface Hall Effect Sensor 3 V - 24 V, Digital Technology, SOT-23 3-Pin Package SS361RT

Free Delivery in India | Lowest Global Shipping Charges

Honeywell Technologies Surface Hall Effect Sensor 3 V - 24 V, Digital Technology, SOT-23 3-Pin Package SS361RT

Name: Honeywell Technologies Surface Hall Effect Sensor 3 V - 24 V, Digital Technology, SOT-23 3-Pin Package SS361RT
Brand: Honeywell Technologies
SKU: 174489
Price: 1.45 USD
Availability: InStock



Category Hall Effect Sensor Brand Honeywell Technologies Condition New

Specifications

Country of Origin	China
Brand	Honeywell Technologies
Height	1.4mm
Length	2.9mm
Model	SS361RT
Technology	Digital
Sensor Type	Hall Effect
Width	1.6mm
Mount Type	Surface
Series	SS360
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Supply Voltage	24V
Minimum Supply Voltage	3V
Supply Current	3.5mA
Magnetic Type	Bipolar

Key Features

The sensor operates with bipolar magnetic fields, making it suitable for detecting alternating north and south poles.
It features enhanced sensitivity and a wide operating voltage range from 3 V to 24 V.
Built-in reverse voltage protection ensures robustness and durability in varied electrical conditions.
The compact SOT-23 package offers a small form factor with dimensions 2.9 mm length, 1.6 mm width, and 1.4 mm height.
Designed to operate safely within a temperature range of -40°C to +150°C.
Supply current is low at 3.5 mA, promoting energy efficiency.
The device is part of the SS360 series and is suitable for industrial and electronic applications requiring precise magnetic field sensing.
Manufactured in China and is not automotive certified.

Product Description

Honeywell Technologies SS361RT Surface Hall Effect Sensor is a highly sensitive digital hall-effect device designed for surface mounting in electronic circuits. Packaged in a compact SOT-23 3-pin package, it enables robust sensing of bipolar magnetic fields generated by permanent magnets or electromagnets. The device operates on a wide voltage supply range between 3 V and 24 V, making it versatile for various industrial and commercial electronics applications.

This sensor provides enhanced sensitivity allowing accurate detection of alternating magnetic poles, critical in position sensing, speed detection, and other motion-sensing applications. Its built-in reverse voltage protection safeguards the integrated circuit against electrical damage, ensuring reliable operation under adverse conditions.

The SS361RT device is designed to function across a broad operating temperature range from -40°C up to 150°C, suitable for harsh environments encountered in industrial electronics and automotive applications, although it does not carry automotive certification. The low supply current of 3.5 mA makes it energy efficient for battery-powered and low-power systems.

With physical dimensions of 2.9 mm length, 1.6 mm width, and 1.4 mm height, the small SOT-23 package facilitates compact PCB layouts and integration. The sensor belongs to the SS360 series, known for its durability and accuracy in magnetic sensing.

Typical applications include industrial automation, motor control, non-contact position sensing, and equipment monitoring in laboratory, manufacturing, and consumer electronics sectors.

The sensor detects bipolar magnetic fields using digital hall-effect technology. Wide supply voltage range from 3 V to 24 V for diverse applications. Robust IC design with built-in reverse polarity protection. Small SOT-23 3-pin surface mount package for compact electronics.

Operates reliably from -40°C to +150°C operating temperature range. Low operating current of 3.5 mA for energy efficient designs. Manufactured in China ensuring consistent quality. Explore the range of sensors and electronic components at EnvMart for precise and reliable industrial and consumer solutions.
