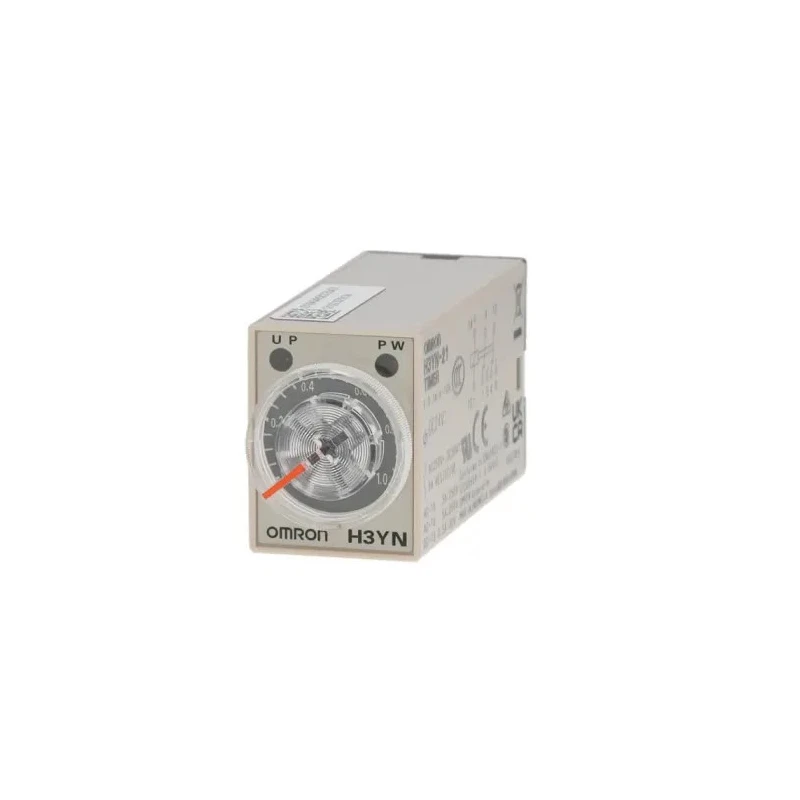

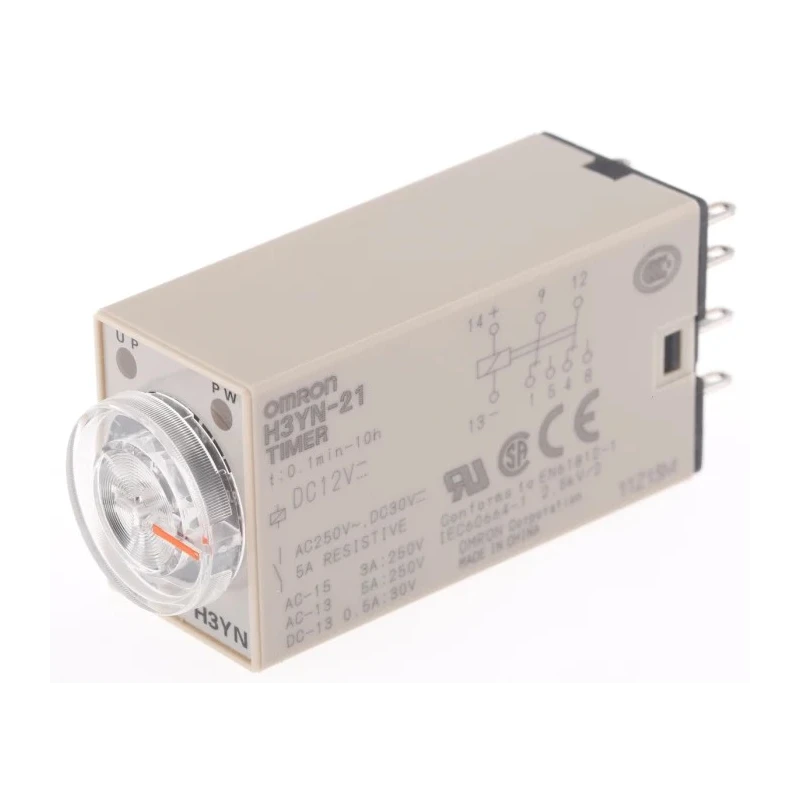

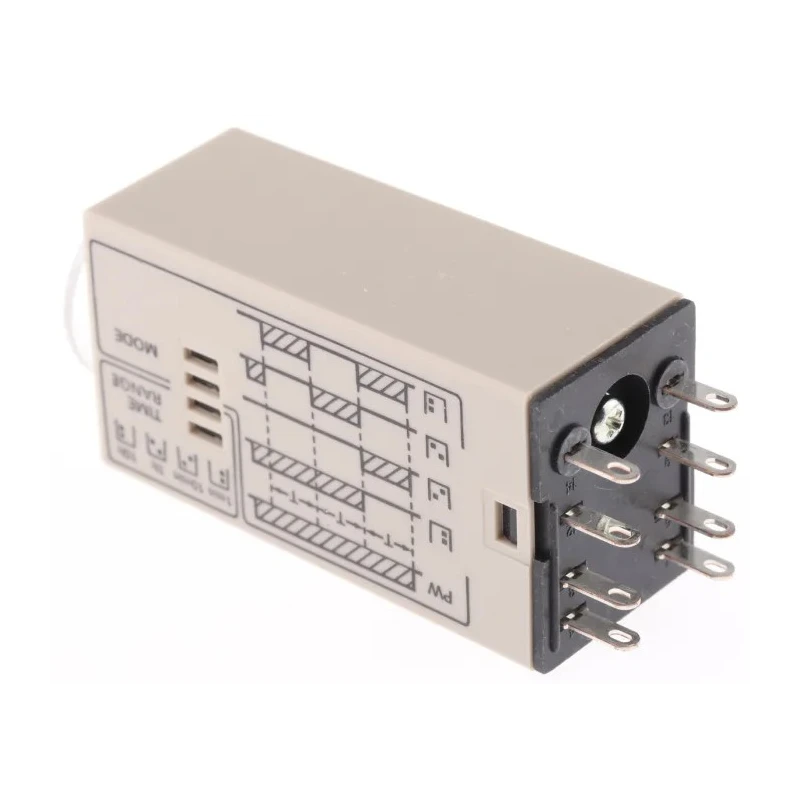

Omron H3YN Series DIN Rail Panel Mount Timer Relay 2-Contact 125 V DC 12 V AC 0.1 min to 10 h Multifunction

Free Delivery in India | Lowest Global Shipping Charges

Omron H3YN Series DIN Rail Panel Mount Timer Relay 2-Contact 125 V DC 12 V AC 0.1 min to 10 h Multifunction

Name: Omron H3YN Series DIN Rail Panel Mount Timer Relay 2-Contact 125 V DC 12 V AC 0.1 min to 10 h Multifunction
Brand: Omron
SKU: 174346
Price: 80.94 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	63mm
Length	28mm
Model	H3YN
IP Rating	IP40
Mode	Multifunction
Width	21.5mm
Mount Type	DIN Rail, Panel Mount
Series	H3YN
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-10°C
Time Range	0.1 min to 10 h
Terminal type	Socket
Number of Contacts	2
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	5A
Supply DC Voltage	125 V dc
Supply AC Voltage	12V ac

Key Features

Equipped with dual-contact (DPDT) configuration suitable for complex switching tasks.
Supports precise interval timer functions for accurate operation control.
Compact design compatible with DIN rail and panel mount installations.
Designed to operate within temperature range of -10°C to 50°C, ideal for various industrial environments.
Switches up to 5A at 250V AC, supporting resistive load handling.
IP40 rated to protect against solid particle ingress in industrial settings.
User-friendly time setting knob enables hassle-free adjustments.
Complies with international standards including EN 61812-1, UL 508, CE, CSA C22.2 No. 14, Lloyds, CCC, IEC 60664-1.

Product Description

Omron H3YN-21 DC12 is a multifunction DIN rail and panel mount timer relay engineered for automation and control systems requiring precision timing and reliable switching functions. This Timer Relay operates with a supply voltage of 12 V AC and 125 V DC, offering flexible timing ranges from 0.1 minutes up to 10 hours to suit diverse industrial applications.

The relay includes a dual-contact DPDT switching configuration capable of handling up to 5 amperes at 250 volts AC, making it suitable for controlling machinery, power circuits, lighting, HVAC systems, and sequence control processes within manufacturing environments.

Its compact dimensions of 63 mm height, 21.5 mm width, and 28 mm length facilitate space-saving installation on DIN rails or panel mounts. The device features an IP40 rating to protect against solid particles and is designed to operate reliably between -10°C and 50°C, accommodating a wide range of industrial operating conditions.

The user-friendly time setting knob allows easy adjustment of timing intervals to match operational requirements precisely. Compliance with international safety and performance standards such as EN 61812-1, UL 508, CE, CSA C22.2 No. 14, Lloyds, CCC, and IEC 60664-1 ensures dependable and safe operation in critical industrial applications.

Applications include automation control loops, time-sensitive machinery operations, and power circuit delay tasks where accuracy and multifunctional relay timing are essential. Equipped with dual-contact (DPDT) configuration suitable for complex switching tasks.

Supports precise interval timer functions for accurate operation control. Compact design compatible with DIN rail and panel mount installations. Operates reliably within -10°C to 50°C temperature range. Switches up to 5A at 250V AC resistive loads.

IP40 protection against solid particles. User-friendly time control knob. Compliant with major international safety standards. Explore the extensive range of Omron relays and timer solutions available on EnvMart for your industrial automation needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model supports a timing range from 0.1 minutes to 10 hours, allowing for flexible timing applications in various industrial settings.

It can switch up to 250V AC and handle a contact current of 5A, making it suitable for various power circuit applications.

The compact dimensions of this unit are 63 mm in height, 21.5 mm in width, and 28 mm in length, facilitating easy installation in tight spaces.

This timer relay is designed for both DIN rail and panel mount installations, providing versatility in setup options.

It operates reliably within a temperature range of -10°C to 50°C, suitable for various industrial environments.

The H3YN timer relay has an IP40 rating, which protects against solid particle ingress in industrial settings.

It features a user-friendly time setting knob, allowing for easy adjustment of timing intervals to meet operational needs.

This model is suitable for controlling resistive loads, making it applicable in various machinery and power circuit tasks.

It complies with several international standards including EN 61812-1, UL 508, CE, CSA C22.2 No. 14, and IEC 60664-1, ensuring safe operation in critical applications.

This unit utilizes a socket terminal type, which facilitates easy connections during installation.

It is equipped with a dual-contact (DPDT) configuration, suitable for complex switching tasks.

This timer relay is designed for automation control loops, time-sensitive machinery operations, and power circuit delay tasks, where accurate timing is essential.
