ROHM 100 V 10 A Surface Mount Schottky Rectifier Diode 3-Pin DPAK RBQ10BGE10ATL

Free Delivery in India | Lowest Global Shipping Charges

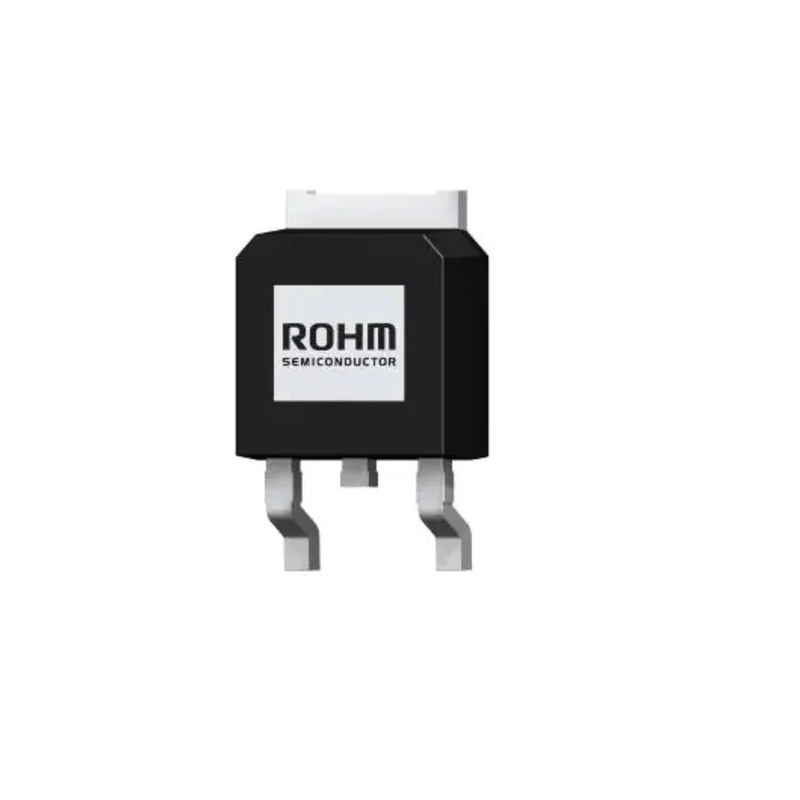

ROHM 100 V 10 A Surface Mount Schottky Rectifier Diode 3-Pin DPAK RBQ10BGE10ATL

Name: ROHM 100 V 10 A Surface Mount Schottky Rectifier Diode 3-Pin DPAK RBQ10BGE10ATL
Brand: ROHM
SKU: 173659
Price: 0.99 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Model	RBQ10BGE10ATL
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	TO-252
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	2x Common Cathode Pair
Rectifier Type	Schottky
Peak Reverse Current Ir	80μA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	0.77V

Key Features

The device features a 100 V peak reverse repetitive voltage.
Maximum continuous forward current is 10 amperes for robust operation.
It has a low forward voltage drop of 0.77 V enhancing efficiency.
Peak reverse current is minimal at 80 microamperes ensuring low leakage.
Designed with a 2x common cathode diode configuration in a cathode common dual type.
Operates reliably between -55°C to 150°C temperature range.
Package type TO-252 enables surface mount applications.
RoHS compliant ensuring environmental safety.

Product Description

ROHM RBQ10BGE10ATL is a surface mount, Schottky barrier rectifier diode designed for high reliability in industrial and commercial switching power supply circuits. It operates at a peak reverse voltage of 100 V and a maximum continuous forward current of 10 A, making it suitable for efficient power management and rectification applications.

The diode's 3-pin DPAK (TO-252) package allows for compact, surface-mounted configurations ideal for modern electronic assemblies. It features a 2-element common cathode configuration and utilizes silicon epitaxial planar construction to minimize reverse leakage current, resulting in a peak reverse current of only 80 µA, which reduces power losses.

The forward voltage drop of 0.77 V contributes to improved efficiency by lowering conduction losses. The device can withstand peak non-repetitive forward surge currents up to 100 A, providing resilience to transient current spikes common in power electronics.

Its operating temperature range from -55°C to 150°C ensures reliable performance over a wide range of conditions, suitable for demanding industrial environments. The diode also conforms to RoHS environmental standards, endorsing its eco-friendly manufacture.

This RBQ series diode from ROHM is optimized for use in switching power supplies, power conversion modules, and other electronic circuits requiring fast, efficient rectification with low power dissipation.

The device has a maximum continuous forward current rating of 10 A ensuring continuous high current handling. The peak reverse repetitive voltage rating of 100 V safeguards circuit components. Common cathode dual diode configuration simplifies circuit design.

The TO-252 package supports robust surface mount technology assembly. Environmentally compliant with RoHS regulations. Suited for industrial, commercial, and power supply semiconductor applications. Explore EnvMart’s wide range of semiconductor components including Schottky diodes by ROHM for reliable power electronics design solutions.
