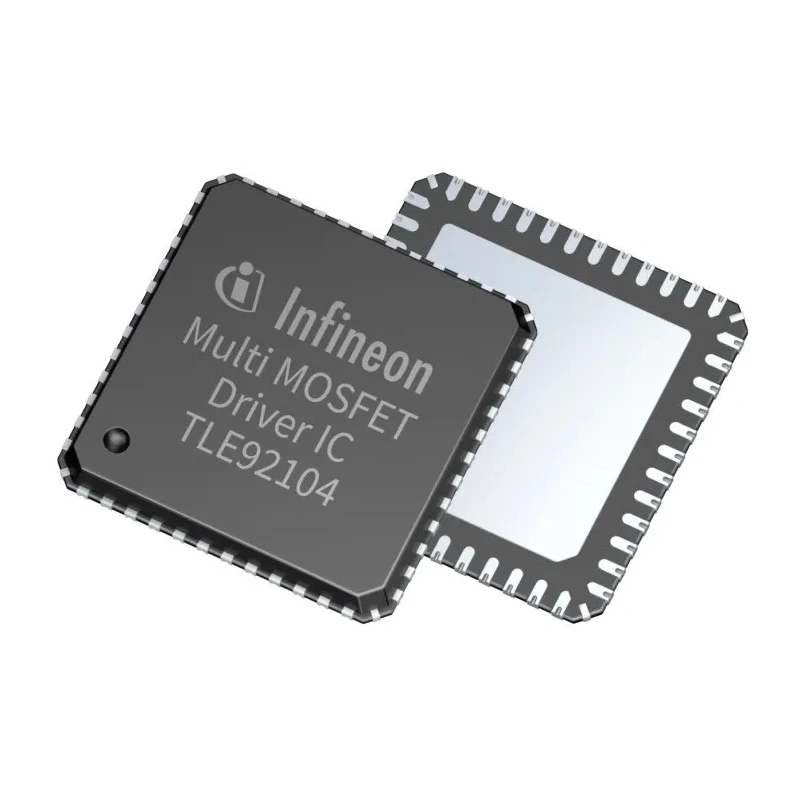

Infineon MOSFET Gate Driver 4 Outputs 48-Pin PG-VQFN-48 40V AEC-Q100 TLE92104131QXXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 900μm |
| Length | 7mm |
| Model | TLE92104131QXXUMA1 |
| Width | 7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-VQFN-48 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 4 |
| Rise Time | 50ns |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 40V |
| Number of Drivers | 4 |
| Fall Time | 50ns |
| Driver Type | MOSFET |
Key Features
- Equipped with four half-bridge gate drivers for external N-channel MOSFETs.
- Features a 24-bit Serial Peripheral Interface for precise control.
- Supports up to 25kHz PWM frequency for efficient switching.
- Operates within a temperature range of -40°C to 150°C junction temperature.
- Compact 7mm by 7mm package dimensions with a height of 900μm.
- Surface mount type suitable for modern PCB assemblies.
- Fast rise and fall time of 50ns ensuring swift switching performance.
- Driver supports a minimum and maximum supply voltage of 40V.
Product Description
Infineon TLE92104131QXXUMA1 MOSFET Gate Driver IC offers four half-bridge gate drivers for external N-channel MOSFETs in a compact 48-pin PG-VQFN-48 package. This IC is engineered for power management requiring reliable and efficient MOSFET switching with a supply voltage operating range up to 40V.
It features a 24-bit Serial Peripheral Interface enabling detailed configuration and control of the gate drivers. The rise and fall times are highly optimized at 50ns, ensuring minimal switching losses and improved efficiency in power circuits.
The device operates effectively across a wide junction temperature range from -40°C to 150°C, making it suitable for automotive applications compliant with the stringent AEC-Q100 standard. Its surface mount package measures 7mm length, 7mm width, and 900μm height, facilitating compact PCB designs.
Includes four half-bridge drivers supporting external N-channel MOSFETs. 24-bit Serial Peripheral Interface for precise driver control. Fast rise/fall times of 50ns for efficient switching. Operating voltage up to 40V for robust power management.
Wide junction temperature range (-40°C to 150°C) suitable for automotive use. Compliant with AEC-Q100 automotive standards ensuring high reliability. Compact PG-VQFN-48 surface mount package reduces PCB space requirements.
Ideal for applications in automotive, industrial controls, and power circuits.
This Infineon MOSFET Gate Driver IC is designed for demanding environments in automotive and industrial sectors, offering precise MOSFET control, thermal resilience, and compact packaging. It integrates seamlessly into power management, motor control, and switching applications, enhancing system efficiency and reliability.
Explore more high-quality semiconductor products and power management ICs on EnvMart to meet your industrial and automotive electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 150°C.
This unit supports a minimum and maximum supply voltage of 40V.
The package dimensions are 7mm in length, 7mm in width, and 900μm in height.
It provides four outputs for controlling external N-channel MOSFETs.
The rise and fall times are both optimized at 50ns, ensuring efficient switching performance.
This model complies with the AEC-Q100 automotive standard, ensuring high reliability for automotive applications.
It features a 24-bit Serial Peripheral Interface for precise control of the gate drivers.
The minimum operating temperature is -40°C, making it suitable for a wide range of applications.
It is a surface mount type, which is suitable for modern PCB assemblies.
The fast rise and fall times of 50ns help minimize switching losses, thereby improving efficiency in power circuits.
It is ideal for applications in automotive, industrial controls, and power circuits.
This model has a pin count of 48.
