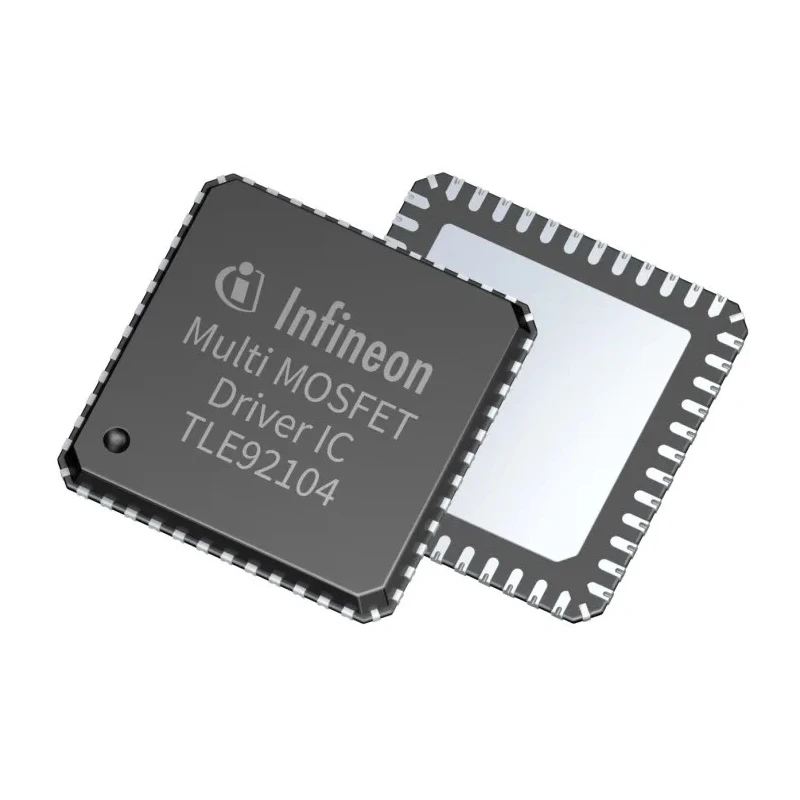

Infineon MOSFET Gate Driver 4 Outputs 48-Pin PG-VQFN-48 40V Surface Mount AEC-Q100 TLE92104131QXXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 900μm |
| Length | 7mm |
| Model | TLE92104131QXXUMA1 |
| Width | 7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-VQFN-48 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 4 |
| Rise Time | 50ns |
| Pin Count | 48 |
| Automotive Standard | AEC-Q100 |
| Minimum Supply Voltage | 40V |
| Number of Drivers | 4 |
| Fall Time | 50ns |
| Driver Type | MOSFET |
Key Features
- Supports a maximum supply voltage of 40V for flexible power applications.
- Features four half-bridge gate drivers controlled via a 24-bit SPI interface.
- Operates over a wide temperature range from -40°C to 150°C, suitable for automotive and industrial use.
- Surface mount design in a 7mm x 7mm x 0.9mm PG-VQFN-48 package ensures space-efficient PCB integration.
- Fast switching with rise and fall times of 50ns optimizes MOSFET control.
- Complies with Automotive Standard AEC-Q100 for high reliability.
- Ideal for PWM frequencies up to 25kHz supporting precise power management.
Product Description
Infineon's TLE92104131QXXUMA1 is a high-performance MOSFET gate driver designed for driving external N-channel MOSFETs, integrating four half-bridge gate drivers within a compact 48-pin PG-VQFN package.
Its robust design allows operation with supply voltages ranging from -0.3V up to 40V, supporting demanding power management scenarios in automotive and industrial applications.
Featuring a 24-bit Serial Peripheral Interface (SPI), this driver ensures precise control over MOSFET switching, enabling PWM frequencies up to 25kHz and rapid rise and fall times of 50ns, enhancing circuit efficiency and response times.
The device operates reliably across a broad temperature range of -40°C to 150°C, meeting strict AEC-Q100 automotive standards for quality and durability. Its surface mount PG-VQFN-48 package measures 7mm by 7mm with a height of 900μm, optimizing board space in compact designs.
Supports a maximum supply voltage of 40V for flexible power applications. Integrates four independent half-bridge driver outputs for simultaneous MOSFET control. Offers robust temperature tolerance from -40°C to 150°C, suitable for harsh environments.
Compact surface mount package facilitates high-density PCB layout. Compliant with Automotive Standard AEC-Q100 for high reliability and automotive-grade quality. Fast switching times with 50ns rise and fall time improve system performance.
Operates with up to 25kHz PWM for efficient power modulation.
This MOSFET Gate Driver is ideal for use in automotive electronics, industrial power management systems, and other applications demanding reliable and fast MOSFET switching capabilities.
Explore EnvMart’s wide range of Infineon power management ICs and gate drivers for comprehensive solutions to your electronic design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum supply voltage of 40V, allowing for flexible power applications.
This model operates over a wide temperature range from -40°C to 150°C, making it suitable for automotive and industrial environments.
It integrates four independent half-bridge gate driver outputs for simultaneous control of MOSFETs.
It features a 24-bit Serial Peripheral Interface (SPI) for precise control over MOSFET switching.
The rise and fall times are both 50ns, which optimizes MOSFET control and enhances circuit efficiency.
It comes in a PG-VQFN-48 package, measuring 7mm x 7mm with a height of 900μm.
Yes, it complies with the Automotive Standard AEC-Q100, ensuring high reliability and quality for automotive applications.
It supports PWM frequencies of up to 25kHz, enabling efficient power modulation.
The minimum supply voltage is -0.3V, allowing for a wide range of operational flexibility.
It features a surface mount design, facilitating high-density PCB layout.
Fast switching times of 50ns improve system performance by optimizing MOSFET control and response times.
The country of origin for this product is India.
