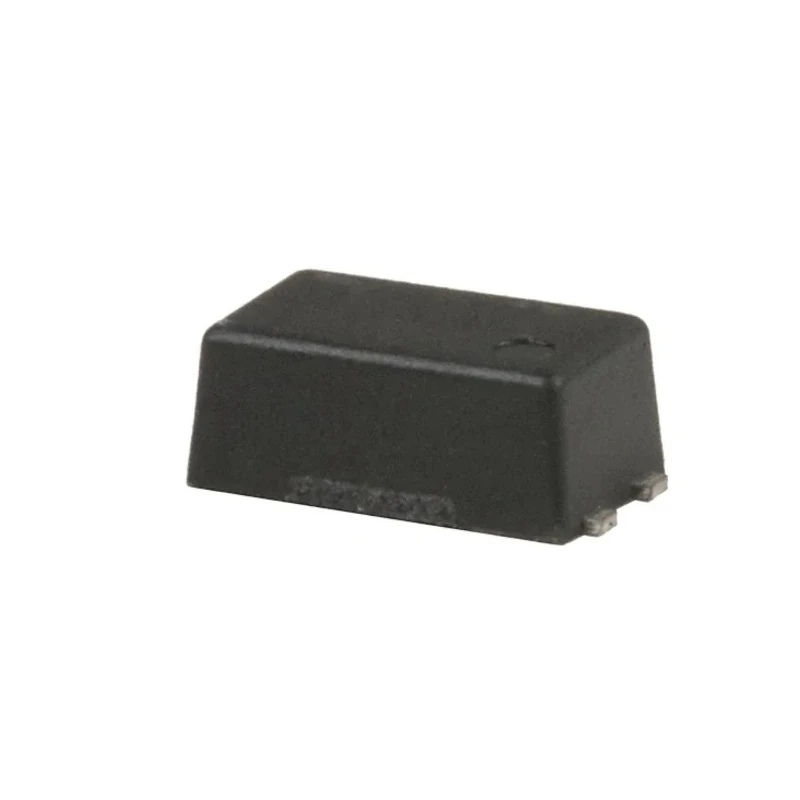

Renesas Electronics DC Input Photocoupler, 4-Pin Mini-Flat PS2913-1-V-F3-AX

Renesas Electronics PS2913-1-V-F3-AX is a DC input photocoupler designed for optically isolating electrical signals in industrial, electronic, and communications equipment. It incorporates a gallium arsenide (GaAs) light emitting diode and an NPN silicon phototransistor within a compact 4-pin mini-flat package.

The ultra-small flat-lead package significantly reduces the mounting area by about 30%, allowing high density PCB layouts in modern electronics manufacturing.

This device offers a high isolation voltage of 2500 Vrms, ensuring robust protection against high voltage spikes and noise. Its maximum forward voltage is rated at 1.3 V, with a maximum input current of 50 mA, suitable for a range of low power signal isolation applications.

Typical switching times are 10 microseconds rise and fall, enabling fast response suitable for pulse and digital input isolation.

The photocoupler supports operation over a wide temperature range from -55°C to 100°C, enhancing reliability in demanding environments such as industrial automation and control systems.

Its current transfer ratio varies from 50% minimum to 200% maximum, providing flexibility in signal amplification requirements. The PS2913-1-V-F3-AX complies with safety standards such as BS EN 62368-1, DIN EN 60747-5-5, and UL1577, making it suitable for global applications requiring certified components.

The product is packaged as 500 units per reel for ease of use in automated surface mount technology assembly processes. Features a GaAs LED and an NPN silicon phototransistor in a single compact package. Provides high isolation voltage of 2500 Vrms for reliable operation.

Maximum forward voltage is 1.3 V with a maximum input current of 50 mA. Typical rise and fall times are both 10 µs for fast switching performance. Operating temperature range from -55°C to 100°C. Current transfer ratio between 50% minimum and 200% maximum for efficient signal coupling.

Compact mini-flat 4-pin package reduces mounting area by approximately 30%. Designed to meet standards BS EN 62368-1, DIN EN 60747-5-5 and UL1577 certifications. Package contains 500 pcs per reel suitable for automated assembly processes.

This photocoupler is ideal for use in industrial electronics, low voltage signal isolation, power control circuits, and instrumentation. It provides secure electrical isolation while allowing effective signal transmission in environments demanding safety and noise immunity.
