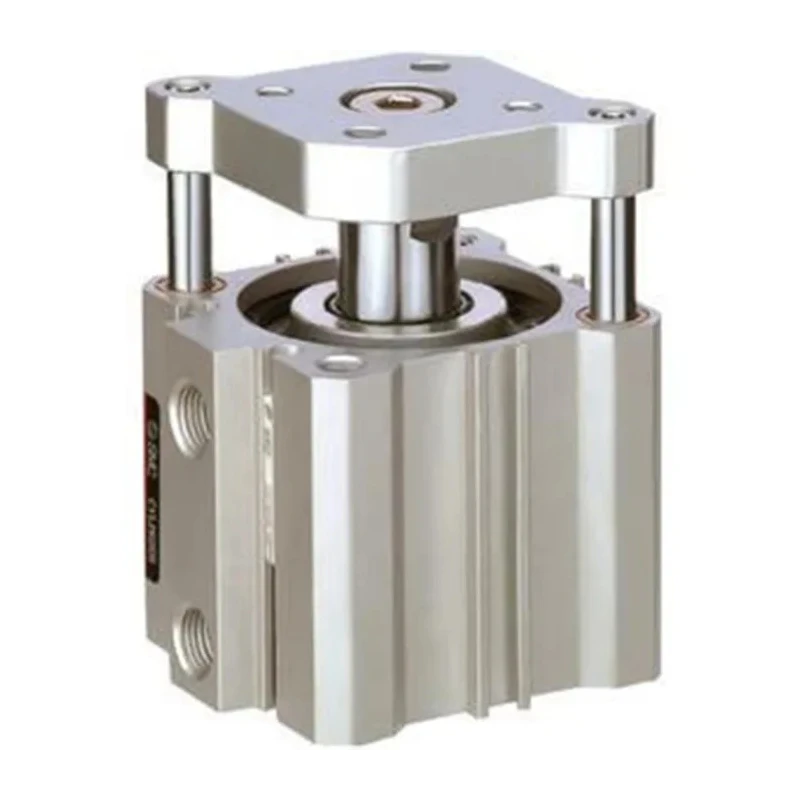

SMC Pneumatic Compact Cylinder 100mm Bore, 50mm Stroke, Double Acting, Aluminium Alloy Body CDQMB100TF-50

SMC CDQMB100TF-50 Pneumatic Compact Cylinder is a high-quality, double acting Pneumatic Cylinder with a 100mm bore and 50mm stroke, constructed from aluminium alloy. It is designed for industrial fluid power applications requiring precise actuation and durability. The compact design includes a single rod type with metric piston rod thread standard (M20 x 1.5), making it compatible with various mounting configurations.

This cylinder features through-hole mounting, rubber bumper cushioning to reduce operational noise and mechanical shock, and has a maximum operating pressure of 1 Mpa. It safely operates within a temperature range of -10°C to 60°C, suitable for diverse industrial environments.

The design eliminates rotation with an accuracy of 0.2 or less, enhancing reliability and precision in automated machinery setups. The lightweight aluminium alloy body ensures corrosion resistance and ease of installation.

The maximum piston speed is rated at 500mm/s, allowing for rapid actuation cycles in manufacturing, automation, and packaging machinery. Its guide rod type construction offers four times the lateral load resistance compared to earlier models, suitable for heavy-duty industrial tasks.

This cylinder operates with a double acting action type for precise control. It features a 100mm bore diameter and a 50mm stroke length. Constructed from durable aluminium alloy ensuring lightweight and corrosion resistance.

Equipped with a single rod type and metric piston rod thread (M20 x 1.5). Designed with a rubber bumper cushioning type to reduce wear and increase service life. Capable of operating under maximum pressure of 1 Mpa and piston speed up to 500mm/s.

Operates safely within temperatures ranging from -10°C to 60°C. Mount type is through hole providing secure installation options. Offers non-rotating accuracy of 0.2 or less for precise lateral positioning. Weight is approximately 3.57 kg indicating a robust build suitable for industrial applications.

Ideal for use in industrial automation, manufacturing lines, pneumatic tooling, and material handling systems, this pneumatic compact cylinder from SMC provides reliable performance and long service life. EnvMart offers this product as an essential component for pneumatic actuator assemblies.
