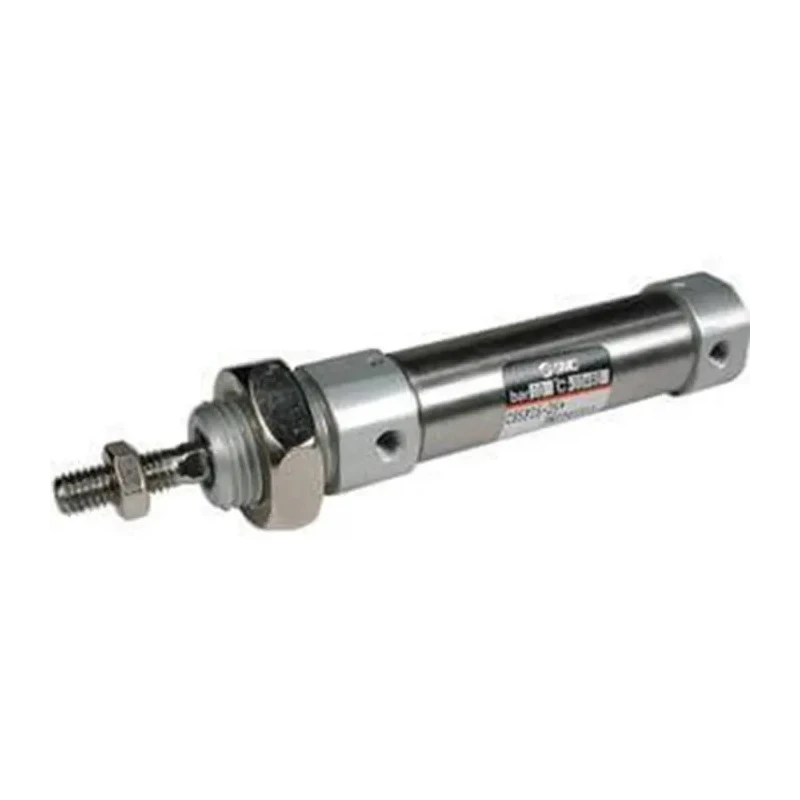

SMC Double Acting Cylinder, 10 mm Stroke, Aluminium Alloy Body, Clevis Mount, Rubber Bumper, Metric M4 Thread CD85
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Model | CD85 |
| Mount Type | Clevis |
| Series | CD85 |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 10mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 6432 |
| Cushioning Type | Rubber Bumper |
| Piston Rod Gender | Male |
| Piston Rod Thread Standard | Metric |
| Piston Rod Thread Size | M4 |
Key Features
- Constructed with lightweight aluminium alloy for reduced actuator weight.
- Double acting operation enables controlled push and pull motion.
- Clevis mounting allows pivoting installation in compact spaces.
- Rubber bumpers absorb impact and reduce noise at end strokes.
- Male piston rod features M4 metric thread for easy fastening.
- Supports maximum piston speed of 1500 mm/s for rapid cycling.
- Rated for operating temperatures up to 80°C for elevated temperature environments.
- Complies with ISO 6432 standards for compact pneumatic cylinders.
Product Description
The SMC CD85N8-10-B is a high-quality double acting pneumatic cylinder designed for precise linear actuation in automated systems. Featuring a 10 mm stroke and an aluminium alloy body, this cylinder offers both lightweight durability and robust performance.
Its double acting mechanism provides effective push and pull motion, making it ideal for applications requiring controlled positioning. The included rubber bumpers cushion the piston, significantly reducing impact noise and mechanical wear at the end of the stroke.
The clevis mount enables a pinned pivot attachment, allowing angular tolerance and use in tight or pivoting installations. The male piston rod uses a metric M4 thread standard for simple and secure fastening with common metric fasteners.
This cylinder is suitable for demanding industrial uses including pick-and-place operations in automated assembly lines, small indexing mechanisms in electronics manufacture, and panel or lid actuation in enclosure assemblies. It is also well-suited for test rigs requiring repeatable short strokes and fixtures needing compact pneumatic gripping motion.
Designed to withstand operating temperatures up to 80°C and support piston speeds up to 1500 mm/s, it offers reliable rapid cycling performance. The product complies with ISO 6432 dimensional standards, ensuring compatibility and ease of integration in pneumatic systems.
Constructed with aluminium alloy body for lightweight strength. Double acting action type for push-pull operations. Rubber bumper cushioning protects internal components. Clevis-type mount allows angular pivots in installations.
Metric M4 male piston rod thread for versatile fastening. Supports maximum piston speed of 1500 mm/s. Rated for maximum operating temperature of 80°C. ISO 6432 standard compliant for compact pneumatic cylinders.
This SMC pneumatic cylinder is ideal for industrial, manufacturing, HVAC, and laboratory automation applications. For additional pneumatic piston rod cylinders and actuators, browse the Pneumatic Cylinders category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this pneumatic cylinder is 10 mm.
It is rated for a maximum operating temperature of 80°C.
This model features a clevis mount type, allowing for pivoting installations.
The body of this pneumatic cylinder is constructed from aluminium alloy, providing lightweight strength.
It operates as a double acting cylinder, enabling controlled push and pull motion.
The piston rod has a male thread size of M4 and follows a metric thread standard.
This model supports a maximum piston speed of 1500 mm/s for rapid cycling.
It includes rubber bumpers that absorb impact and reduce noise at the end of strokes.
This pneumatic cylinder complies with ISO 6432 standards for compact pneumatic cylinders.
It is suitable for applications such as pick-and-place operations, small indexing mechanisms, and panel actuation in automated systems.
The rod type is single, which is typical for this kind of pneumatic cylinder.
The country of origin for this model is India.
