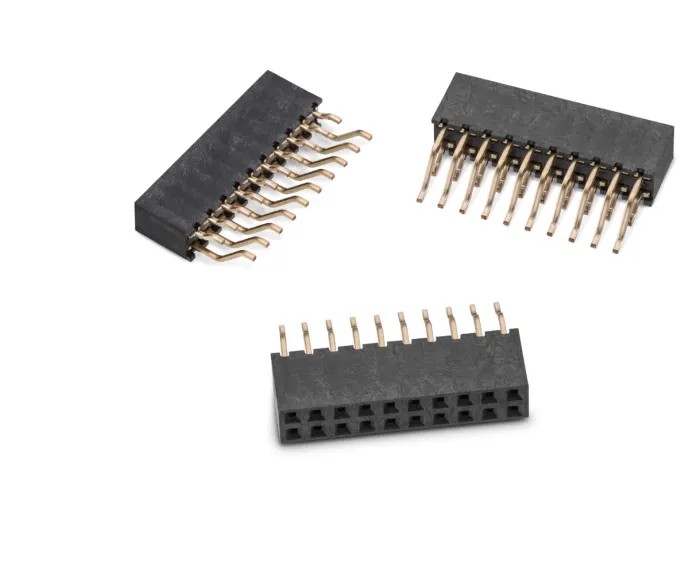

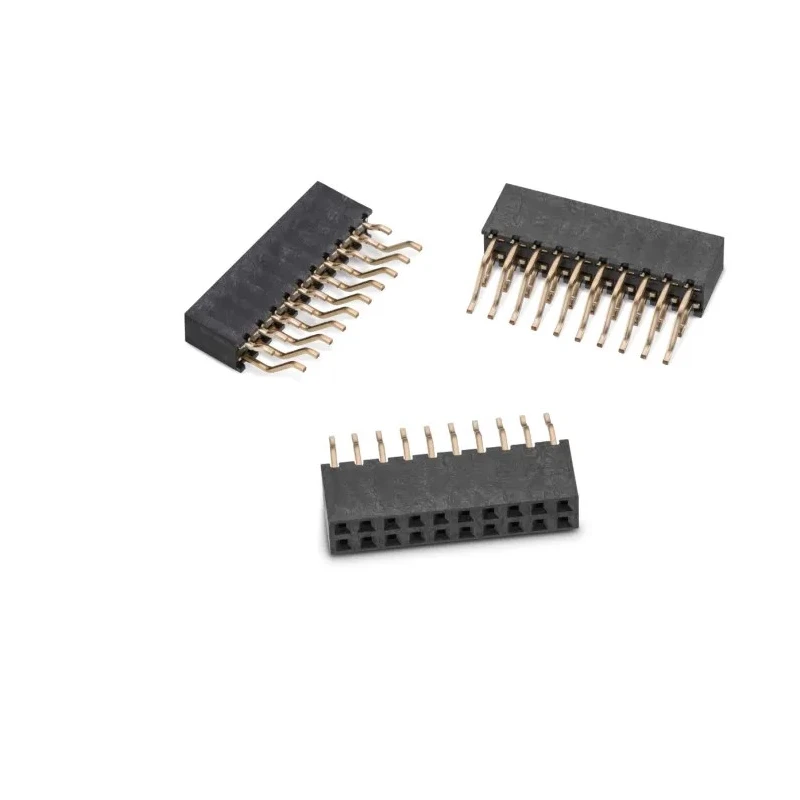

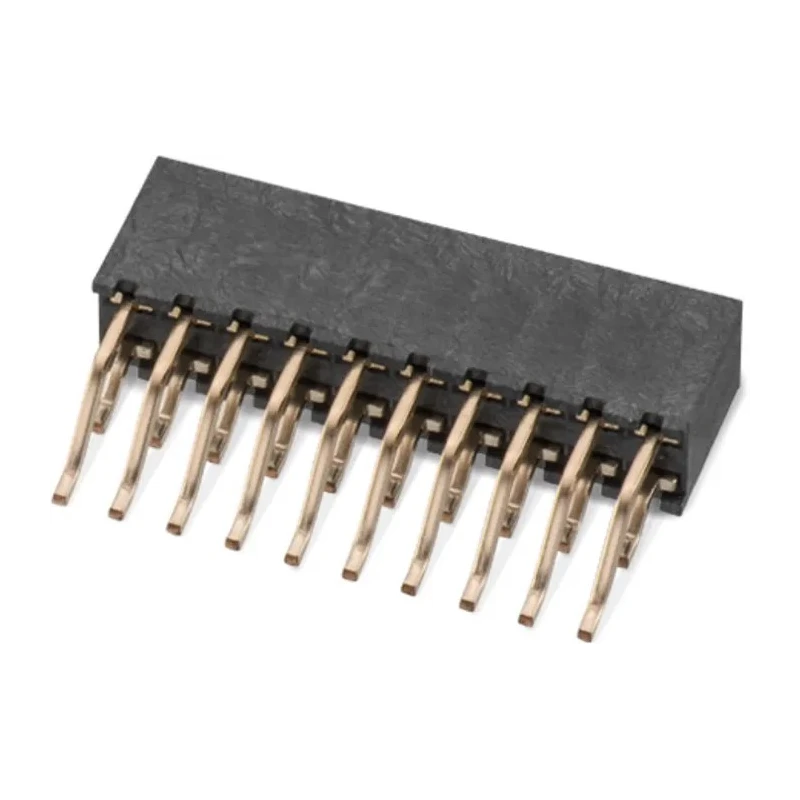

Wurth Elektronik Angled Surface PCB Socket 20-Contact 2 Row 2 mm Pitch Solder 621120284621
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 200V |
| Brand | Wurth Elektronik |
| Orientation | Angled |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Withstanding Voltage | 500 V (AC) |
| Insulator Material | LCP |
Key Features
- Features 20 female contacts arranged in 2 rows with 2 mm pitch.
- Constructed with liquid crystal polymer housing for high durability.
- Gold-plated copper alloy contacts ensure strong conductivity and corrosion resistance.
- Rated for 2 A current and 200 V voltage operation.
- Angled board mount type enables versatile PCB designs.
- Operating temperature range extends from -40°C to 105°C.
- Withstands voltages up to 500 V AC for robust insulation.
- Designed to surface mount with solder termination for secure fixation.
Product Description
Wurth Elektronik 621120284621 is an angled surface mount PCB socket designed for board-to-board connections in electronic assemblies. It features a 20-contact configuration arranged in two rows spaced 2 mm apart, allowing compact and efficient PCB layouts.
The socket’s housing is made from liquid crystal polymer (LCP), delivering high mechanical stability and excellent thermal endurance. The contacts are fabricated from copper alloy and plated with gold to provide reliable electrical conductivity and resistance against corrosion and wear.
Operating up to 2 A current and 200 V voltage, this socket is suitable for a wide range of low voltage electronic applications. The solder termination ensures a strong mechanical bond to the PCB surface, facilitating assembly processes.
The device supports a broad temperature range from -40°C minimum to 105°C maximum, making it adaptable for various industrial and commercial environments. It withstands AC voltages up to 500 V, ensuring safety and insulation integrity in demanding circuits.
This socket is part of the WR-PHD series by Wurth Elektronik, known for quality connector solutions. It is ideal for applications requiring compact, reliable, and angled PCB interconnects including power supplies, industrial controls, and embedded systems.
20 female contacts in 2 rows. 2 mm pitch spacing for precise placement. Liquid crystal polymer housing for durability. Copper alloy contact material with gold plating for conductivity. Solder termination for secure surface mount.
200 V, 2 A electrical ratings. Operating temperature range -40°C to 105°C. Withstanding voltage of 500 V AC. Angled orientation for flexible PCB design. Manufactured in China, new product.
This product is commonly used in electronics manufacturing, industrial equipment, and power management systems where reliable PCB connections are critical. Wurth Elektronik’s WR-PHD series is widely recognized in the electronics industry for performance and quality.
Explore more from the PCB Socket category at EnvMart for compatible high-quality electronic connecting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 2 A and a voltage of 200 V.
It features a 2 mm pitch and has a total of 20 female contacts arranged in 2 rows.
The housing is made from liquid crystal polymer (LCP), while the contacts are constructed from copper alloy and plated with gold.
The operating temperature range extends from -40°C to 105°C.
It uses solder termination for secure surface mounting on PCBs.
It can withstand AC voltages up to 500 V, ensuring robust insulation.
This socket has an angled orientation, allowing for flexible PCB designs.
It is part of the WR-PHD series by Wurth Elektronik, known for quality connector solutions.
It utilizes a board-to-board connector system, suitable for electronic assemblies.
This product is manufactured in China.
It is suitable for applications requiring reliable PCB connections, including power supplies, industrial controls, and embedded systems.
The gold plating on the copper alloy contacts enhances electrical conductivity and provides resistance against corrosion and wear.
