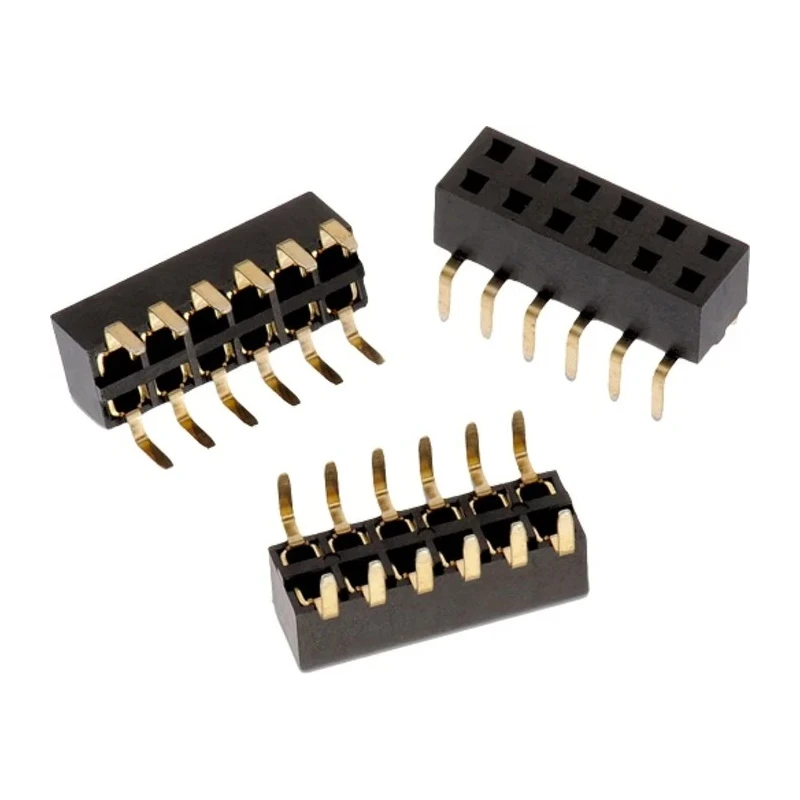

Wurth Elektronik Bottom Entry PCB Socket 34-Contact, 2 Row, 2.54 mm Pitch 613034216921

Name: Wurth Elektronik Bottom Entry PCB Socket 34-Contact, 2 Row, 2.54 mm Pitch 613034216921
Brand: Wurth Elektronik
SKU: 173118
Price: 9.04 USD
Availability: InStock



Category PCB Socket Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	250V
Brand	Wurth Elektronik
Orientation	Bottom Entry
Current	3A
Housing Material	Nylon 9T
Contact Material	Copper Alloy
Series	WR-PHD
Durability	25mating cycles
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	REACh Approval Conform or declared, DIN ISO 2768, RoHS Approval, UL Approval E323964, DIN EN 61760-2
Contact Plating	Gold
Number of Contacts	34
Contact Gender	Female

Key Features

The socket features a Nylon 9T housing material offering robust insulation.
Constructed with copper alloy contacts plated in gold for excellent conductivity.
Rated for a maximum voltage of 250 V and a current capacity of 3 A.
Suitable for operating temperatures ranging from -40°C to 105°C.
Designed with a female contact gender and bottom entry orientation.
Durability ensures up to 25 mating cycles for repeated use.
Complies with RoHS, UL (E323964), REACh, and DIN EN 61760-2 standards.
Manufactured in Taiwan, Province Of China.

Product Description

Wurth Elektronik 613034216921 Bottom Entry PCB Socket is a high-quality electronic component designed for precise and reliable PCB connections in industrial and manufacturing applications.

This dual-row socket features 34 gold-plated copper alloy contacts, ensuring low resistance and stable signal integrity over time. The Nylon 9T housing material provides excellent insulation and mechanical strength, supporting an operating voltage up to 250 V and current capacity of 3 A.

The socket is engineered to withstand temperature extremes ranging from -40°C to 105°C, making it suitable for demanding environments. Its bottom entry design allows straightforward PCB mounting and assembly processes. With a durability of 25 mating cycles, this socket supports multiple insertions without degradation.

The product complies with international standards including RoHS, UL approval (E323964), REACh, and DIN EN 61760-2, ensuring environmental and safety conformity. The socket housing is constructed from flame-retardant Nylon 9T rated UL94 V-0.

Gold plating on the copper alloy contacts enhances corrosion resistance and electrical performance. 2.54 mm pitch maintains compatibility with standard PCB layouts. Durability and mechanical stability promote longevity in industrial electronic applications.

Ideal for use in industrial electronics, control systems, instrumentation, and PCB assembly lines. Manufactured in Taiwan, Province Of China, maintaining consistent quality standards. Explore additional Wurth Elektronik PCB Sockets and compatible connectors for your advanced electronic assembly projects at EnvMart.
