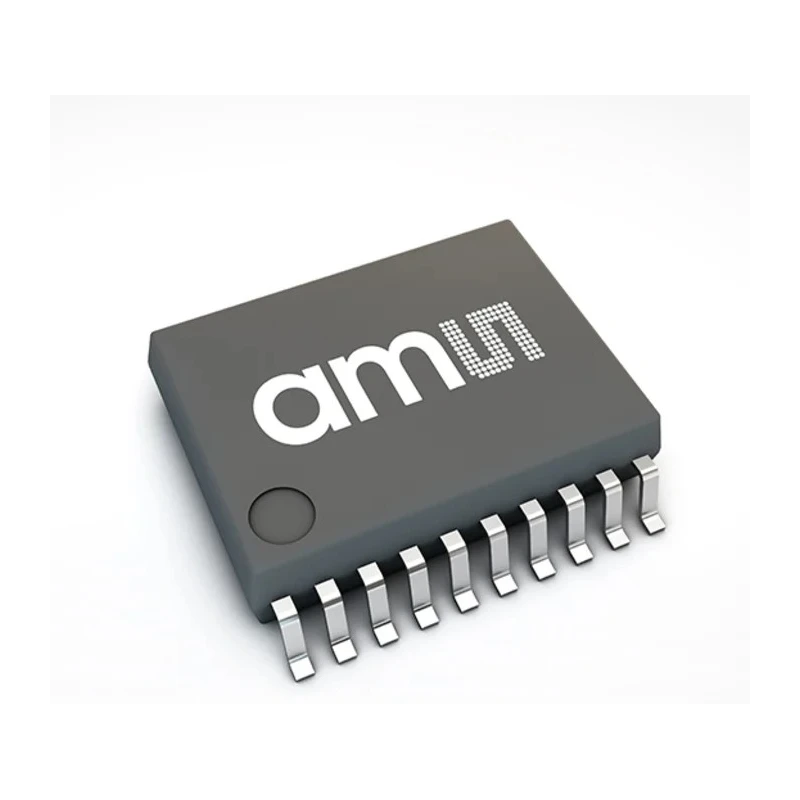

ams OSRAM Hall Effect Sensor Surface Mount Rectangular Body Push Pull Output 7 V dc 4.5V AS5304A
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | ams OSRAM |
| Model | AS5304A |
| Width | 6.6mm |
| Mount Type | Surface Mount |
| Output type | Push Pull |
| Series | AS530 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Switching Current | 25, 39mA |
| Switching Frequency | 5kHz |
| Body Style | Rectangular |
| Maximum dc Voltage | 7V dc |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 4.5V |
Key Features
- Designed for precise contactless motion and position sensing using multi-pole magnetic strips or rings.
- Robust against external magnetic stray fields, ensuring reliable performance in harsh environments.
- Supports control of high-speed movements, ideal for electrical motors and industrial drives.
- Compact surface mount with a width of 6.6mm for seamless PCB integration.
- Operates in temperature range from -40°C to 125°C for broad application scope.
- Includes short circuit and overload protection for durability and safety.
- Offers a switching frequency of 5kHz and switching current of 25mA to 39mA.
- Complies with RoHS standards ensuring environmentally friendly manufacturing.
Product Description
The ams OSRAM AS5304A Hall Effect Sensor is a high-performance surface mount device featuring a rectangular body and push pull output designed for 7 V dc and 4.5 V maximum supply voltage applications. Developed with integrated Hall elements on a single-chip IC, it enables precise measurement of linear or rotary motion using magnetic strips or rings.
This sensor is engineered to provide robust contactless sensing that is resilient against external magnetic stray fields, making it suitable for harsh industrial environments. Its applications include electrical motors, X-Y stages, rotation knobs, and various industrial drives where contactless position feedback is crucial.
The compact footprint with a 6.6mm width facilitates easy integration on PCBs, while its operating temperature range from -40°C to 125°C supports demanding environmental conditions. Short circuit and overload protection enhance device longevity and operational safety.
With a switching frequency of 5kHz and switching current range of 25mA to 39mA, the AS5304A efficiently manages switching tasks for motor control and automation. Compliance with RoHS standards ensures adherence to environmental regulations.
Manufactured in Austria, this sensor meets stringent quality and reliability benchmarks expected in precision automation and control applications. Designed for precise contactless motion sensing with multi-pole magnetic strips or rings.
Robust performance under external magnetic stray fields and harsh environments. Supports control of high-speed movements in motors and industrial drives. Compact 6.6mm wide surface mount form factor for PCB integration. Operating temperature range from -40°C to 125°C.
Incorporates short circuit and overload protection. 5kHz switching frequency with switching current of 25mA to 39mA. RoHS compliant and environmentally friendly. Manufactured in Austria ensuring high reliability.
This ams OSRAM AS5304A Hall Effect Sensor is ideal for use in industrial automation, motor control systems, laboratory instrumentation, and other applications requiring accurate and durable position sensing. Explore more in the Hall Effect Sensors category on EnvMart to find complementary products and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the AS5304A Hall Effect sensor is 125°C.
The AS5304A has a switching frequency of 5kHz.
This sensor has a compact width of 6.6mm, facilitating easy integration onto PCBs.
The AS5304A features a push pull output type.
The operating temperature range for this model is from -40°C to 125°C.
The switching current for the AS5304A ranges from 25mA to 39mA.
Yes, the AS5304A complies with RoHS standards, ensuring environmentally friendly manufacturing.
This model is designed for surface mount installation.
The maximum supply voltage for this sensor is 4.5V.
The AS5304A Hall Effect sensor is manufactured in Austria.
This sensor is suitable for applications in industrial automation, motor control systems, and laboratory instrumentation.
The AS5304A is designed to be robust against external magnetic stray fields, ensuring reliable performance in harsh environments.
