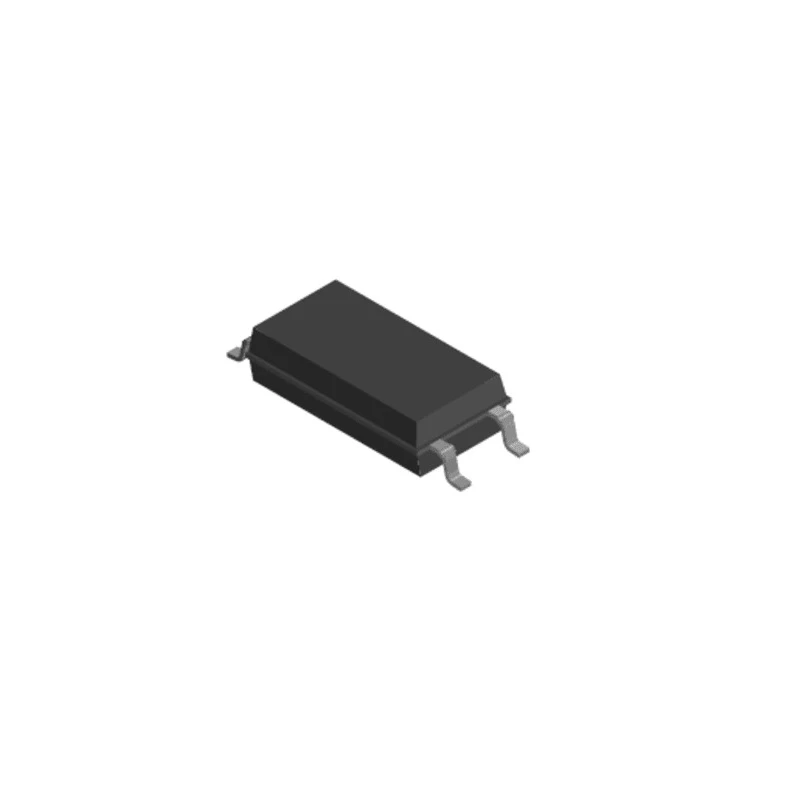

Vishay DC Input Optocoupler Surface Mount 4-Pin SOP, 1 Channel, 1.6V Forward Voltage TCLT1004

Vishay TCLT1004 DC Input Optocoupler is a surface mount optocoupler designed with a phototransistor output optically coupled to a gallium arsenide infrared-emitting diode, housed in a compact 4-pin SOP package.

This device is engineered for efficient electrical signal isolation in electronic circuits where reducing noise and signal distortion is crucial.

It offers a maximum forward voltage of 1.6 V with a direct current input and operates reliably over a temperature range from -55°C to 100°C, making it suitable for a variety of industrial and laboratory applications.

The typical rise and fall times are 3 µs and 4.7 µs respectively, ensuring quick switching performance for signal processing tasks. With an isolation voltage rating of 5000 Vrms, the TCLT1004 provides robust protection between input and output circuits, essential in power and control electronics.

This optocoupler delivers a minimum current transfer ratio of 160% and can reach up to 320%, supporting effective signal amplification and transfer. The device complies with UL and EN standards and is lead-free, meeting RoHS compliance for environmental safety.

This optocoupler is characterized by extra low coupling capacitance to minimize interference and signal loss. Its compact surface mount design enables integration in space-constrained electronic assemblies. Approval by UL, cUL, VDE, BSI, and FIMKO assures quality and reliability in demanding electronic and industrial applications.

Typical applications include industrial control systems, communication equipment, measurement devices, and other electronic protection tasks. This Vishay Optocoupler is ideal for engineers and technicians requiring high performance isolation components in electronics manufacturing, maintenance, and design.
