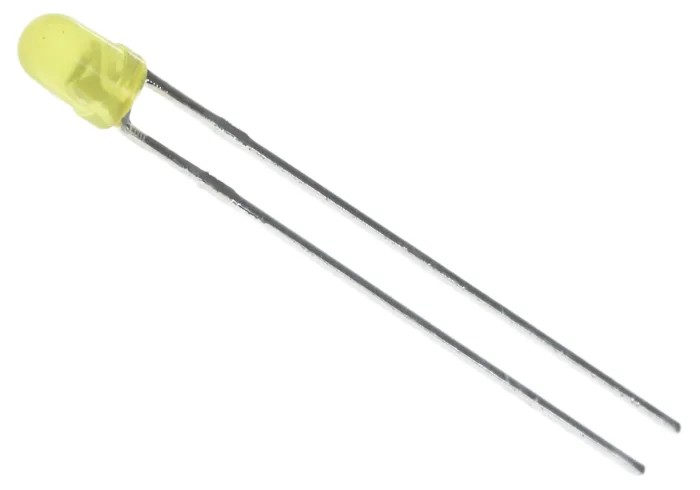

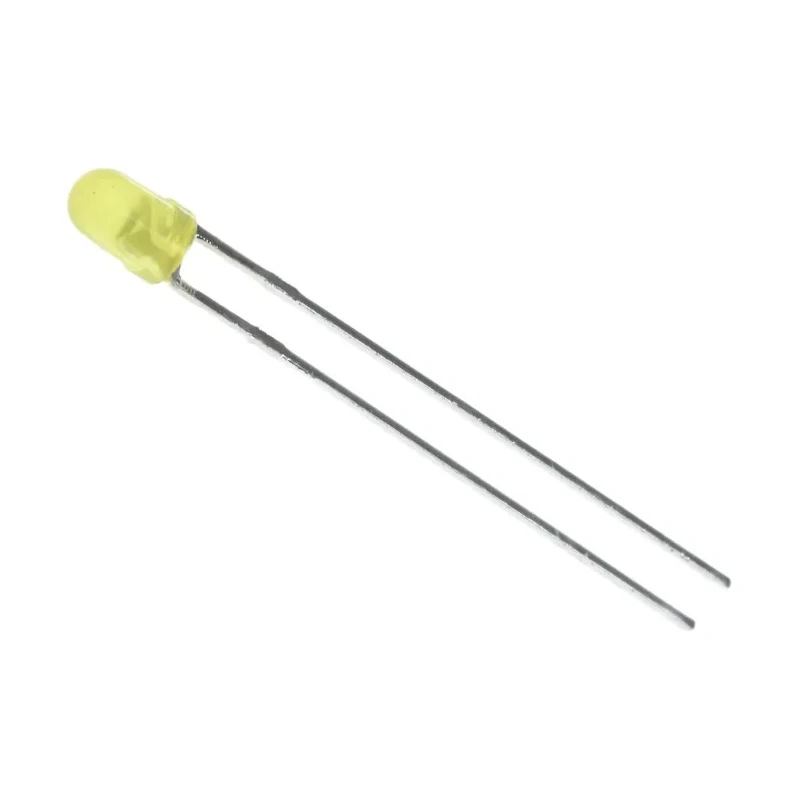

Kingbright 14 V Yellow LED 3 mm (T-1) Through Hole L934 L-934YD-12V

Free Delivery in India | Lowest Global Shipping Charges

Kingbright 14 V Yellow LED 3 mm (T-1) Through Hole L934 L-934YD-12V

Name: Kingbright 14 V Yellow LED 3 mm (T-1) Through Hole L934 L-934YD-12V
Brand: Kingbright
SKU: 172369
Price: 0.39 USD
Availability: InStock



Category LED Brand Kingbright Condition New

Specifications

Country of Origin	China
Brand	Kingbright
Model	L-934YD-12V
Packaging	Bulk
Mount Type	Through Hole
Series	L934
Maximum forward current	8.5mA
Viewing angle	60 °
Package Type	3 mm (T-1)
Lens Colour	Yellow
Standards/Approvals	RoHS
LED Colour	Yellow
Dominant Wavelength	588nm
Forward Voltage	14V
Number of Pins	2
LED Luminosity	15 mcd
Maximum Power Dissipation	120mW
Lens Dimensions	5.4 x 2.9 mm
Lens Shape	Round
Lens Finish	Diffused
Kingbright 14 V Green LED 3 mm (T-1) Through Hole L934 L-934GD-12VBrand	Kingbright

Key Features

Operates with a maximum forward current of 8.5 mA.
Features a diffused round yellow lens for optimal light diffusion.
Includes an integral current limiting resistor for use with 12 V power supplies.
Compact 3 mm (T-1) package suitable for through-hole mounting.
Certified RoHS compliant ensuring adherence to environmental standards.
Dominant wavelength of 588 nm for precise yellow light emission.
Maximum power dissipation rated at 120 mW for reliable performance.
Consists of 2 pins for straightforward PCB installation.

Product Description

Kingbright L-934YD-12V is a 14 V Yellow LED in a 3 mm (T-1) through-hole package designed for electronic component applications requiring reliable and energy-efficient light emission.

This LED integrates an internal current limiting resistor, eliminating the need for external resistors when powered by a 12 V supply, thereby simplifying circuit design and saving space.

The yellow LED produces a luminous intensity of 15 mcd with a wide 60° viewing angle, facilitated by its diffused round lens, ensuring broad and uniform light distribution.

Its dominant wavelength is 588 nm, providing a specific and consistent yellow color output, ideal for indicator lights, status displays, and other visual signals in industrial, laboratory, and commercial electronics.

The device supports a maximum forward current of 8.5 mA and a power dissipation up to 120 mW, engineered for dependable operation under typical electrical load conditions.

With two pins and through-hole mount type, installation on printed circuit boards is straightforward and mechanically stable, supporting robustness in industrial and manufacturing environments.

The LED is fully RoHS compliant, underscoring its environmentally friendly design and safety for electronic assemblies. Operates at 14 V forward voltage with an integral resistor. Diffused yellow color with 3 mm round lens.

Wide 60° beam angle for effective illumination. Suitable for various industrial, electronic, and commercial light applications. Efficient, compact, and easy to install through-hole mounting design. This Kingbright LED series is ideal for engineers and technicians looking for dependable indicator LEDs for electronic component integration.
