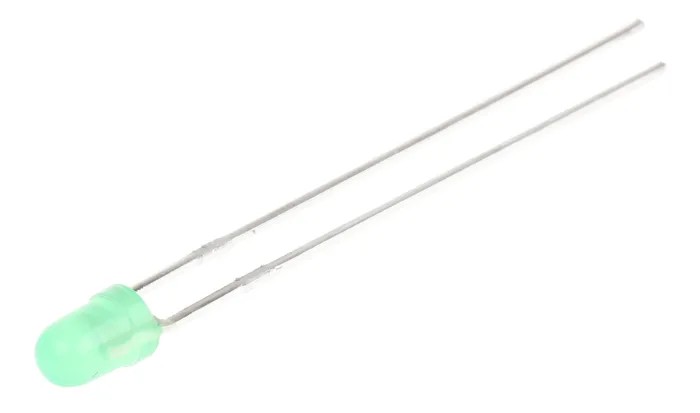

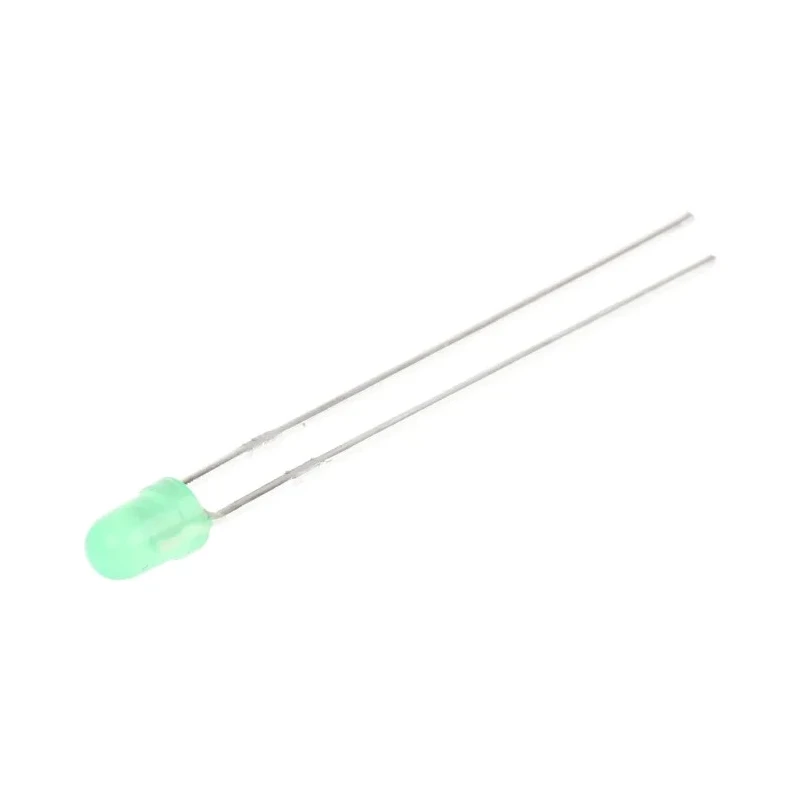

Kingbright 14 V Green Through Hole 3 mm (T-1) LED Resistor Lamp L-934GD-12V

Kingbright L-934GD-12V is a 14 V green LED resistor lamp designed for electronic applications requiring reliable visible light indication. It is housed in a 3 mm (T-1) through-hole package that facilitates mounting on printed circuit boards and panel circuits.

The integrated current-limiting resistor allows direct connection to a 12 V supply without external resistors, making it a cost-effective and space-saving solution.

This green LED possesses a diffused lens that provides a uniform light output with a wide viewing angle of 60°, suitable for various indicators and display lighting uses in industrial and consumer electronic devices.

Its electrical characteristics include a maximum forward current of 8.5 mA and power dissipation up to 120 mW, ensuring efficient energy consumption. The luminous intensity reaches 20 mcd, adequate for clear signaling purposes.

The LED's lens measures 5.4 mm by 2.9 mm and is round in shape to enhance light dispersion. The dominant wavelength of 568 nm provides a consistent green color output, compliant with environmental RoHS standards.

Produced in China and part of Kingbright's L934 series, this LED is suitable for various industrial, laboratory, manufacturing, and electronic display applications that require robust and reliable indicators.

This LED features a 3 mm (T-1) package with through-hole mounting for easy installation. The lamp includes an integral current limiting resistor, eliminating the need for external resistors with 12 V supply. It provides a green diffused lens color with a broad 60° viewing angle for wide visibility.

The LED has a maximum power dissipation of 120 mW and a luminous intensity of 20 mcd. The lens dimensions are 5.4 x 2.9 mm, and the lens shape is round for uniform light distribution. This product complies with RoHS standards, ensuring environmental safety and regulatory compliance.

It uses two pins for electrical connection and has a dominant wavelength of 568 nm. The LED is manufactured in China and belongs to the L934 series. Explore our extensive range of LEDs and electronic components at EnvMart for industrial, commercial, and laboratory needs.
