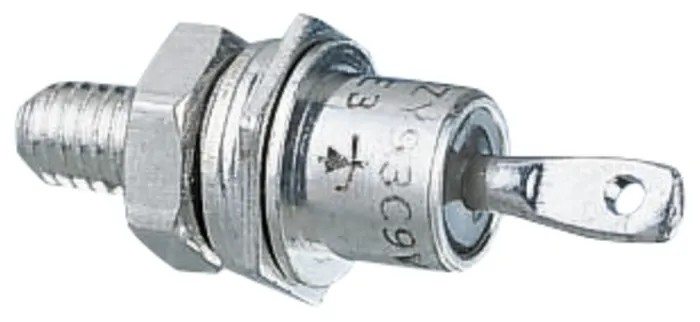

Vishay Standard Recovery Diode 800 V 16 A Screw Mount DO-203AA Package 2-Pin VS-16F80
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-16F80 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-16F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 370A |
| Maximum Forward Voltage Vf | 1.23V |
| Vishay 1200 V 16 A Diode Switching 2-Pin DO-203AABrand | Vishay |
Key Features
- Provides maximum continuous forward current of 16 A.
- Supports peak reverse repetitive voltage of 800 V for reliable operation.
- Features a standard recovery diode type with stud cathode configuration.
- Operating temperature ranges from -65°C to 175°C for versatile use.
- Designed with a peak non-repetitive forward surge current rating of 370 A.
- Maximum forward voltage drop of 1.23 V ensuring efficient conduction.
- Package type DO-203AA suitable for screw mounting applications.
- Ideal for industrial electronics, power conversion, and semiconductor applications.
Product Description
Vishay VS-16F80 is a high-efficiency Standard Recovery Diode designed for industrial and electronic power control applications. It features a maximum continuous forward current rating of 16 A and can handle a peak reverse repetitive voltage of up to 800 V, making it suitable for high voltage rectification duties.
This diode utilizes a stud cathode configuration within a robust DO-203AA two-pin package optimized for screw mounting to ensure secure installation in electronic circuits.
The device performs consistently over a wide operating temperature range from -65°C to 175°C, enabling reliable operation in harsh environments and demanding industrial conditions.
Its peak non-repetitive forward surge current of 370 A offers excellent transient handling capabilities, essential for protecting sensitive electronic components. Physical dimensions are optimally designed with a height of 31.8 mm, length of 12.69 mm, and diameter/width of 11 mm to accommodate compact circuit designs.
The maximum forward voltage of 1.23 V minimizes power losses during conduction, increasing overall efficiency in power conversion tasks.
Vishay's VS-16F80 standard recovery diode finds applications in power supplies, industrial motor drives, and semiconductor rectification circuits. Its construction and specifications align well with requirements for industrial, laboratory, and manufacturing electronics environments.
Provides maximum continuous forward current of 16 A. Supports peak reverse repetitive voltage of 800 V for reliable operation. Features a standard recovery diode type with stud cathode configuration. Operating temperature ranges from -65°C to 175°C for versatile use.
Designed with a peak non-repetitive forward surge current rating of 370 A. Compact dimensions: height 31.8 mm, length 12.69 mm, diameter and width 11 mm. Maximum forward voltage drop of 1.23 V ensuring efficient conduction.
Package type DO-203AA suitable for screw mounting applications. Ideal for industrial electronics, power conversion, and semiconductor applications. Explore more Semiconductor Diodes and power electronics products in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the Vishay VS-16F80 diode is 16 A.
This diode supports a peak reverse repetitive voltage of 800 V, making it suitable for high voltage applications.
The operating temperature range for this model is from -65°C to 175°C, allowing for versatile use in various environments.
It has a peak non-repetitive forward surge current rating of 370 A, which is essential for handling transients in electronic circuits.
The dimensions of the Vishay VS-16F80 are 31.8 mm in height, 12.69 mm in length, and 11 mm in diameter/width.
This diode is designed for screw mounting, which ensures secure installation in electronic circuits.
The maximum forward voltage drop for this model is 1.23 V, which helps minimize power losses during conduction.
It features a stud cathode configuration, which is typical for standard recovery diodes.
The VS-16F80 is suitable for applications in power supplies, industrial motor drives, and semiconductor rectification circuits.
This diode has a pin count of 2, which corresponds to its DO-203AA package type.
The series designation for this model is VS-16F, indicating its classification within Vishay's product line.
The country of origin for this diode is India.
