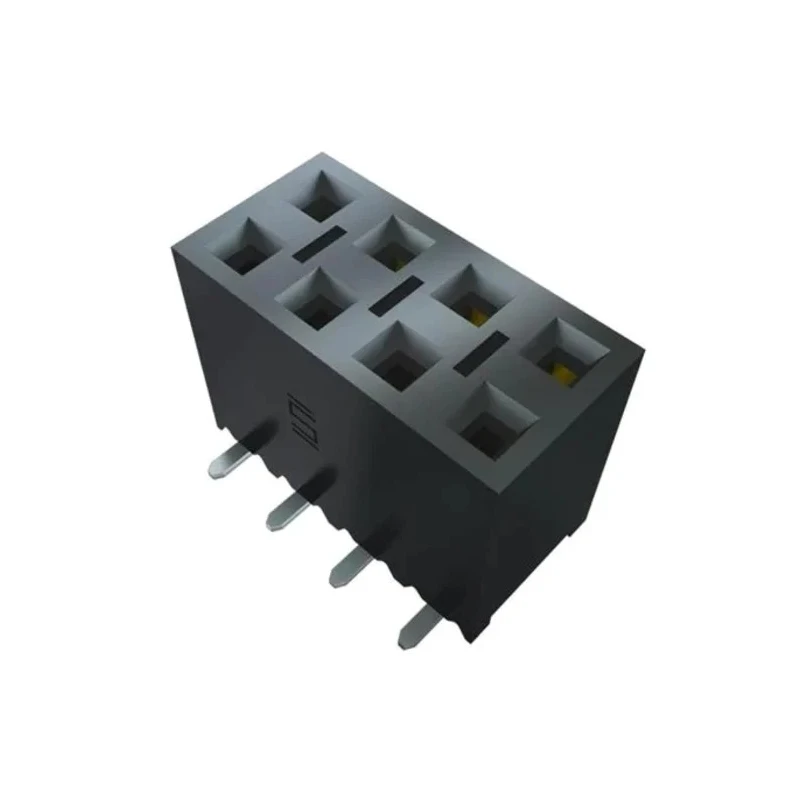

Samtec SSM Series Vertical Surface PCB Socket 8-Contact 2 Row 2.54 mm Pitch Solder SSM-104-S-DV-P-TR

Samtec SSM-104-S-DV-P-TR is a vertical surface PCB socket designed for electronic applications requiring reliable board-to-board connectivity. This model from the SSM series features an 8-contact, 2-row configuration with a 2.54 mm pitch, making it ideal for high-density circuits.

The socket housing is made from liquid crystal polymer, providing excellent thermal stability, mechanical strength, and longevity in industrial, manufacturing, and commercial electronics environments. Its contacts are fabricated from phosphor bronze, plated with selective 0.000762 mm gold on the contact area to ensure high conductivity and resistance to corrosion. The tails are matte tin plated, compatible with soldering processes.

With a rated current of 5.2 amps and voltage of 572 volts, this socket is suitable for moderate power applications and supports robust electrical connections while operating within a temperature range of -55°C to 125°C, making it suitable for demanding operating conditions.

The vertical orientation and surface mount design allow for easy integration onto printed circuit boards with 2.5 mm row pitch. The connector supports board-to-board connections, which is essential in modular electronic assemblies.

Packaged in tape and reel format, this socket is optimized for automated assembly line pick and place machines, improving manufacturing efficiency. Although there are no specific standards or approvals listed, this component meets typical industry requirements for high-quality solder type PCB sockets.

Constructed with liquid crystal polymer housing for durability and stability. Provides a 5.2A current rating suitable for moderate power applications. Phosphor bronze female contacts plated with gold ensure excellent conductivity and corrosion resistance.

Operating temperature range from -55°C to 125°C accommodates diverse industrial environments. Vertical orientation and surface mount design facilitate efficient PCB assembly processes. Row pitch of 2.5 mm and connector system supports board-to-board connection.

Available in tape and reel packaging suitable for automated pick and place equipment. Voltage rating of 572V ensures safe electrical performance. No specific standards or approvals indicated.

This Samtec PCB socket series is widely used in electronics manufacturing, industrial automation, telecommunications equipment, instrumentation, and commercial electronic products requiring compact and reliable connectors.
