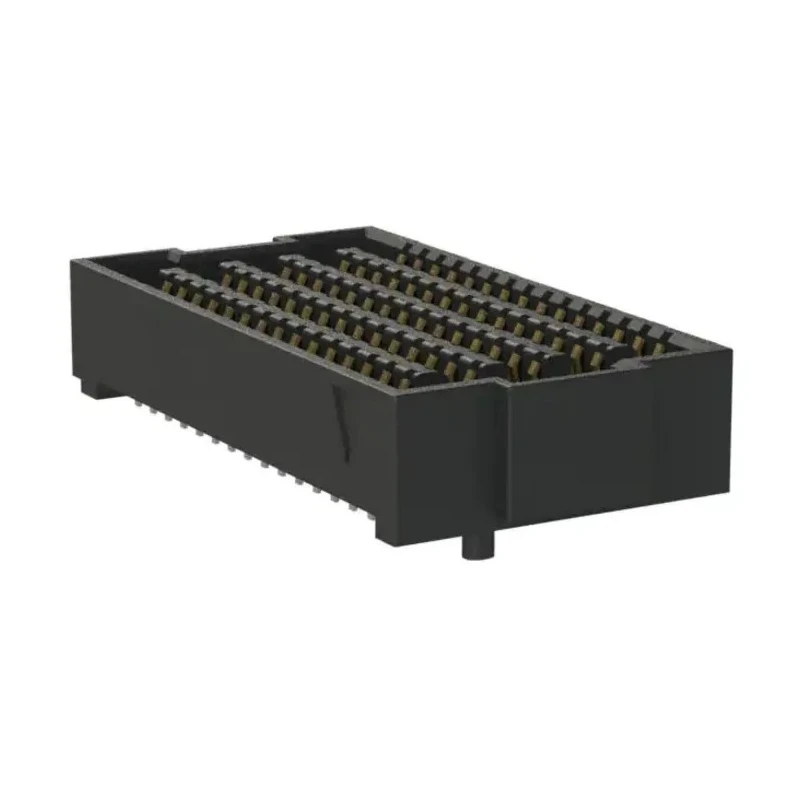

Samtec SEAF Series Straight Surface PCB Socket 180-Contact 6 Row 1.27 mm Pitch 240V SEAF-30-05.0-S-06-1-A-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 240V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 2.7A |
| Model | SEAF-30-05.0-S-06-1-A-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | SEAF |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Speed High Density Open-Pin-Field Array Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 6 |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 180 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 18.5mm |
| Row Pitch | 2.5mm |
Key Features
- Designed for surface mount with a straight orientation and 240V voltage rating.
- High density, high-speed open-pin-field array socket suitable for board-to-board connections.
- Contact plating with selective gold ensures low resistance and reliable signal integrity.
- Housing made of liquid crystal polymer for durability and heat resistance.
- Operates reliably between -55°C and 125°C ambient temperatures.
- 180 contacts arranged in 6 rows with 30 pins per row and 2.5 mm row pitch.
- Contact gender is female with copper alloy contact material for optimized conductivity.
- Stacking height of 18.5 mm supports compact PCB designs.
Product Description
Samtec SEAF-30-05.0-S-06-1-A-K-TR is a straight surface PCB socket designed to facilitate secure high-speed board-to-board connections. Featuring 180 female contacts arranged across 6 rows with a 1.27 mm pitch, this socket meets demanding electronic component applications requiring precise, reliable interfacing.
The unit's housing is crafted from robust liquid crystal polymer, affording excellent thermal and mechanical stability, ensuring consistent performance from -55°C to 125°C.
With a connector system optimized for board-to-board applications, the socket supports a voltage rating up to 240V and current capacity of 2.7A, enabling it to operate safely in various industrial, laboratory, and commercial electronic assemblies.
The 18.5 mm stacking height and 2.5 mm row pitch allow compact PCB layouts without compromising performance. The product is supplied in tape and reel packaging, suited for high-efficiency automated PCB assembly lines.
Designed for high-speed, high-density applications. 180 contacts with female copper alloy construction. Gold plating on contacts enhances conductivity and durability. Robust liquid crystal polymer housing ensures long-term reliability.
Wide operating temperature range from -55°C to 125°C. Solder termination ensures a stable mechanical and electrical connection. Suitable for board-to-board connections in electronic devices. Compact footprint with 1.27 mm pitch and 6-row configuration.
Facilitates automated assembly with tape and reel packaging.
This Samtec PCB Socket is ideal for electronics manufacturing and design industries demanding precision and reliability. Explore more industrial and electronic component connectors on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 240V, making it suitable for various electronic applications.
This model has a current capacity of 2.7A, allowing it to handle significant electrical loads in board-to-board connections.
It operates reliably between -55°C and 125°C, making it suitable for a wide range of environments.
The socket features a total of 180 contacts arranged in 6 rows, with 30 pins per row.
The contact pitch of this socket is 1.27 mm, facilitating high-density connections on PCBs.
The housing is made of liquid crystal polymer, providing durability and heat resistance.
This model uses solder termination, ensuring a stable mechanical and electrical connection.
Yes, this socket is designed for surface mount applications, making it suitable for compact PCB layouts.
The stacking height of this socket is 18.5 mm, which supports compact designs in electronic assemblies.
It supports a board-to-board connector system, ideal for high-speed and high-density applications.
The contact gender of this socket is female, which is standard for many board-to-board connections.
The contacts are plated with gold, which enhances conductivity and reliability in signal integrity.
