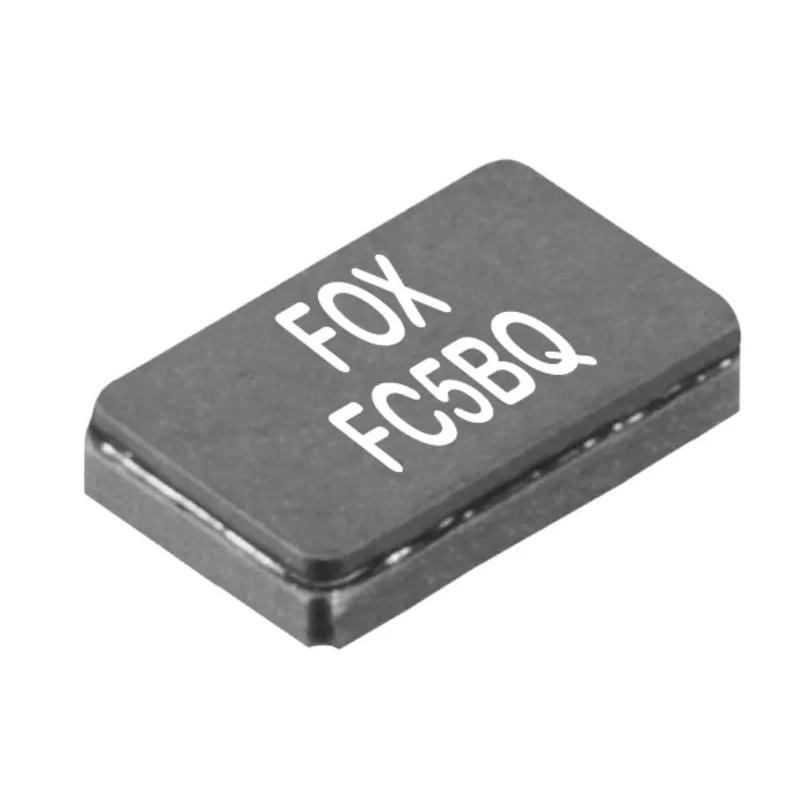

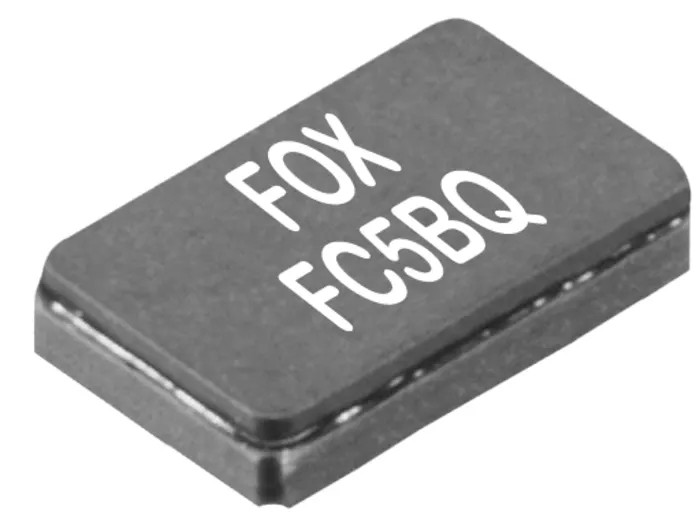

Abracon 16 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.2 mm Height x 5 mm Length x 3.2 mm Width FC5BQCCMC16.0-T1

Abracon FC5BQCCMC16.0-T1 Crystal is a 16 MHz surface mount device designed for precise frequency generation in electronic circuits. It features a 4-pin configuration with a compact form factor measuring 5 mm in length, 3.2 mm in width, and 1.2 mm in height, making it suitable for space-constrained PCB layouts.

This crystal unit offers a frequency tolerance and stability of ±30 ppm, suitable for many industrial and commercial timing applications. The device operates reliably within a temperature range of 0°C to 70°C.

Key technical features include a 20 pF load capacitance and silver termination finish, ensuring optimal electrical connectivity and durability. The FC5BQ series design includes a resin seal that protects internal components and provides stable mechanical performance.

This crystal is supplied in a tape and reel packaging format, facilitating automated pick-and-place assembly processes frequently used in manufacturing. It complies with RoHS standards, reflecting its environmentally conscious design.

Typical applications for this crystal unit include industrial electronics, consumer devices, communication equipment, and any system requiring accurate frequency control. Its small size and surface mount compatibility make it ideal for modern electronics assemblies and prototypes.

Standard frequency of 16 MHz for accurate timing applications. Surface mount package with 4 pins suitable for PCB assembly. Compact dimensions of 5 mm length, 3.2 mm width, and 1.2 mm height. Frequency tolerance and stability of ±30 ppm ensuring reliable performance.

Operating temperature range from 0°C to 70°C for standard environmental conditions. RoHS compliant construction ensuring environmental safety. Packaged in tape and reel format for automated PCB manufacturing. Part of the FC5BQ series with silver (Ag) termination finish.

Shunt capacitance approximately 5 pF contributing to stable oscillation. Explore more electronic components and Crystal Units at EnvMart for industrial, laboratory, and commercial applications.
