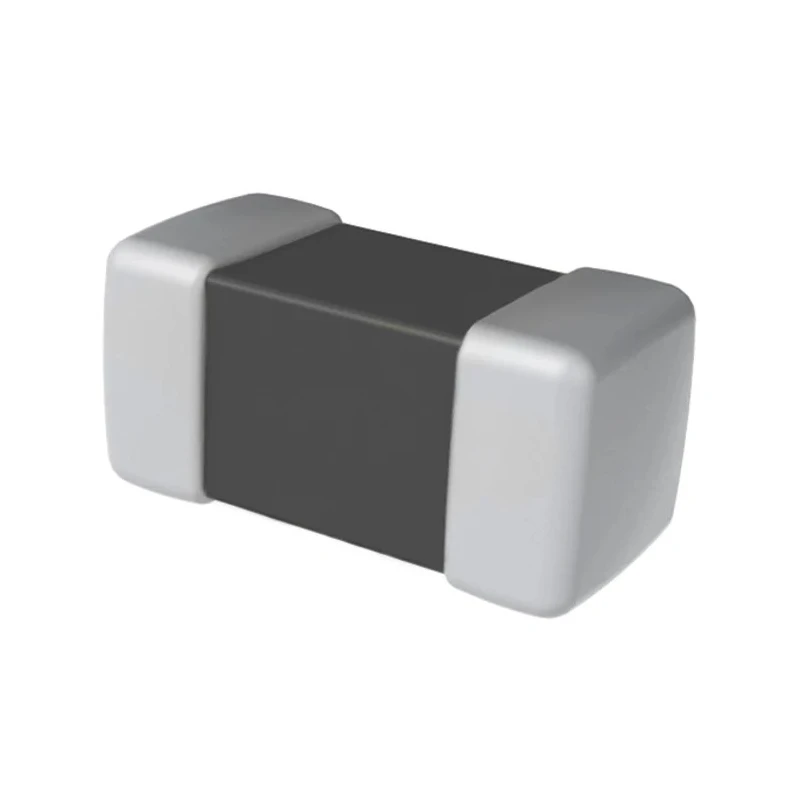

KEMET Ferrite Bead 0.031 mm Tape & Reel Chip Bead with 79.9 Ω Impedance at 25 MHz, 47 Ω at 100 MHz, 832.2 Ω Z0603C331GPWZT
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | KEMET |
| Material | Ferrite |
| Height | 0.031mm |
| Length | 0.063mm |
| Model | Z0603C331GPWZT |
| Depth | 0.031mm |
| Packaging | Tape & Reel |
| Current Rating | 6A |
| Series | Z-PWZ |
| Maximum Operating Temperature | 125°C |
| Package Type | Tape & Reel |
| Sub Type | Chip Bead |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and REACH compliant |
| Maximum DC Resistance | 0.45Ω |
| Impedance at 100 MHz | 47Ω |
| Impedance at 25 MHz | 79.9Ω |
| Impedance at 300 MHz | 832.2Ω |
| Impedance at 50 MHz | 159.6Ω |
| Impedance at 1 GHz | 1200Ω |
Key Features
- Compact 0.031 mm chip bead size suitable for space-constrained designs.
- Impedance of 79.9 Ω at 25 MHz enables effective EMI filtering.
- Wide operating temperature range from -40°C to 125°C for versatile applications.
- High current rating of 6 A to withstand substantial power loads.
- Material composed of ferrite ensuring reliability and durability.
- RoHS and REACH compliant, meeting environmental standards.
- Low maximum DC resistance of 0.45 Ω minimizes power loss.
- Available in tape & reel packaging for automated assembly processes.
Product Description
The KEMET Z0603C331GPWZT ferrite bead is a high impedance chip bead designed for EMI filtering and noise suppression in electronic and power line circuits. Measuring 0.031 mm in height and depth with a length of 0.063 mm, this ferrite material component offers impedance values of 79.9 Ω at 25 MHz, 159.6 Ω at 50 MHz, 47 Ω at 100 MHz, 832.2 Ω at 300 MHz, and up to 1200 Ω at 1 GHz, making it highly effective across a broad frequency range.
Rated for a continuous current of 6 amps, it supports applications demanding high current loads in consumer electronics and industrial digital devices. Its low maximum DC resistance of 0.45 Ω ensures efficient power handling and minimal voltage drop.
Engineered to operate within a temperature range from -40°C to 125°C, this ferrite bead is compliant with RoHS and REACH environmental regulations, ensuring safe integration into modern electronic assemblies. Its tape & reel packaging format is optimized for automated production lines, improving manufacturing efficiency.
Commonly utilized in circuit designs requiring high impedance and large currents, it is ideal for waveform correction and noise suppression in digital mobile equipment that emphasizes low power consumption. This product belongs to the Z-PWZ series, providing reliable and consistent electrical performance in critical EMI filter applications.
Compact form factor ideal for space-limited layouts. High impedance values reduce radiated noise effectively. Wide operating temperature extends usability across environments. Complies with important environmental standards for safety.
Robust construction ensures long-term reliability in circuits. Optimizes digital signal integrity with low stray capacitance. Suitable for industrial, laboratory, HVAC, manufacturing, and commercial electronics. Tape & reel packaging supports seamless automation in production.
Material: Ferrite. Ideal for power line EMI filtering and digital electronic noise suppression. Discover the comprehensive range of KEMET Ferrite Beads and related EMI filtering components available on EnvMart for your industrial and electronic manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this ferrite bead is 79.9 Ω at 25 MHz.
This model has a maximum current rating of 6 A.
It operates within a temperature range of -40°C to 125°C.
The maximum DC resistance is 0.45 Ω, which minimizes power loss.
It is available in tape & reel packaging, which is optimized for automated assembly processes.
The impedance values are as follows: 79.9 Ω at 25 MHz, 47 Ω at 100 MHz, 159.6 Ω at 50 MHz, 832.2 Ω at 300 MHz, and 1200 Ω at 1 GHz.
This component is made of ferrite, ensuring reliability and durability in applications.
This model belongs to the Z-PWZ series, designed for effective EMI filtering.
It is commonly utilized in circuit designs requiring high impedance and large currents, particularly in consumer electronics and industrial digital devices.
It is compliant with RoHS and REACH environmental regulations, ensuring safe integration into electronic assemblies.
The dimensions are 0.031 mm in height and depth, and 0.063 mm in length.
It is designed for EMI filtering and noise suppression in electronic and power line circuits, optimizing digital signal integrity.
