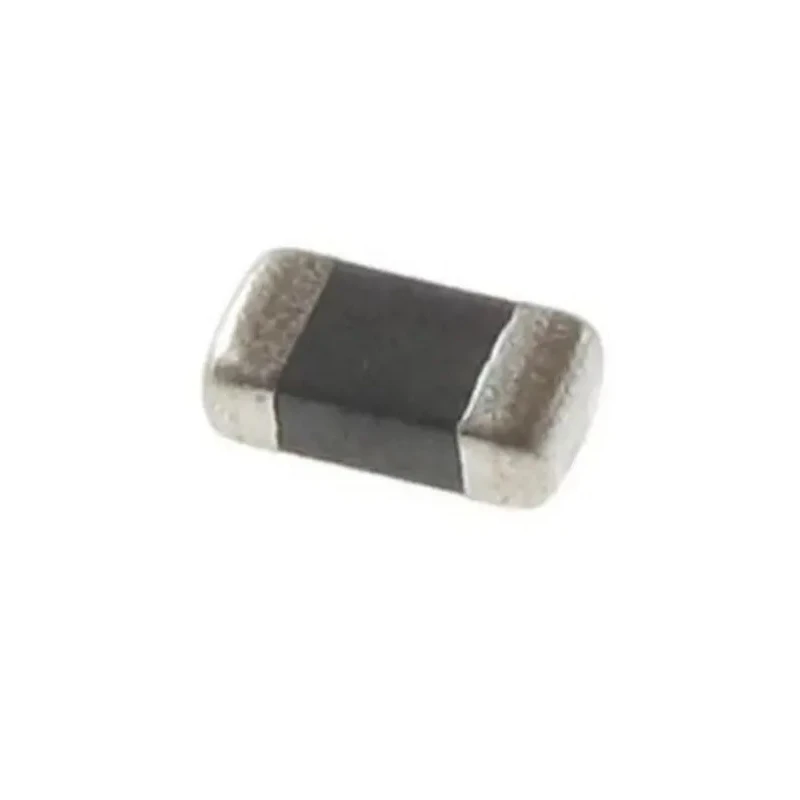

Murata Chip Ferrite Bead Surface Mount 0805 Package 0.85 mm Height 33.3 Ω @ 25 MHz 60 Ω @ 100 MHz BLM21PG600BH1D

Free Delivery in India | Lowest Global Shipping Charges

Murata Chip Ferrite Bead Surface Mount 0805 Package 0.85 mm Height 33.3 Ω @ 25 MHz 60 Ω @ 100 MHz BLM21PG600BH1D

Name: Murata Chip Ferrite Bead Surface Mount 0805 Package 0.85 mm Height 33.3 Ω @ 25 MHz 60 Ω @ 100 MHz BLM21PG600BH1D
Brand: Murata
SKU: 171430
Price: 20.22 USD
Availability: InStock



Category Ferrite Beads Brand Murata Condition New

Specifications

Country of Origin	Japan
Brand	Murata
Material	Ferrite
Height	0.85mm
Length	2mm
Model	BLM21PG600BH1D
Depth	1.25mm
Packaging	Tape & Reel
Mount Type	Surface
Current Rating	10mA
Series	BLM21
Maximum Operating Temperature	150°C
Package Type	0805
Sub Type	Chip Ferrite Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	REACH, RoHS
Maximum DC Resistance	20mΩ
Impedance at 100 MHz	60Ω
Automotive Standard	AEC-Q200
Impedance at 25 MHz	33.3Ω
Impedance at 300 MHz	76Ω
Impedance at 50 MHz	46.2Ω
Impedance at 1 GHz	73.5Ω

Key Features

Compact 0805 package with 0.85 mm height is suitable for surface mounting.
Impedance ratings of 33.3 Ω @ 25 MHz and 60 Ω @ 100 MHz ensure reliable noise suppression.
Maximum DC resistance of 20 mΩ supports high current applications up to 10 mA.
Operating temperature range from -55 °C to 150 °C enables use in demanding environments.
Nickel barrier external electrodes provide excellent solder heat resistance and durability.
Complies with REACH and RoHS standards for environmental compliance.
Automotive grade AEC-Q200 certification ensures high reliability in automotive electronic systems.
Manufactured in Japan with ferrite material optimized for low resonance and stable performance.

Product Description

Murata BLM21PG600BH1D chip ferrite bead is a surface-mount component in 0805 package, with a compact height of 0.85 mm, designed for EMI suppression in electronic circuits. This ferrite bead exhibits impedance of 33.3 Ω at 25 MHz and 60 Ω at 100 MHz, effectively filtering high-frequency noise while maintaining signal integrity.

The bead’s design allows it to behave nearly as a resistor over noise frequency ranges, reducing resonance and preventing distortion of signal waveforms. Its low maximum DC resistance of 20 mΩ supports operation at current ratings up to 10 mA, making it suitable for DC power lines and EMI suppression in high current circuits.

Constructed with ferrite material and nickel barrier structure for external electrodes, this component offers superior solder heat resistance and stability under thermal cycling. It operates reliably within a wide temperature range from -55 °C to 150 °C, fulfilling requirements for both commercial and harsh industrial environments.

Murata’s BLM21PG600BH1D ferrite bead complies with REACH and RoHS environmental directives and meets the automotive industry standard AEC-Q200, making it suitable for use in automotive electronics, laboratory equipment, industrial automation, and consumer electronics applications.

The component’s small 0805 package size optimizes board space without compromising filtering performance. Its proven design ensures minimum impact on signal quality while providing effective EMI mitigation on DC power lines and signal paths.

Compact 0805 surface mount package allows easy PCB integration. High impedance values provide effective EMI noise filtering. Low DC resistance ensures suitability for high current circuits. Wide operating temperature range supports various industrial conditions.

Nickel barrier electrodes enhance soldering durability and performance. Certified to environmental and automotive standards for safety and reliability. Manufactured in Japan with high-quality ferrite material. Ideal for industrial, automotive, laboratory, and consumer electronics applications.
